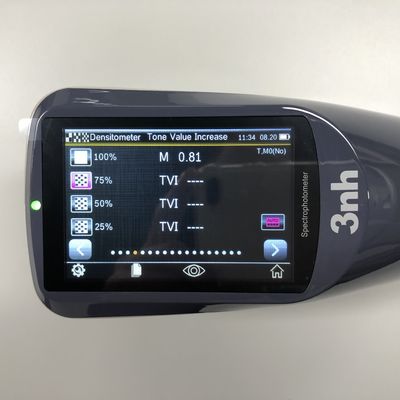

CIE LAB 2mm Aperture Color Difference Spectrophotometer 3nh YD5050
|Measurement Geometry||45/0||Spectral Separation Device||Concave Grating|
|Detector||256 Image Element Double Array CMOS Image Sensor||Wavelength Range||400-700nm|
|Density Standards||ISO Status A, E, I, T||Color Spaces||CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB|
2mm Aperture Color Difference Spectrophotometer,
CIE LAB Color Difference Spectrophotometer
|Grating Spectrophotometer Densitometer|
|Model||YD5050 Spectrophotometer Densitometer|
|Measurement Geometry||45/0(45 ring-shaped illumination, 0 degree viewing angle);, ISO 5-4,CIE No.15|
|Features||high accuracy spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture 2mm,4mm,8mm.|
|Light Source||Combined LED Light, UV Light|
|Spectral separation device||Concave Grating|
|Detector||256 Image Element Double Array CMOS Image Sensor|
|Measurement Conditions||Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
|Density Standards||ISO Status A, E, I, T|
|Density index||Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray scale, density scanning|
|Measurement aperture||Customized one aperture:2mm,4mm,8mm optional|
|Color Spaces||CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB|
|Color Difference Formula||ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)|
|Other Colorimetric Index||WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
MI (Metamerism Index),Opacity,
|Measurement Time||About 1.5s|
|Repeatability||Density: Within 0.01 D|
|Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)|
|Inter-instrument Error||Within ΔE*ab 0.18 (Average for 12 BCRA Series II color tiles)|
|Measurement mode||Single Measurement, Average Measurement(2-99)|
|Power source||Li-ion battery. 5000 measurements within 8 hours|
|Illuminant Life Span||5 years, more than 3 million times measurements|
|Display||3.5-inch TFT color LCD, Capacitive Touch Screen|
|Interface||USB, Bluetooth 4.0|
|Data memory||20000 pcs|
Simplified Chinese, English, Traditional Chinese
|Working Environment||Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m|
|Storage Environment||Temperature: -20~50℃; Humidity: 0~85% (No Condensation)|
|Standard Accessory||Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover.Polarization filter box|
|Optional Accessory||Micro Printer,Locating Plate|
|Notes: The specifications are subject to change without notice.|
3nh & tilo is a very professional manufacturer from China for 22 years, and mainly produces colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc.
Comparasion with Other brands
For color and glossy measurement, there are three famous companes, Xrite from USA, Konimica Minolta from Japan, BYK from German, but now we, 3nh, are also famous all over the world. With our own R&D team, we focus on color for 21 years, and we have many models to compare with X-rite Konica Minolta BYK Machines.
All in all, First,at the some level, the price for our machine is much lower but performance is similar even better when compare withe Minolta,X-rite and BYK’s instrument; Second, for our partner, we normally give 2 years warranty; Third, if there are something wrong with 3nh machine, within the warranty, the repair fee is free while without the warranty, we only charge some cost price for it, less than RMB1000.But for Minolta,X-rite, BYK, the repair fee normally much than USD1000. And we 3nh offer the lifespan maintenance for all customers. Welcome customers all over the world to visit and order 3nh products in Shenzhen, China.
Frequently Asked Questions
1. Can the YS4560 spectrophotometer be equivalent to any models of world famous brands?
Answer: Yes, our YS3060 is equivalent to the color measurement function of BYK 6801.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
