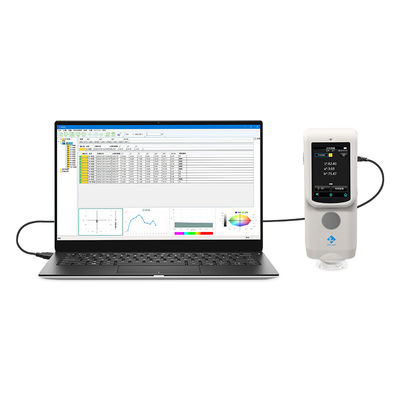

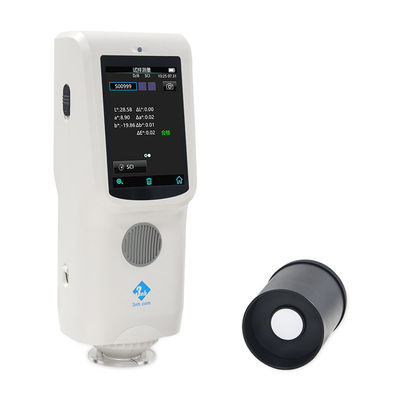

8mm Aperture d/8 3nh TS7020 Portable Spectro Colorimeter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOptical Geometry | D/8 | Wavelength | 400-700nm |
---|---|---|---|
Repeatibility | DeltaE ≤ 0.08 | Inter-instrument Error | DeltaE ≤ 0.4 |
Aperture | 8mm | Sphere Size | 40mm |
High Light | 8mm Aperture Portable Spectro Colorimeter,D/8 Portable Spectro Colorimeter,3nh TS7020 |
Model | TS7036 | TS7030 | TS7020 | TS7010 |
Optical Geometry |
D/8(diffused illumination, 8-degree viewing angle) GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
D/8(diffused illumination, 8-degree viewing angle) SCI Mode Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
||
Characteristic |
double apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
single apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries | Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries | |
Integrating Sphere Size | Φ40mm | |||
Light Source | Combined full spectrum LED light source, UV light source | Combined full spectrum LED light source | ||
Spectrophotometric Mode | Flat Grating | |||
Senso | Silicon photodiode array (double row 32 groups) | Silicon photodiode array (double row 24 groups) | ||
Wavelength Range | 400~700nm | |||
Wavelength Interval | 10nm | / | ||
Semiband Width | 10nm | |||
Measured Reflectance Range | L:0~120; reflectivity:0~200% | L:0~100; reflectivity:The reflectivity can be measured at 3 specific wavelengths specified by the user (default: 440nm, 550nm, 600nm) | L:0~100; reflectivity:The reflectivity can be measured at 1 specific wavelengths specified by the user (default: 550nm) | |
Measuring Aperture | Dual Apertures:MAV:Φ8mm/Φ10mm; SAV:Φ4mm/Φ5mm | Single Apertures:Φ8mm/Φ10mm | Φ8mm | |
Specular Component | SCI/SCE | SCI | ||
Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2) |
CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy, Munsell(C/2) |
CIE LAB,XYZ,Yxy,LCh | |
Color Difference Formula |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*00, DINΔE99 |
ΔE*ab,ΔE*94,ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*00, DINΔE99 |
ΔE*ab,ΔE*00 | |
Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM 313), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search |
/ | ||
Observer Angle | 2°/10° | 10° | ||
Illuminant |
D65,A,C,D50,D55,D75,F1,F2(CWF),F3, F4,F5,F6,F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30) |
D65,A,C,D50,F2(CWF),F7(DLF), F10(TPL5),F11(TL84), F12(TL83/U30) |
D65,A,F2(CWF) | |
Displayed Data |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
Reflectivity (the user specifies the reflectivity at 3 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset | Reflectivity (the user specifies the reflectivity at 1 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset | |
Displayed Accuracy | 0.01 | Display 0.1, storage 0.01 | ||
Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) | About 1.5s | ||
Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.06 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.08 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.1 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles) |
MAV/SCI, Within ΔE*ab 0.4 (Average for 12 BCRA Series II color tiles) |
||
Measurement Mode | Single Measurement, Average Measurement(2-99times) | |||
Locating Method | Camera Locating,stabilizer cross position | Stabilizer cross position | ||
Dimension | L*W*H=81X71X214mm | |||
Weight | About 460g | |||
Battery | Li-ion battery, 6000 measurements within 8 hours | |||
Illuminant Life Span | 5 years, more than 3 million times measurements | |||
Display | 3.5-inch TFT color LCD, Capacitive Touch Screen | |||
Data Port | USB,Bluetooth 5.0 | USB | ||
Data Storage | Standard 1000 Pcs, Sample 30000 Pcs(One data is able to include SCI/SCE) | Standard 1000 Pcs, Sample 20000 Pcs(One data is able to include SCI/SCE) | Standard 500 Pcs, Sample 10000 Pcs | |
Language | Simplified Chinese, English, Traditional Chinese | |||
Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m | |||
Storage Environment | -20~50℃, 0~85%RH (no condensing) | |||
Standard Accessory | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture | |
Optional Accessory | USB Micro Printer, Powder Test Box,Bluetooth Micro Printer | USB Micro Printer, Powder Test Box, | ||
Notes | Technical parameters are only for reference, subject to the actual sale of the product |
