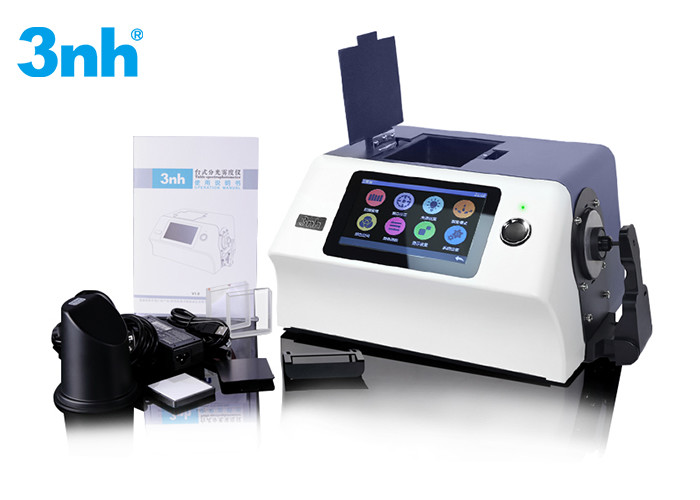

Plastic Masterbatch D/0 Benchtop Desktop Spectrophotometer 3nh YS6060

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RoHS
Model Number YS6060
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 380*310*210mm, 18KG, Aluminum Box Package
Delivery Time 5-8 Days
Payment Terms T/T
Supply Ability 1000 Unit per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Optical Geometry D/8 & D/0 Wavelength 360-780nm
Repeatibility DeltaE ≤ 0.03 Inter-instrument Error DeltaE ≤ 0.15
Aperture 25.4mm & 15mm & 8mm & 4mm Sphere Size Φ154mm
High Light

Plastic Masterbatch Benchtop Desktop Spectrophotometer


D/0 Benchtop Desktop Spectrophotometer


3nh YS6060 Spectrophotometer

Leave a Message
Product Description

1. Product Profile


YS6060 benchtop spectrophotometer is a high-end precise color measurement instrument for surface color measurement and management, which can be widely applied in all kinds of industries, such as plastics and metals, paint and coating, furniture and wood, ink, printing and packaging, pharmaceuticals, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry.


Built for performance and reliability, the benchtop Spectrophotometer YS6060 is a top-of-the-line measurement instrument designed to precisely evaluate the color and appearance of opaque, transparent, translucent, and fluorescent samples. This high precision, versatile spectrophotometer is used to evaluate, reproduce, and help control the color and appearance of samples in a more effective, streamlined process. Its advanced capabilities and unwavering performance enable users to formulate and match color quality standards more efficiently, maintain consistency in each batch of material, and help communicate color seamlessly internally and throughout the supply chain. This makes the YS6060 ideal for color analysis, formulation, and quality control inspections within laboratory and manufacturing environments.


In one word, YS6060 bench-top spectrophotometer can be perfectly applied in any place that requires color control or color management.


2. Detailed Technical Parameter / Specification Form


Technical Parameter Items YS6060 Benchtop Color Measuring Spectrophotometer
Product Category Optical Electronic Digital Color Test Equipment
Product Name Benchtop Color Measurement Spectrophotometer
Optical Geometry

Reflection: d/8°

Transmission: d/0°

Measuring Apertures

Reflection: ∅30mm/∅25.4mm, ∅18mm/∅15mm, ∅10mm/∅8mm, ∅6mm/∅4mm

Transmission: ∅30mm/∅25.4mm

Note: Instrument can automatically identify the apertures after switched.

Color Spaces CIE LAB, XYZ, Yxy, LCh, CIE LUV, Munsell, s-RGB, HunterLab, βxy, DIN Lab99
Color Difference Formulas ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DIN ΔE99, ΔE(Hunter)
Repeatability Error

Reflection: ΔE*ab≤0.01

Transmission: ΔE*ab≤0.02

Inter-instrument Error ΔE*ab≤0.12
Other Colorimetric Index

WI (ASTM E313, CIE/ISO, AATCC, Hunter),

YI (ASTM D1925, ASTM 313),


MI (Metamerism Index), Haze, Transmittance Rate,

Staining Fastness, Color Fastness, Color Strength,

Opacity, Gardner Index, Pt-Co Index, 555 Index, 8-degree Glossiness

Information Displayed Spectrogram/Data, Chromaticity Diagram/Values, Color Difference Values/Graph, Pass/Fail Result, Color Simulation, Color Offset/Deviation Direction
Viewing Angle 2° & 10°
Illuminating Lamps Combined LED Lamps, UV Lamps
Lamps Life-span 5 Years, more than 3 Million times of measurements.
Integrating Sphere Size ∅154mm
Wavelength Range 360nm - 780nm, 400nm Cut-off, 420nm Cut-off
Wavelength Pitch 10nm
Semiband Width 10nm
Reflectance Range 0∼200%
Illuminants D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, UV
Sensor 256 Image Element Double Array CMOS Image Sensor
Spectroscope Concave Grating
Measurement Time 2.4s (About 5s for both SCI and SCE)
Data Storage Capacity 5000 pcs of Standards, 40000 pcs of Samples. (Once piece of data includes both SCI and SCE)
Data Transmission Port USB & Bluetooth & Printing Serial Port
PC Terminal Software SQCX (for free)
Display Screen 7 inches TFT Capacitance Screen-touch Display
Language Built-in English, Chinese. (If need German, French, Spanish, Italian or Russia, please specify)
Power Supply DC 24V, 3A Power Adapter
Working Environment Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation)
Storage Environment Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation)
Standard Accessories White and Black Calibration Board, Sample Holder, Φ4mm, Φ8mm, Φ15mm, Φ25.4mm Aperture, Power Adapter, USB Cable, PC Software SQCX, User Guide.
Optional Accessories Mini Thermal Printer
Weight 9.6KG
Dimension 370*300*200mm


3. Detailed Introduction to Instruments


3.1. High configuration of hardware: 7 inches colorful capacitance screen-touch display, showing more comprehensive colorimetric indexes in one screen, making your operation more convenient and freer, checking color spectrum reflectance rate data and graph very soon.


3.2. Dual Array 256 Image Element CMOS detector, making it more sensitive to colors.


3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durability which makes the instrument more stable.


3.4. There is also an independent light source inspector built-in to ensure the light sources reliable.


3.5. UV light source, can measure fluorescent colors more accurately.




3.6. Pass/Fail test result indication, help you to decide if the color of the sample meets the requirement very promptly.


3.7. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.


3.8. 360-780nm wavelength range, complete cover the colors in visible light spectrum range.


3.9. SCI+SCE or SPIN+SPEX, can be measured simultaneously by pressing the button one time.




3.10. Reflection D/8 Geometry and Transmission D/0 geometry, the optical geometry which are most widely adopted in color measuring instruments. Reflection D/8 Geometry is for measuring colors of non-transparent targets; Transmission D/0 Geometry is for measuring colors of transparent targets, like film and liquids.




3.11. Multiple measuring apertures: 4mm, 8mm, 15mm, 25.4mm, perfectly measure the color of different kinds of targets from small ones to big ones.




3.12. All kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet all the requirements for color measurement and color analysis.


3.13. Include all kinds of light source types.






Colorimetric Index.jpg


Light Sources.jpg


3.14. Multiple color measurement modes: Quality Mode, Sample Mode, Average Mode and Continuous Mode, meet more color management situations.


3.15. Configured with a PC terminal software SQCX, more extended powerful functions for color data management can definitely facilitate your color management work.


3.16. USB, RS232 and Bluetooth4.0, implement data transmission more convenient and quicker.


3.17. Built-in camera for aiming at the target to be measured precisely.






4. Company Profile


YS6060 Color Testing Spectrophotometer was developed and manufactured independently by Shenzhen 3nh/ThreeNH Technology Co., LTD. which is a state high-tech company who has been specializing in researching and developing, manufacturing and marketing surface color measuring instruments and equipment, gloss measurement meters and also color matching light cabinets for over 22 years, since founded in 1998.


We warmly welcome customers, partners and friends to visit our company and factory in Shenzhen, China.




GW6A9235 1231.jpg



5. Frequently Asked Questions


1. Can YS6060 spectrophotometer be equivalent to any models of world famous brand?

Answer: Yes, our YS6060 is equivalent to CM-3700A of KONICA MINOLTA and Ci7800 of X-rite and Datacolor 800.


2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!


3. What's your main market?
Answer: We sell to the global market.


4. How long is your delivery time?
Answer: Generally, it is 1-3 working days after the payment confirmed.


5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. The first suggested payment method is via Alibaba platform here.


6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
