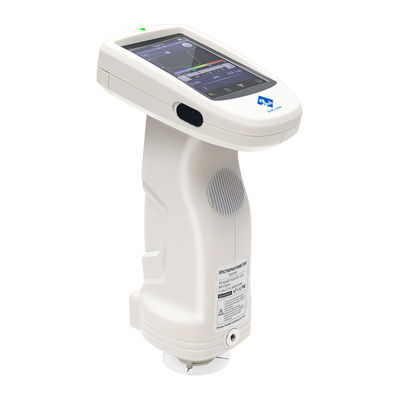

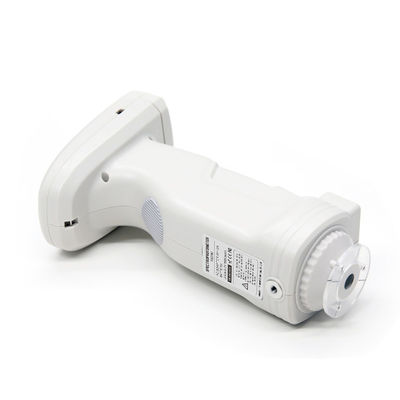

Handheld 3nh TS7700 D/8° Color Spectrum Analyzer 8mm Aperture

Handheld 3nh TS7700 D/8° Color Spectrum Analyzer 8mm Aperture

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh
Certification: CE, TUV, FCC, RoHS, ISO9001
Model Number: TS7700

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: Please send inquiry
Packaging Details: 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time: 2-5 Days
Payment Terms: T/T
Supply Ability: 500 Units per Month
Get Best Price Contact Now

Detail Information

Optical Geometry: D/8° SCE/SCI: SCE & SCI
UV Light Source: Yes Repeatibility: ΔE*≤0.02
Inter-instrument Agreement: ΔE*≤0.15 Measuring Aperture: 8mm & 4mm
High Light:

D/8° Color Spectrum Analyzer

,

Color Spectrum Analyzer 8mm Aperture

,

3nh TS7700 Spectrophotometer

Product Description

3nh TS7700 spectrophotometer color spectrum analyzer to replace Konica Minolta CM-700D

Product Description

TS7700 handheld spectrophotometer is a high-end precise color measurement instrument for surface color measurement and management, which can be widely applied in all kinds of industries, such as plastics and metals, paint and coating, furniture and wood, ink, printing and packaging, pharmaceuticals, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry.



Built for performance and reliability, the Spectrophotometer TS7700 is a top-of-the-line measurement instrument designed to precisely evaluate the color and appearance of opaque and fluorescent samples. This high precision, versatile spectrophotometer is used to evaluate, reproduce, and help control the color and appearance of samples in a more effective, streamlined process. Its advanced capabilities and unwavering performance enable users to formulate and match color quality standards more efficiently, maintain consistency in each batch of material, and help communicate color seamlessly internally and throughout the supply chain. This makes the TS7700 ideal for color analysis, formulation, and quality control inspections within laboratory and manufacturing environments.



Details



Model TS7700
Optical Geometry Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)


SCI (specular component included)/SCE (specular component excluded) ;

Include UV / excluded UV light source

Characteristics Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,double apertures for accurate color analysis and transmission in laboratory
Application

It is used for precise color measurement and quality control in plastic electronics, paint

and ink, textile and garment printing and dyeing, printing, ceramics and other industries,

and for fluorescent sample measurement.

Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Sensor Silicon photodiode array (double row 40 groups)
Wavelength Range 400~700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0-200%
Measuring Aperture MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component SCI&SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index

WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),Metamerism

Index MI,Staining Fastness, Color Fastness, Color Strength, Opacity,8° Glossiness,555 tone classification

Observer Angle 2°/10°
Illuminant

D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),

F12(TL83/U3

Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability

Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm:

within 0.18%)Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white

calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error MAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Camera Locating,stabilizer cross position
Dimension L*W*H=129X76X217mm
Weight Approx 600g
Battery Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Displayed Data 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth 4.2
Data Storage Standard 1000 Pcs, Sample 30000 Pcs
Language Simplified Chinese, English, traditional Chinese
Operating Environment 0~40, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory

Power Adapter, User Guide, PC Software(Download from office website),

USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm

flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture

Optional Accessory Micro Printer, Powder Test Box
NotesThe specifications are subject to change without notice.
Features

3.1. High configuration of hardware: 3.5 inches colorful capacitance screen-touch display, showing more comprehensive colorimetric indexes in one screen, making your operation more convenient and freer, checking color spectrum reflectance rate data and graph very soon.



3.2. Dual row 40 groups Silicon Photodiode Array detector, making it more sensitive to colors.



3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durability which makes the instrument more stable.



3.4. UV light source, can measure fluorescent colors more accurately.



3.5. Pass/Fail test result indication, help you to decide if the color of the sample meets the requirement very promptly.



3.6. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.



3.7. SCI+SCE (SPIN+SPEX), can be measured simultaneously by pressing the button one time.



3.8. Reflection D/8 Geometry, the optical geometry which are most widely adopted in color measuring instruments.



3.9. Two measuring apertures: 4mm and 8mm, can measure the color of different kinds of targets from small ones to big ones.



3.10. All kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet all the requirements for color measurement and color analysis.



3.11. Include all kinds of light source types.



3.12. Configured with a PC terminal software SQCX, more extended powerful functions for color data management can definitely facilitate your color management work.



3.13. USB and Bluetooth4.0, implement data transmission more convenient and quicker.



3.14. Built-in camera for aiming at the target to be measured precisely.

3nh TS7700 spectrophotometer color spectrum analyzer to replace Konica Minolta CM-700D3nh TS7700 spectrophotometer color spectrum analyzer to replace Konica Minolta CM-700D3nh TS7700 spectrophotometer color spectrum analyzer to replace Konica Minolta CM-700D3nh TS7700 spectrophotometer color spectrum analyzer to replace Konica Minolta CM-700D

Certifications

certificate-1

certificate-2

Application

3nh colorimeter spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
