SCE 3nh Portable Precise Spectrophotometer TS7700 700nm
|Optical Geometry||D/8°||SCE/SCI||SCE & SCI|
|UV Light Source||Yes||Repeatibility||ΔE*≤0.02|
|Inter-instrument Agreement||ΔE*≤0.15||Measuring Aperture||8mm & 4mm|
SCE Portable Precise Spectrophotometer,
3nh Portable Precise Spectrophotometer,
700nm Handheld Color Measurement Spectrophotometer
1. Product Profile
TS7700 handheld spectrophotometer is a high-end precise color measurement instrument for surface color measurement and management, which can be widely applied in all kinds of industries, such as plastics and metals, paint and coating, furniture and wood, ink, printing and packaging, pharmaceuticals, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry.
Built for performance and reliability, the Spectrophotometer TS7700 is a top-of-the-line measurement instrument designed to precisely evaluate the color and appearance of opaque and fluorescent samples. This high precision, versatile spectrophotometer is used to evaluate, reproduce, and help control the color and appearance of samples in a more effective, streamlined process. Its advanced capabilities and unwavering performance enable users to formulate and match color quality standards more efficiently, maintain consistency in each batch of material, and help communicate color seamlessly internally and throughout the supply chain. This makes the TS7700 ideal for color analysis, formulation, and quality control inspections within laboratory and manufacturing environments.
In one word, TS7700 color measurement spectrophotometer can be perfectly applied in any place that requires color control or color management.
2. Detailed Technical Parameter / Specification Form
|Technical Parameter Items||TS7700 Handheld Color Measuring Spectrophotometer|
|Product Category||Optical Electronic Digital Color Testing Equipment|
|Product Name||Handheld Color Measurement Spectrophotometer|
|Measuring Apertures||∅10mm/∅8mm + ∅5mm/∅4mm|
|Color Spaces||CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99, Muncell(C/2)|
|Color Difference Formulas||ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DIN ΔE99, ΔE(Hunter)|
|Other Colorimetric Index||
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength,
Opacity, 555 Index, 8-degree Glossiness
|Information Displayed||Spectrogram/Data, Chromaticity Diagram/Values, Color Difference Values/Graph, Pass/Fail Result, Color Simulation, Color Offset/Deviation Direction|
|Viewing Angle||2° & 10°|
|Illuminating Lamps||Combined Full Spectrum LED Lamps, UV Lamps|
|Lamps Life-span||5 Years, more than 3 Million times of measurements.|
|Integrating Sphere Size||∅40mm|
|Wavelength Range||400nm - 700nm|
|Illuminants||D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), UV|
|Sensor||Silicon Photodiode Array (Dual Row 40 Groups )|
|Measurement Time||1.5s (About 5s for both SCI and SCE)|
|Data Storage Capacity||1000 pcs of Standards, 30000 pcs of Samples. (Once piece of data includes both SCI and SCE)|
|Data Transmission Port||USB & Bluetooth|
|PC Terminal Software||SQCX (for free)|
|Display Screen||3.5 inches TFT Capacitance Screen-touch Display|
|Language Built-in||English, Chinese. (If need German, French, Spanish, Italian or Russia, please specify)|
|Built-in Battery||6000 times measurements in 8 hours.|
|Working Environment||Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation)|
|Storage Environment||Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation)|

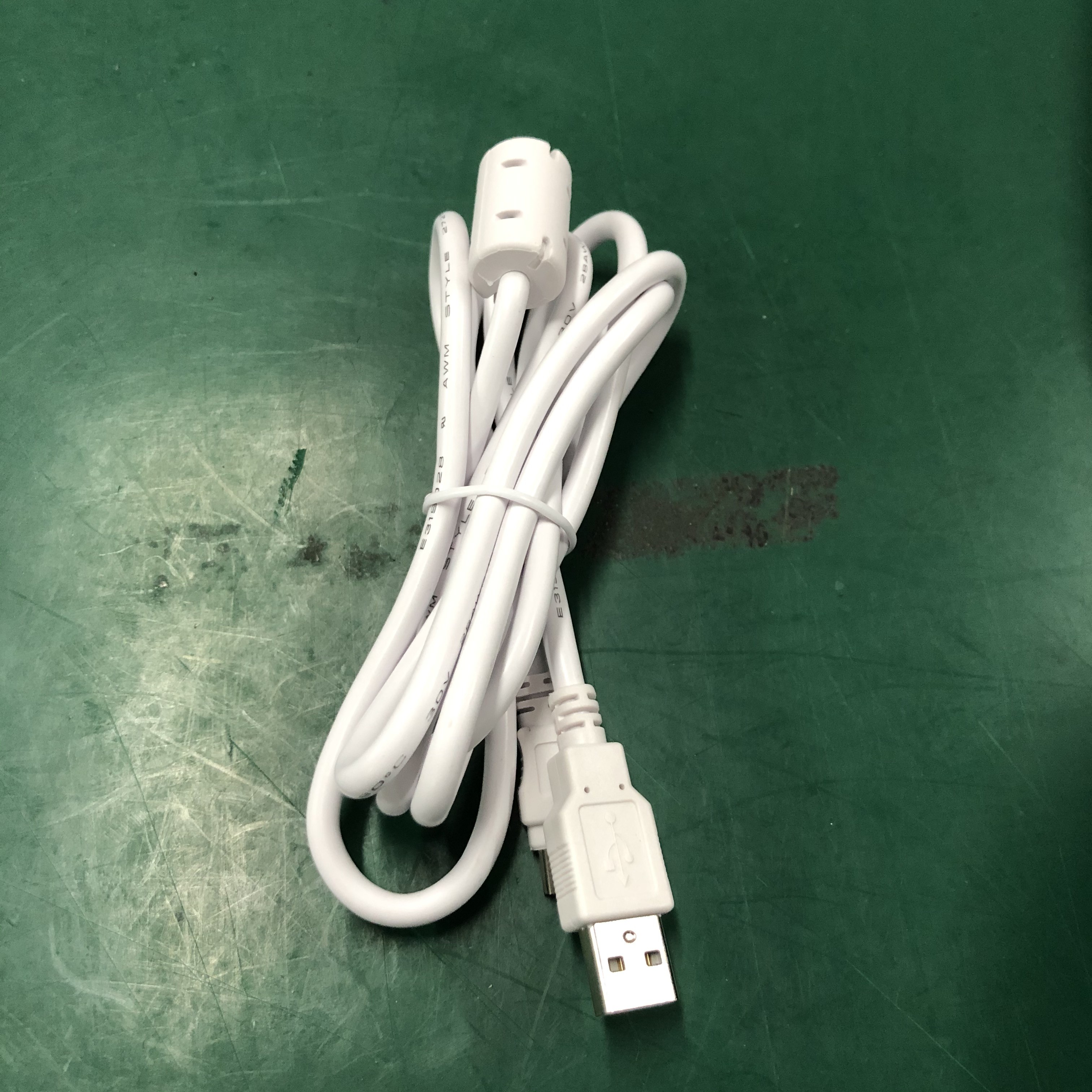

|Standard Accessories||White and Black Calibration Cavity, Φ4mm Flat+Tip, Φ8mm Flat+Tip Aperture, Power Adapter, USB Cable, PC Software SQCX, User Guide, Protective Cover, Wrist Strap.|
|Optional Accessories||Mini Thermal Printer, Powder Test Box|
3. Detailed Introduction to Instruments
3.1. High configuration of hardware: 3.5 inches colorful capacitance screen-touch display, showing more comprehensive colorimetric indexes in one screen, making your operation more convenient and freer, checking color spectrum reflectance rate data and graph very soon.
3.2. Dual row 40 groups Silicon Photodiode Array detector, making it more sensitive to colors.
3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durability which makes the instrument more stable.
3.4. UV light source, can measure fluorescent colors more accurately.
3.5. Pass/Fail test result indication, help you to decide if the color of the sample meets the requirement very promptly.
3.6. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.
3.7. SCI+SCE (SPIN+SPEX), can be measured simultaneously by pressing the button one time.
3.8. Reflection D/8 Geometry, the optical geometry which are most widely adopted in color measuring instruments.
3.9. Two measuring apertures: 4mm and 8mm, can measure the color of different kinds of targets from small ones to big ones.
3.10. All kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet all the requirements for color measurement and color analysis.
3.11. Include all kinds of light source types.
3.12. Configured with a PC terminal software SQCX, more extended powerful functions for color data management can definitely facilitate your color management work.
3.13. USB and Bluetooth4.0, implement data transmission more convenient and quicker.
3.14. Built-in camera for aiming at the target to be measured precisely.
Shenzhen ThreeNH Technology Co., Ltd / Shenzhen Tilo Technology Co., Ltd . was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.
5. Frequently Asked Questions
1. Can TS7700 spectrophotometer be equivalent to any models of world famous brand?
Answer: Yes, our TS7700 is equivalent to CM-700d of KONICA MINOLTA and Ci64 of X-rite.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally, it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. The first suggested payment method is via Alibaba platform here.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
