Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080

  • Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080
  • Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080
  • Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080
  • Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080
  • Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080
  • Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080
  • Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RoHS
Model Number YS6080
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 380*310*210mm, 18KG, Aluminum Box Package
Delivery Time 5-8 Days
Payment Terms T/T
Supply Ability 1000 Unit per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry D/8 & D/0 Wavelength 360-780nm
Repeatibility DeltaE ≤ 0.03 Inter-instrument Error DeltaE ≤ 0.15
Aperture 25.4mm & 15mm & 8mm & 4mm Sphere Size Φ154mm
High Light

780nm Double Beam Spectrophotometer

,

Double Beam Spectrophotometer 3NH YS6080

,

Pulsed Xenon Lamp Digital Spectrophotometer
Leave a Message
Product Description
Specification
Model
YS6080(Pulsed xenon lamp)
Optical Geometry
Reflectance: d/8 (SCI⪰ Include UV/Exclude UV)
Transmittance: d/0 (SCI⪰ Include UV/Exclude UV); Haze(ASTM D1003)
Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Integrating Sphere Size
Φ 154mm
Light Source Device
360nm-780nm Xenon Lamp, 400nm cut-off Xenon Lamp,420nm cut-off Xenon Lamp,460nm cut-off Xenon Lamp
Spectrophotometric Mode
Concave Grating
Sensor
256 Image Element Double Array CMOS Image Sensor
Wavelength Range
360-780nm
Wavelength Pitch
10nm
Semiband Width
5nm
Reflectance Range
0~200%
Measuring Aperture
Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ30mm/Φ25mm;Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens
position
Specular Component
Reflectance: SCI&SCE
Transmittance: SCI&SCE
Color Space
CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy
Color Difference Formula
ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99
Colorimetric Index
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003)
Observer Angle
2° & 10°
Illuminants
D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Displayed Data
Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measuring Time
About 2.4s (Measure SCI & SCE about 5s)
Repeatability
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.012 (When a white calibration plate is measured 30 times at 5
second intervals after white calibration)
Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 (When a white calibration plate is measured 30 times at 5
second intervals after white calibration)
Inter-instrument Error
Φ25.4mm/SCI, Within ΔE*ab 0.12
(Average for 12 BCRA Series II color tiles)
Size
370×300×200mm
Weight
About 9.6kg
Power Supply
DC 24V, 3A Power Adapter
Light Source Device Life
5 years, more than 3 million times measurements.
Display
7" TFT Capacitive Screen-touch Display
Data Port
USB & Bluetooth & Print serial port
Data Storage
Standard 5000 Pcs, Sample 40000 Pcs
Language
Simplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish)
Working Environment
Temperature: 0~40℃; Humidity: 0~85% (No Condensation)
Storage Environment
Temperature: -20~50℃; Humidity: 0~85% (No Condensation)

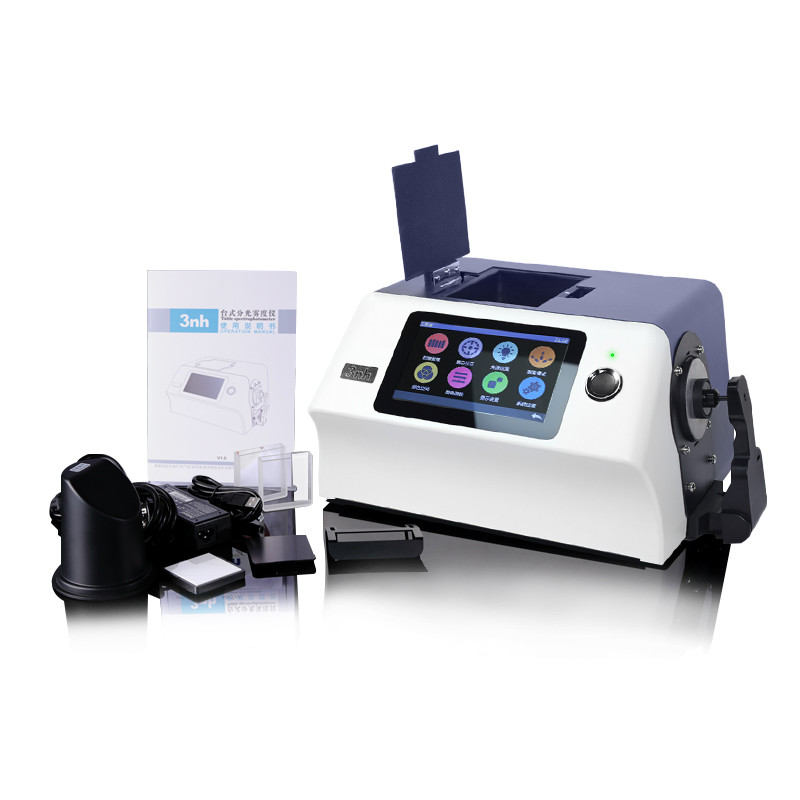

Standard Accessory
Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission
black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component
Optional Accessory
Micro-printer, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components
Notes: The specifications are subject to change without notice.
Product Description
YS6080 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent intellectual property. YS6080 has many features, like 7 inches TFT capacitive touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry (including or excluding UV). With very stable and precise color measurement, large storage and powerful PC software all makes YS6080 ideal for color analysis within R&D and laboratory environments.

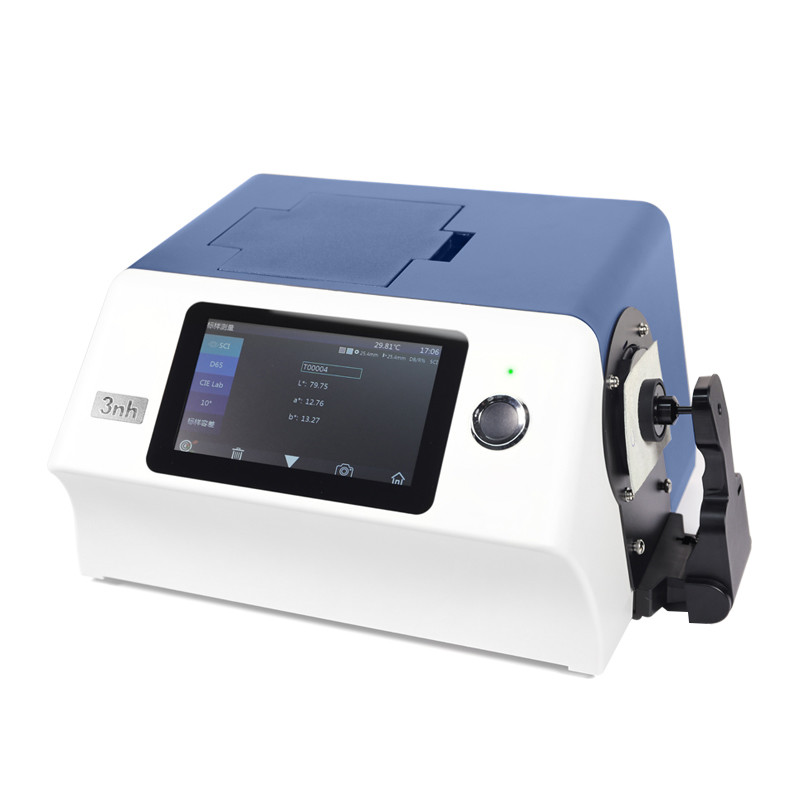

Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080 0

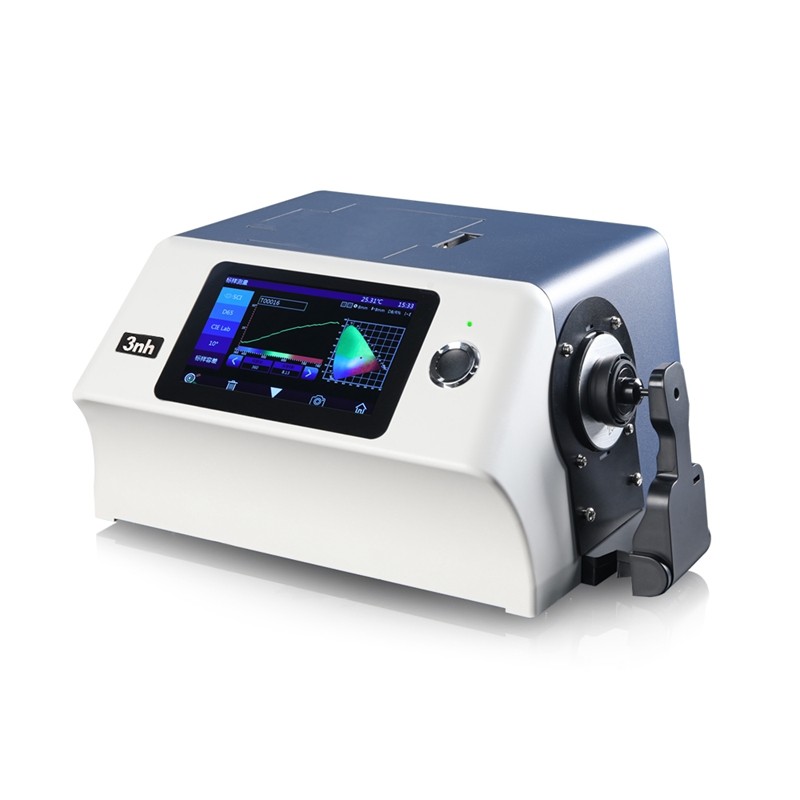

Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080 1

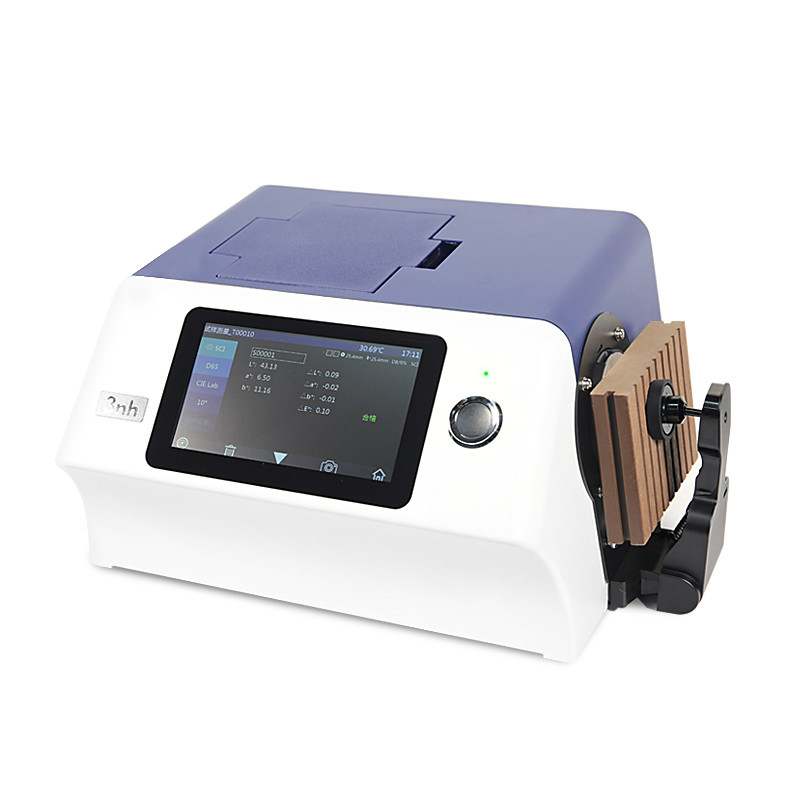

Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080 2
Packing & Delivery
Package: carton package.
Payment: T/T, Western Union, Paypal
Lead Time:1-3 workdays
Shipping methods: DHL, Fedex, UPS, EMS

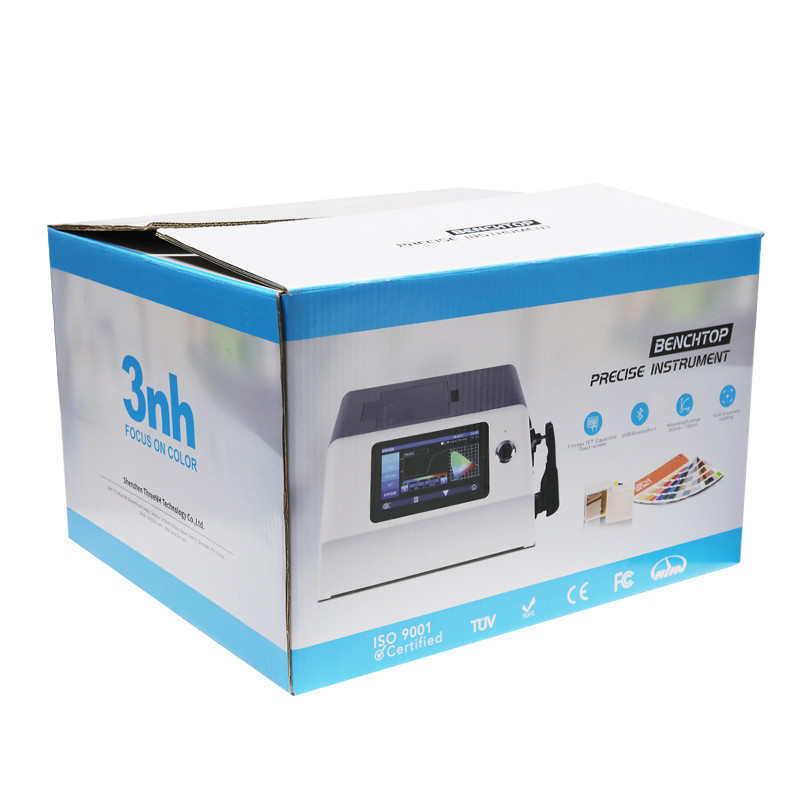

Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080 3

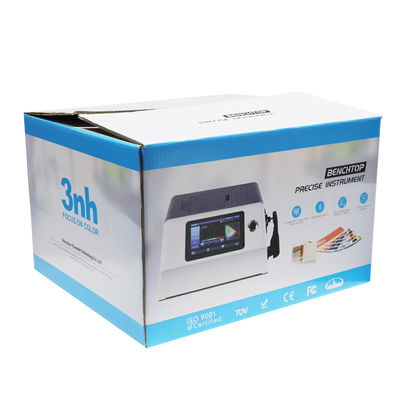

Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080 4
FAQ
1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and
sell color measuring instruments and gloss meters, color light box etc.
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via
Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
Company Profie

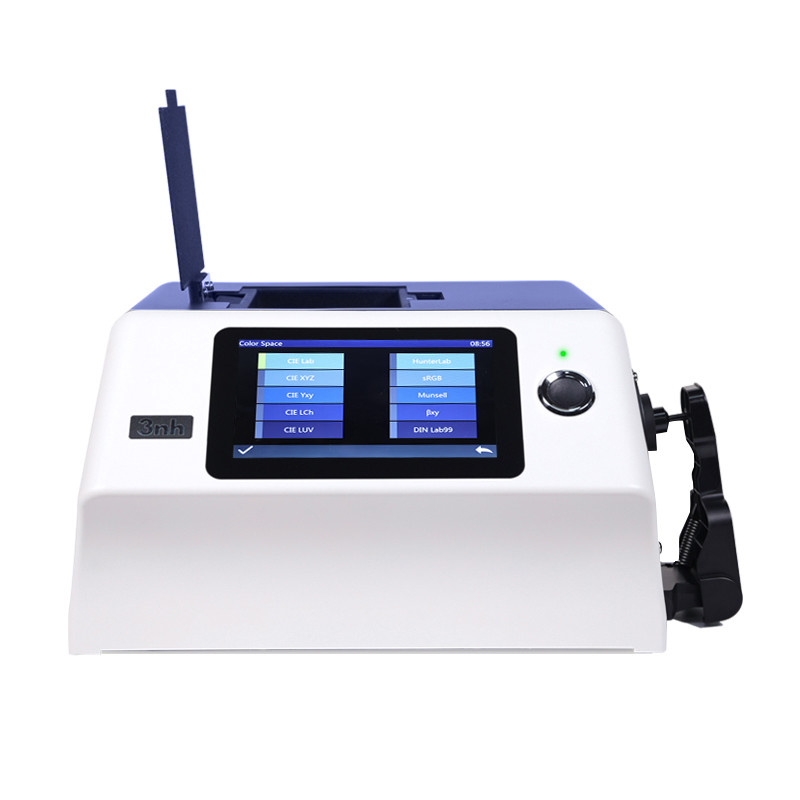

Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080 5
Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080 6
Pulsed Xenon Lamp 780nm Double Beam Spectrophotometer 3NH YS6080 7
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in color management field and color management field. After years of intensive research, 3nh has launched NH series colorimeter, NR series colorimeter, NS series spectrophotometer, ISO12233 resolution test chart, optical image test solution and specific standard illuminant. Our products are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported all around the world. We can provide customization service which has been well received by customers. 3nh adheres to the business philosophy of "people-oriented, customer first, technological innovation, sustainable development" to meet customers' demands continuously, to create value for customers and to achieve a win-win situation and common development.
