SCE 700nm Car Paint Spectrophotometer Portable Colorimeter 3nh YS3010 YS3020
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Optical Geometry | D/8° | SCE/SCI | SCE & SCI |
|---|---|---|---|
| UV Light Source | Yes | Repeatibility | ΔE*≤0.03 |
| Inter-instrument Agreement | ΔE*≤0.15 | Measuring Aperture | 8mm & 4mm |
| High Light | SCE Car Paint Spectrophotometer,700nm Car Paint Spectrophotometer,3nh YS3010 Portable Colorimeter |
||
Product Description
3nh YS3010 YS3020 YS3060 car paint spectrophotometer D/8 portable colorimeter with 400-700nm wavelength
Brief Introduction
Grating Spectrophotometer YS3060 is a new product launched as a flagship model in color measuring instruments by Shenzhen 3nh Technology Co., Ltd. YS3060 spectrophotometer can match with the similar models of the world famous brands no matter in functions or in precision, such as American Xrite brand models spectrophotometer Ci60, Ci62, Ci64, Ci64UV, and Japan Minolta models spectrophotometer CM-2300d, CM-2600d, CM-600d and CM-700d etc.
Specification Parameter
| Model Items | YS3060 | YS3020 | YS3010 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) | ||
| Integrating Sphere Size | 48mm | ||
| Light Source | Combined LED Light, UV Light | Combined LED Light | |
| Spectrophotometric Mode | Concave Grating | ||
| Sensor | 256 Image Element Double Array CMOS Image Sensor | ||
| Wavelength Range | 400-700nm | ||
| Wavelength Interval | 10nm | ||
| Semiband Width | 10nm | ||
| Measured Reflectance Range | 0-200% | ||
| Measuring Aperture | Dual Aperture: 10mm/8mm & 5mm/4mm | Customized Aperture: 8mm/4mm/1×3mm | Single Aperture: 8mm/10mm |
| Specular Component | SCI&SCE | ||
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, RGB | ||
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) | ||
| Other Colorimetric Index | |||
| Observer Angle | 2°/10° | ||
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 | ||
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset | ||
| Measuring Time | 2.6s | ||
| Repeatability | MAV/SCI: ΔE*≤0.03 | MAV/SCI: ΔE*≤0.05 | MAV/SCI: ΔE*≤0.06 |
| Inter-instrument Error | MAV/SCI: ΔE*≤0.15 | MAV/SCI: ΔE*≤0.2 | MAV/SCI: ΔE*≤0.4 |
| Measurement Mode | Single Measurement, Average Measurement | ||
| Locating Method | Camera View Finder Locating | ||
| Battery | Li-ion battery. 5000 measurements within 8 hours | ||
| Dimension | L*W*H=184*77*105mm | ||
| Weight | 600g | ||
| Illuminant Life Span | 5 years, more than 3 million times measurements | ||
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen | ||
| Data Port | USB, Bluetooth 4.0 | USB | |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs | ||
| Language | English, Chinese | ||
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m | ||
| Storage Environment | -20~50℃, 0~85%RH (no condensing) | ||
| Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover | ||
| Optional Accessory | Micro Printer, Powder Test Box | ||
| Notes: The specifications are subject to change without notice. | |||
Application
YS3060 spectrophotometer is color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS3060 is perfectly suitable to measure the color of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.
Show Room
FAQ
1. Which models are the equivalent models to YS3060?
Answer: MINOLTA CM-2600d, CM-700d and X-rite Ci64, Ci64UV are the equivalent models to 3nh YS3060.
2. Is 3nh a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters.
3. Where is your main market.
Answer: We sell to the global market.
4. Is the package strong enough to make the instrument shipped safely to customers?
Answer: Yes, of course. The instrument is packed in a firm alluminum box filled with foam.
5. Can YS3060 be used to measure liquids?

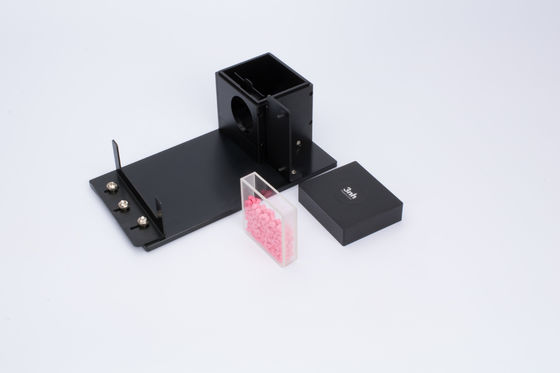

Answer: Yes, YS3060 can be used to measure liquids, but it must be configured with a universal test component which is optional.
