7.7" TFT Benchtop Spectrophotometer 3nh Ys6060 30mm 18mm Apertures

  • 7.7" TFT Benchtop Spectrophotometer 3nh Ys6060 30mm 18mm Apertures
  • 7.7" TFT Benchtop Spectrophotometer 3nh Ys6060 30mm 18mm Apertures
  • 7.7" TFT Benchtop Spectrophotometer 3nh Ys6060 30mm 18mm Apertures
  • 7.7" TFT Benchtop Spectrophotometer 3nh Ys6060 30mm 18mm Apertures
  • 7.7" TFT Benchtop Spectrophotometer 3nh Ys6060 30mm 18mm Apertures
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RoHS
Model Number YS6060
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 380*310*210mm, 18KG, Aluminum Box Package
Delivery Time 5-8 Days
Payment Terms T/T
Supply Ability 1000 Unit per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry D/8 & D/0 Wavelength 360-780nm
Repeatibility DeltaE ≤ 0.03 Inter-instrument Error DeltaE ≤ 0.15
Aperture 25.4mm & 15mm & 8mm & 4mm Sphere Size Φ154mm
High Light

7.7" TFT Benchtop Spectrophotometer

,

Benchtop Spectrophotometer 3nh Ys6060

,

18mm Apertures Integrating Sphere Spectrophotometer
Leave a Message
Product Description

ys6060 benchtop grating spectrophotometer 3nh with 30mm/18mm/10mm/6mm four apertures



Easy operation Benchtop spectrophotometer Incompable Accurancy Desktop Spectrophotometer
Company info. :
company detail

Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.



Our Certificates:
ISO9001:2008; CE; FCC; ROHS; TUV.



The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
Brief Introduction :



YS6060 spectrophotometer is a bench-top measurement instrument designed to evaluate the color and appearance of many measuring applications for objects’ reflectance and also the transmittance of translucent or transparent liquids and solids. It is a compact yet advanced instrument that features a side port in horizontal format and with 7.7 inch TFT touch screen, it’s very easy to operate.



With high-precision capabilities and great reliability, YS6060 benchtop spectrophotometer allows users to effectively analyze, formulate, and control the color and appearance of solids, liquids, pastes, powders, pills, and granules in a more comprehensive, streamlined process. Using Optical Geometry (Reflective : d/8° and Transmissive : d/0°) and specular mode SCI&SCE / SPIN&SPEX, they all makes the CM-5 ideal for color analysis within R&D and laboratory environments.


Application Industry :



Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

UV Visible Spectrophotometer YS6060


Specification :
Model YS6060 Benchtop Spectrophotometer
Illumination/observation system Reflective:d/8 degree; Transmissive: d/0 degree
Integrating sphere Size Φ48mm
SCE / SCI

Reflective: SCE&SCI; SPIN & SPEX

Transmissive: SCE&SCI; SPIN & SPEX
Light Source Device Combined led lamp & UV lamp
Wavelength range 360~780nm
Wavelength pitch 10nm
Reflectance range 0~200%
Measuring Aperture

Reflective:Φ30mm/Φ25.4mm; Φ18mm/Φ15mm; Φ10mm/8mm; 6mm.

Transmissive: Φ30mm/Φ25mm
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter),Musell,s-RGB, Hunter Lab etc.
Other Chromaticity Data

WI(ASTM E313, CIE/ISO, AATCC, Hunter),

YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),

Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, Gardner Index, Pt-co Index,555 index
Spectral Device Concave Grating
Illuminant D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Display Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measurement Time 1.5s
Repeatability ΔE<= 0.01
Inter Instrument Agreement Within DeltaE*ab 0.12 (Average for 12 BCRA Series II color tiles)
Dimension L*W*H=370*300*200mm
Weight 16kg
Battery Li-ion battery. 5000 times within 8 hours.
Lamp Life 5 years, more than 1.6 million measurements
Display Screen TFT 7 inch, Capacitive Touch Screen
Interface USB/RS-232
Data Memory Standard 2000 Pcs, Sample 20000 Pcs
Operating Temperature 0~40℃(32~104°F)
Storage temperature -20~50℃(-4~122°F)
Standard Accessory Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Board, Dust Cover,Checking Green Board,Sample Holder,Φ25.4mm & Φ15mm Aperture.
Optional Accessory Micro Printer, Powder Test Box,Transmissive Test Component
Language Chinese, English, Spanish

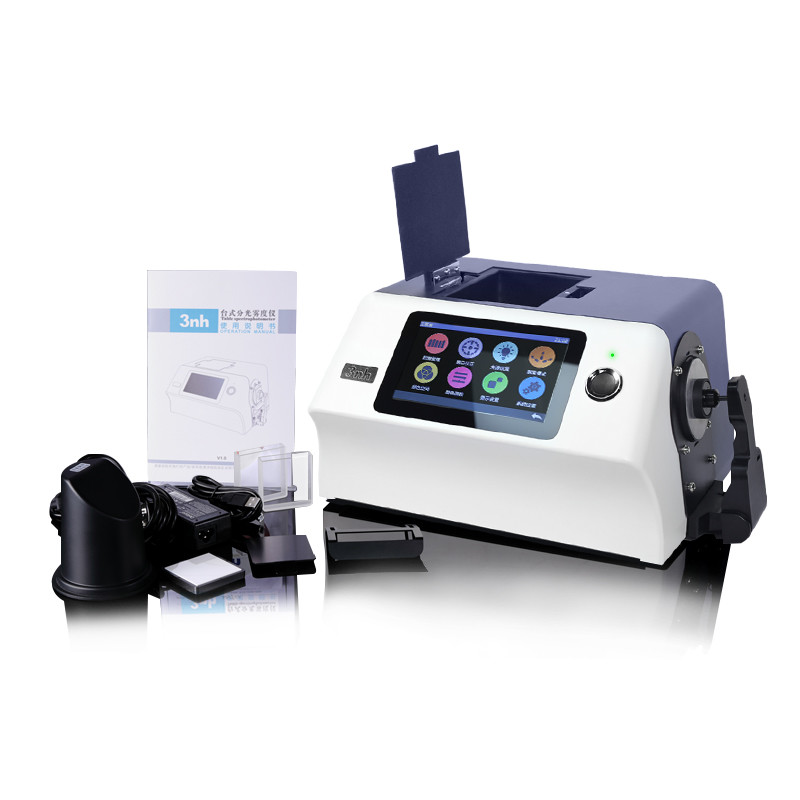

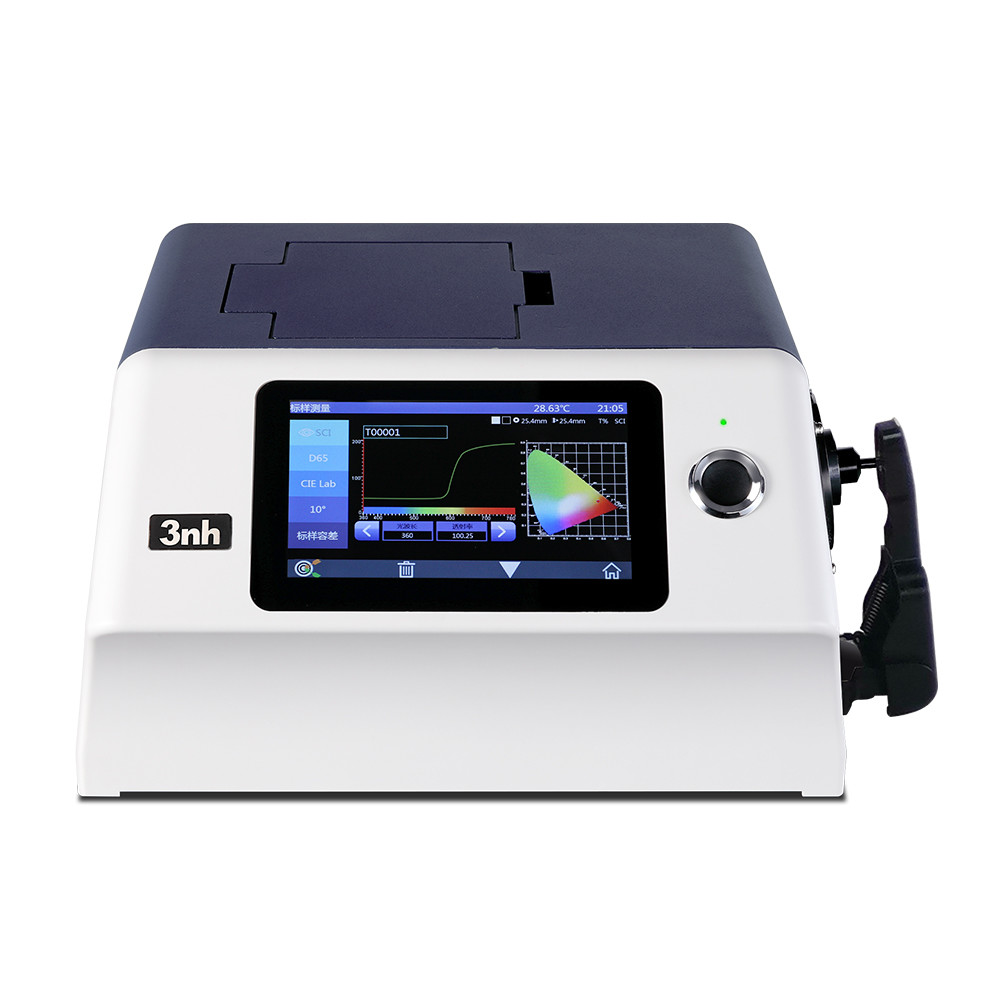

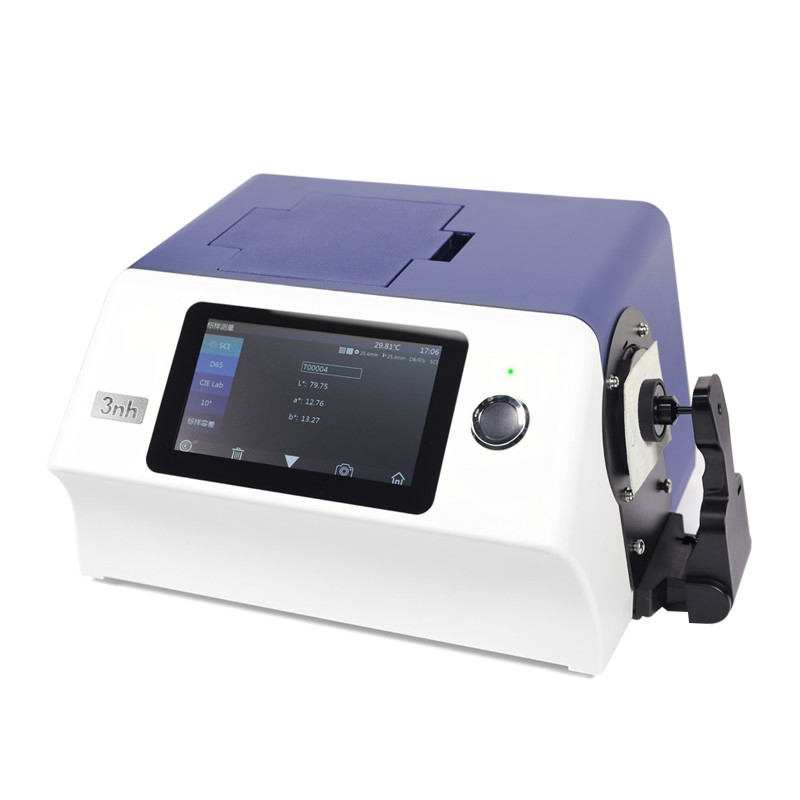

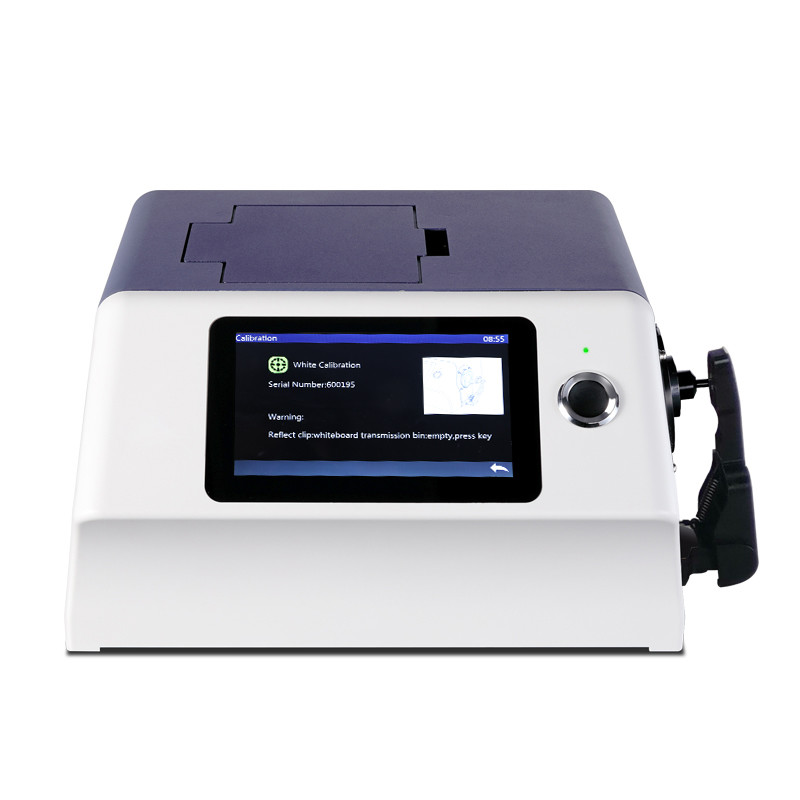

Product Image :
_MG_03551

UV Visible Spectrophotometer YS6060UV Visible Spectrophotometer YS6060UV Visible Spectrophotometer YS6060UV Visible Spectrophotometer YS6060

_MG_0402
Certification :
certification
Customer confirmation :
UV Visible Spectrophotometer YS6060
Contact Info. :
contact us

Related Knowledge about Spectrophotometer:



Color Space

CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral

CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle

dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.

QQ20180428112039
Delta E
Meaning
0~1
A normally invisible difference
1~2
Very small difference, only obvious to a trained eye
2~3.5
Medium difference, also obvious to an untrained eye
3.5~5
An obvious difference
>6
A very obvious difference
