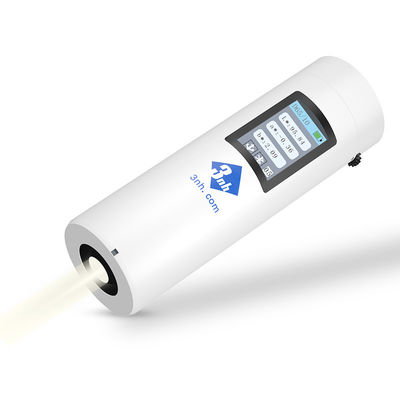

CR3 Color Reader SCI Manual Calibration Digital Colorimeter With D/8 APP Software
Product Details
| Model: | SCI | Color: | White |
|---|---|---|---|
| Measuring Aperture: | 8mm | Color Space: | CIEL*a*b |
| Delta E: | <0.05 | Calibration: | Manual |
| Locating: | Cross-Locating Illumination Locating | ||
| Highlight |
CR3 Color Reader Digital Colorimeter,SCI Manual Calibration Digital Colorimeter,D/8 APP Software Mini Colorimeter |
||
Product Description
Beijing Silk Technology Co., Ltd / Beijing Silk Technology Co., Ltd . was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.
| Product Name & Model | CR3(Advanced Edition) ColorReader |
| Geometry | D/8(Diffuse illuminance, 8°reception, SCI), Conforms to standards CIE No.15,GB/T 3978. |
| Features | |
| Integrating sphere size | Φ20mm |
| Illuminant | Full spectrum LED light source |
| Spectro device | Filter spectro |
| Sensor | CMOS Dual light path sensor |
| Wavelength Range | 400~700nm |
| Measuring Aperture | Φ8mm |
| SCI/SCE | SCI |
| Color Spaces | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB,HunterLab,βxy, DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Color Index | |
| Display Accuracy | 0.01 |
| Observer Angle | 2/10° |
| Light source | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Display | Sample chromaticity value, color difference value, pass/fail result, color simulation, color deviation, reflectance (partly through mobile APP) |
| Measuring Time | 1.0s |
| repeatability | Color:ΔE*ab within 0.05(After warm-up calibration, the average value of measuring the whiteboard 30 times at an interval of 5s) |
| Metrology requirements | Pass National Metrology |
| Measurement Mode | Single measurement,Average measurement(2~99times)(Implemented through smartphone App) |
| Dimension | Ø30X100mm |
| Weight | 88g |
| Battery | Lithium battery, can do tests continuously for 12000 times in a single full charge |
| Light source lifespan | 5-years more than 3 million times measurements |
| Display screen | IPS full color screen, 1.14 inch |
| Interface | Type-C USB; Bluetooth 5.0; Buttons |
| Data storage | Standards: 10pcs, Samples: 100pcs. Mass storage can be expanded through mobile APP |
| Data review | The instrument has its own measurement data review function |
| White calibration | Non-contact automatic calibration |
| Settings | Instrument can set parameters |
| Language | Chinese,English |
| Working Temperature range | 0~40℃,0~85%RH(No condensation),Altitude:lower than 2000m |
| Storage Temperature Range | -20~50℃,0~85%RH(No condensation) |
| Standard Accessories | Data cable, manual, calibration box, SQCX PC Color quality management software, MOBCCS APP (download from official website) |
| Optional Accessories | USB mini printer, powder test box |
| Note: | Technical parameters are for reference only, subject to actual instruments. |
1.24 hours online to ensure quick response to customers' inquiry or online message;
2. Help customers to choose the best suitable machine model;
3. We support OEM and ODM service and 12 months warranty from the purchase date.
