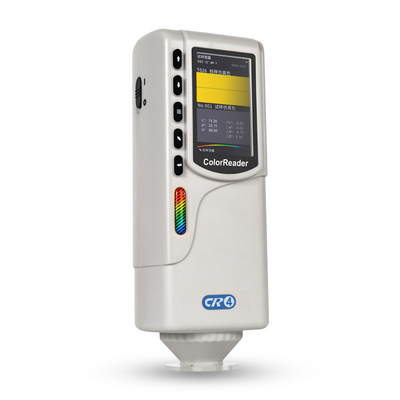

CIE Lab Handheld Colorimeter CR4 LED Light Excitation 3200mAh
Place of Origin | Shenzhen, China |
---|---|
Brand Name | 3nh |
Certification | CE, TUV, FCC, ISO9001, RohS |
Model Number | CR4 |
Minimum Order Quantity | 1 Unit |
Price | Discuss |
Packaging Details | 46*25*38cm, 4.5kg, Alluminum Box |
Delivery Time | 1-3 work days |
Payment Terms | T/T, L/C, Western Union |
Supply Ability | 1000 Units per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Measuring Aperture | Φ4mm | Repeatability | Within ΔE*ab 0.08 |
---|---|---|---|
Illuminating/Viewing Geometry | 8° / D | Measuring Range | L: 0 To 100 |
Illuminant Device | LED Blue Light Excitation | Storage | 100 Pcs Standard Samples; 20000 Pcs Test Samples |
Color Difference Formula | ΔE*ab; ΔL*ab; ΔE*C*H | Measuring Conditions | CIE 10° Standard Observer |
High Light | CIE Lab Handheld Colorimeter,LED Light Excitation Handheld Colorimeter,3200mAh Color Difference Meter |
Product Description
Model | CR4 |
OpticalGeometry | 8/D (8°illumination diffuse acceptance) SCI Comply with standard CIE No.15 GB/T 3978 |
Application | Used for color difference quality control in plastic electronics paint and coating textile and garment printing and dyeing ceramics and other industries. Find the color card through the mobile APP |
IntegratingSphereSize | 40mm |
Light Source Device | 360nm-780nm Combined LED Lamp |
SpectroscopicMethod | Plane-Grating |
Sensor | CMOS Sensor |
SpectralRange | 400~700 nm |
Measurement Aperture | Φ4mm |
Light-included Mode | SCI |
Color Spaces | CIE LAB LCh |
Color difference formulas | ΔE*ab |
OtherColorimetricData | Spectral curve (only in APP) |
Division Value | 0.1 |
Observer | 10° |
Illuminant | D65 |
Displayed Data | Chromaticity Values Color Difference Values Pass/Fail Result Color Simulation Color Offset |
Measurement Time | About 1.2s |
Repeatability | Chromaticity value: withinΔE*ab 0.1 (After calibration measure the average value of the whiteboard 30 times at 5s intervals) |
Accuracy | Does not guarantee to pass the national metrology |
MeasurementMethod | Single measurement average measurement (2~99 times) |
LocateMode | / |
Size | 205X67X80mm |
Weight | About 500g |
Battery Performance | Rechargeable Li-ion battery 3.7V @ 3200mAh |
Life Lamp | More than 1.6 million measurements in 5 years |
Screen | TFT true color 2.8inch@(16:9) |
Interface | USB (charge only); Bluetooth 5.0 |
Data storage | 100pcs standard samples 10000pcs samples storage can be extended through mobile APP |
Data viewing | APP supports massive search; Device supports 5 latest standard samples and 5 samples data viewing |
Languages | Simplified Chinese English |
Operating Environment | Temperature: 0~40°C; Humidity: 0~85% (No Condensation) Altitude: less than 2000m |
Storage Environment | -20~50℃ 0~85%RH (no condensation) |
Standard Accessories | Power adapter manual MOBCCS APP software (download from official website Android platform) USB cable whiteboard box wrist strap Φ4mm flat aperture |
Optional Accessories | USB Micro PrinterPowder test box |
Note | Technical parameters are for reference only subject to actual product |
