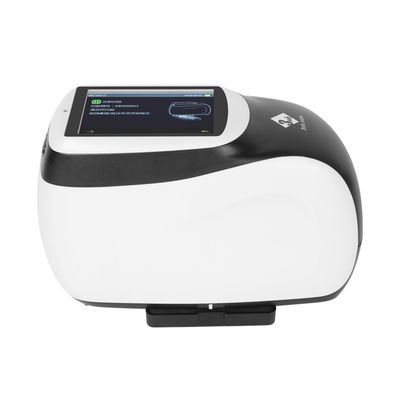

MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle

MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle

Product Details:

Place of Origin: China
Brand Name: 3nh
Certification: CE&RoHS&TUV&FCC&ISO9001
Model Number: MS3003

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: discuss
Packaging Details: Standard Export Package
Delivery Time: 2 work days
Payment Terms: T/T
Supply Ability: 1000PCS/MONTH
Get Best Price Contact Now

Detail Information

Measurement Geometry: 3 Measurement Angles (3 Illumination Sources, 1 Receivers) Spectral Separation Device: Concave Grating
Detector: 256 Image Element Double Array CMOS Image Sensor Wavelength Range: 400-700nm
Measurement Range: 0~600% Color Spaces: CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
High Light:

Mult Angles 3nh spectrophotometer

,

Automobile 3nh spectrophotometer

,

3nh color measurement instruments

Product Description

Product Description
3nh Multi-angle spectrophotometer MS3003 is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. It can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products.
MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle 0
MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle 1
MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle 2
MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle 3
Specification
Model
MS3003
Measurement Geometry
3 measurement angles (3 illumination sources, 1 receivers)
Measure Angle
45° Receiver:
45as25°,45as45°,45as110°
Conform to the standards:ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545
Application
Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light Source
Full spectrum LED light source with blue enhancement
Lamp Life
5 years, 3 million times measurements
Spectrophotometric Mode
Concave Grating
Sensor
256 Image Element Double Array CMOS Image Sensor
Wavelength Range
400nm-700nm
Wavelength Interval
10nm
Measurement Range
0~600%
Semiband Width
10nm
Measuring Aperture
Φ12mm
Color Space
CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color Difference Formula
ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
Other Colorimetric Index
Flop Index
Observer Angle
2°/10°
Illuminant
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time
Approx. 1 second for one angle
Approx. 3 seconds for all angles
Repeatability
Spectral reflectance: Standard deviation within 0.08%
Chromaticity value: ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white
calibration)
Reproducibility
ΔE*<0.10,avg on the gray tile of BCRA tile set
ΔE*<0.25,avg on the color BCRA tile set
Inter-instrument Error
0.2ΔE*00(avg on reference Series II BCRA tile set)
Effect Parameters
/
Effect Measurement
/


Effect Repeatability
/
Effect Reproducibility
/
Trigger mode
Pressure sensing trigger, button trigger, software trigger
Measuring Mode
Single measurement, average measurement (1-99), continuous measurement (1-99)
Locating Mode
Color camera preview
Dimension
L*W*H=195X83X128mm
Weight
About 1Kg
Power
lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge
Display
3.5-inch TFT color LCD, Capacitive Touch Screen
Interface
USB
Data Storage
1000 pcs Standards,4000 pcs Samples
Language
Simplified Chinese, Traditional Chinese, English
Operating Environment
10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment
-20℃ to 50℃, humidity does not exceed 85%, no condensation
Calibration
Built-in white board parameters, external white board, black light trap
Calibration Interval
4 hours,8 hours,24 hours,Startup calibration
Standard accessories
Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light
trap,Protective cap, wristband
Optional Accessory
Micro-printer
Notes
Technical parameters are for reference only, subject to actual sales products.
Packing & Delivery
MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle 4
Standard accessories:
Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light
trap,Protective cap, wristband
Company Profile
MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle 5
3nh focus on color measurement for over 23 years, and it provides ruggedly dependable, consistently accurate, and cost effective color measurement solutions. The company offers both diffuse/8 degree (d/8) and a complete line of true 45/0 optical geometry instruments in portable, bench-toop and non-contact configurations.
Certifications
MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle 6
MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle 7
MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle 8
MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle 9
MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle 10
MS3003 Mult Angles 3nh Spectrophotometer 25 / 45 / 110 Degree For Car Automobile Vehicle 11
FAQ
1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
