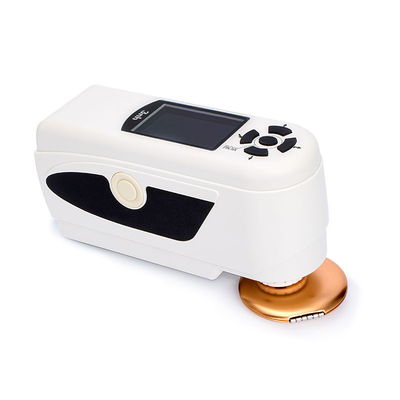

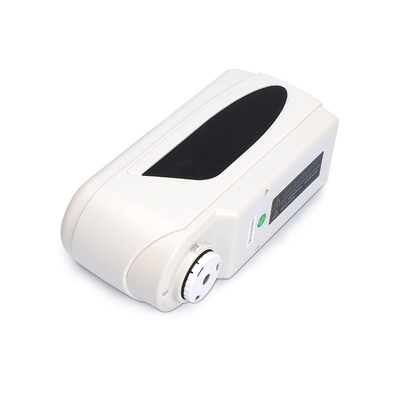

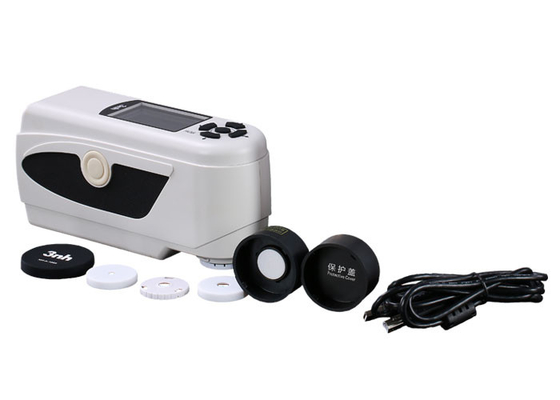

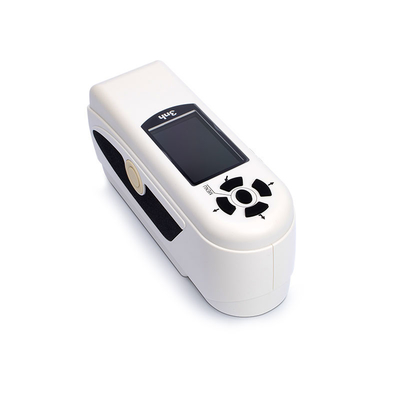

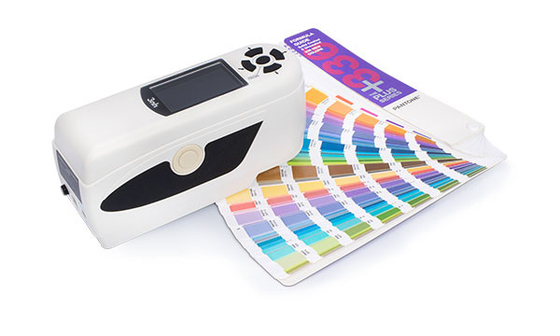

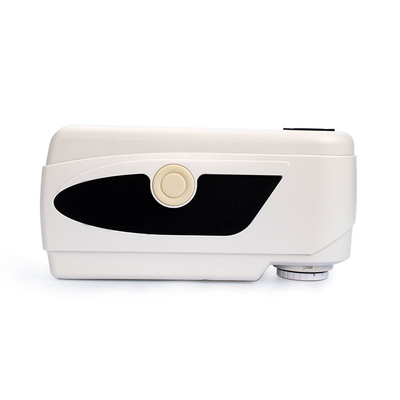

NH300 Color Difference Meter Color Test Equipment With 8mm Aperture
Product Details
| Model: | NH300 | Locating: | Illumination Locating |
|---|---|---|---|
| Calibration: | Manual | Accuracy: | Delta E <0.07 |
| Light Source: | D65 | Color Space: | Lab XYZ |
| Highlight |
NH300 color difference meter,Silk color difference meter,8mm aperture color test equipment |
||
Product Description
Chinese cheap color meter nh300 colorimeter color test equipment with 8mm aperture
Features
1. Leading Humanity Design and Convenient Operatio
2. Stable Measurement Performance
3. Convenient and Fast Locating
4. PC Software—Realize More Function Expansion
5. Advanced Power Management Design
Specifications
| Model: | NH300 colorimeter |
| Illuminating geometry: | 8/d (8°illumination angle/diffuse viewing) |
| Measuring Aperture: | 8mm |
| Storage: | 100pcs standards 20000pcs samples |
| Repeatability: | Standard deviation within ΔE*ab 0.07;Average of 30 measurements of standard white plate |
| Errors Between Each Equipment: | ≤0.40ΔE*ab |
| Light source: | D65 |
| Lamp Life: | 5 years, more than 1.6 million measurements |
| Data Interface: | USB |
| Temperature Range: | -10°Cto 40 °C |
| Humidity Range: | less than 85% relative humidity, no condensation |
| Weight: | 500g |
| Dimensions: | 205 x 70 x 100 mm |
1. When I received NH310/NH300 colorimeter and perform measurement, why the measured data is abnormal?
After receiving NH310/NH300, you have to perform white and black calibration manually when first starting.
2. In which condition, manual white and black calibration and auto calibration are required for NH310?
a. It’s needed to perform manual calibration for NH310 when first starting.
b. In the subsequent starting, NH310 will perform auto calibration at startup. No need to perform manual calibration.
c. Suggestion: it’s best to perform manual calibration once a week or when NH310 measured data is not accurate.
3. In which condition, manual white and black calibration for NH300 is required?
a. It’s needed to perform manual calibration for NH300 when first starting.
b. In the subsequent starting, no need to perform manual calibration.
c. Suggestion: it’s best to perform manual calibration once a week or when NH300 measured data is not accurate.
4. How to replace NH310 measuring aperture?
There are three measuring apertures for NH310: Φ8mm (standard accessory), Φ4mm (standard accessory), extended Φ8mm (optional accessory)
a. Turning on
b. Removing measuring aperture, install the needed measuring aperture.
c. Select “Settings-Aperture Setting” in main menu to select corresponding measuring aperture.
d. After selecting aperture, the instrument will display “White and Black Calibration” interface. White and black calibration must be performed.
e. Replace completed.
5. CQCS3 (Color Quality Control System) Installation
a. Before installation, please Copy CQCS3 folder to your computer and don’t remove any files in CQCS3 folder.
b. Double-click the setup.exe to install CQCS3 software.
c. Then double-click Install.bat under the CQCS3USB_Driver file to install the driver.
d. Detailed installation information please read the "Installing Software" under CQCS3 User manual.doc.
1.24 hours online to ensure quick response to customers' inquiry or online message;
2. Help customers to choose the best suitable machine model;
3. We support OEM and ODM service and 12 months warranty from the purchase date.
Beijing Silk Technology Co., Ltd / Beijing Silk Technology Co., Ltd . was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.
