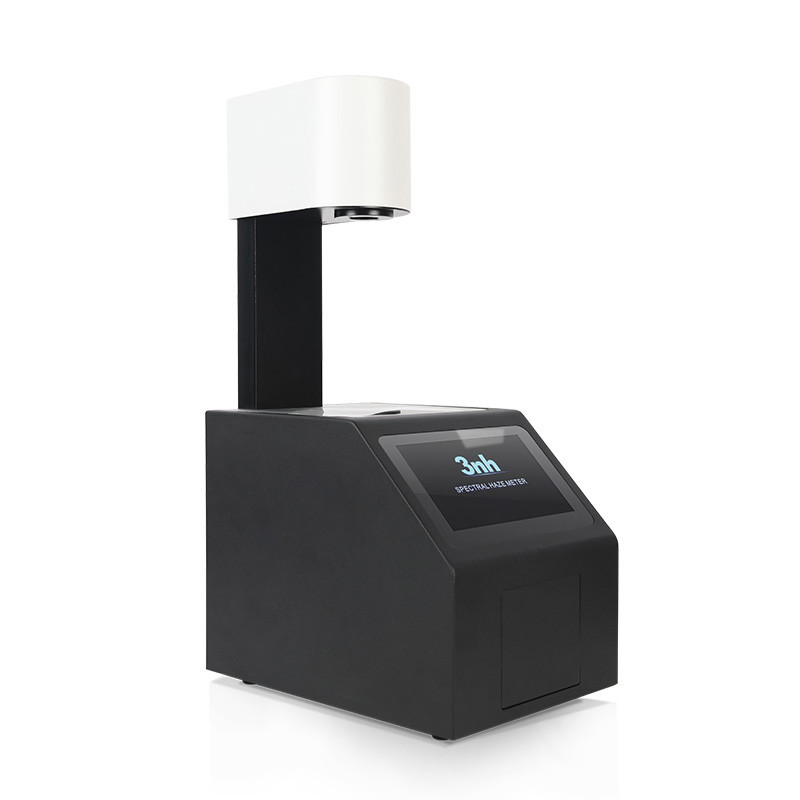

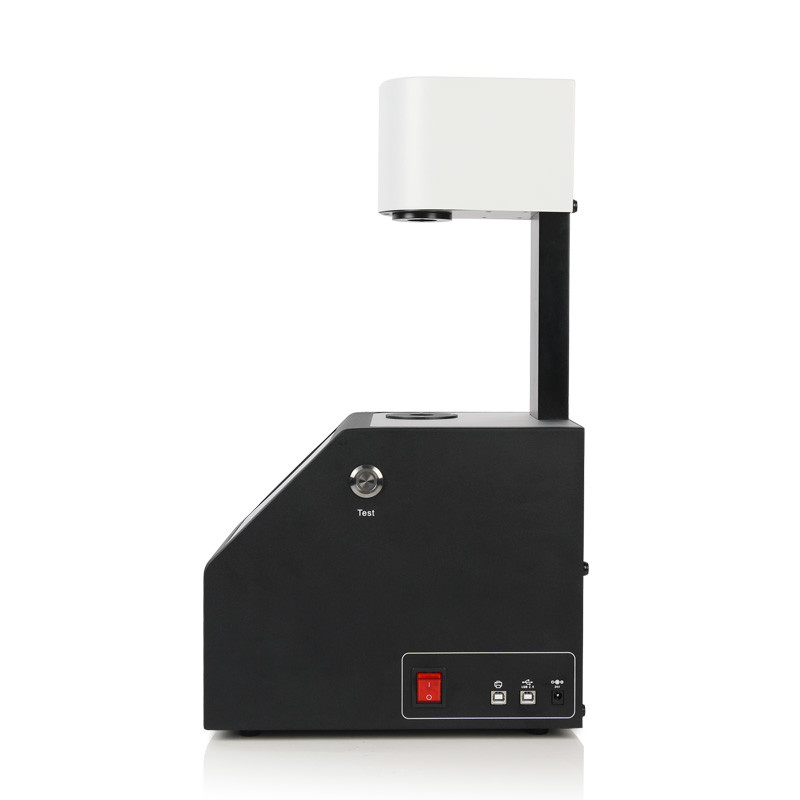

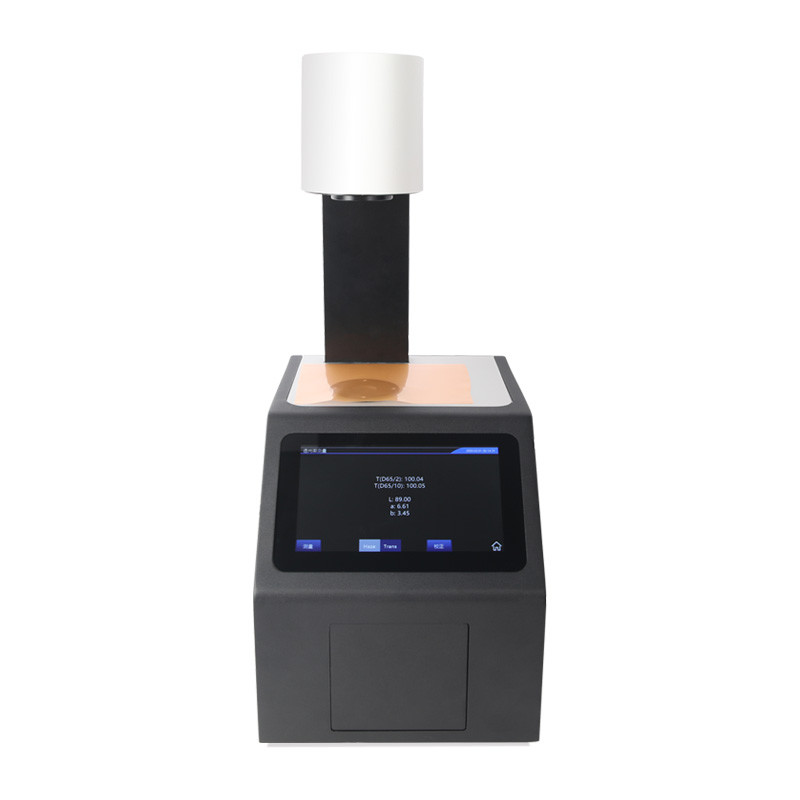

YH1100 Haze Meter ASTM Standard Transparent Plastic Film Glass Light Transmittance Meter
Product Details
| Optical Geometry: | D/8° | SCE/SCI: | SCE & SCI |
|---|---|---|---|
| UV Light Source: | Yes | Repeatibility: | ΔE*≤0.03 |
| Inter-instrument Agreement: | ΔE*≤0.15 | Measuring Aperture: | 8mm & 4mm |
| Highlight |
0 / D Transmittance haze meter,touch screen haze meter,ASTM Standard Light Transmittance Meter |
||
Product Description
Beijing Silk Technology Co., Ltd / Beijing Silk Technology Co., Ltd . was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.
| Product Model | YH1100 Haze Meter |
| Optical Geometry | Transmittance:0/D(Parallel light illumination, diffuse viewing) Conforms to:ASTM D1003/1044,ISO 14782,GB/T 2410,JJF 1303-2011,CIE 15.2,GB/T 3978,ASTM E308,JIS K7105,JIS K7361,JIS K 7136 |
| Character | The instrument can easily achieve ASTM D1003 non-compensation method, full light transmittance,haze test. Open measuring area for vertical and horizontal testing. In glass processing, plastic processing, film, screen processing, packaging and other industries are widely used in transmittance,haze detection. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 400nm to 700nm, combined LED light |
| Specular Component | / |
| Sensor | The PD array detector satisfies CIE V(λ)2 degree visual response |
| Wavelength Range | / |
| Wavelength Interval | / |
| Semiband Width | / |
| Transmittance measurement range | 0~100% |
| Measuring Aperture | Φ20mm/Φ15mm/Φ8mm/Φ4mm(Select a single aperture) |
| Sample Size | Thickness <170mm |
| Color Space | / |
| Color Difference Formula | / |
| Other Colorimetric Index | Haze(ASTM D1003/1044),Transmittance T(ASTM) |
| Observer Angle | 2° |
| Illuminant | D65,A,C |
| Displayed Data | PASS/FAIL Result |
| Measuring Time | About1.5s |
| Haze resolution | 0.01unit |
| Haze repeatability | Φ20mm,within 0.1(After preheating and calibration of the instrument, standard deviation values of standard haze tablets with a test haze of about 40 for 30 times were taken at intervals of 5s.) |
| Inter-instrument Error | Φ20mm,with 0.4(After the instrument is preheated and calibrated, the standard deviation between the standard haze tablet and the reference value is tested at an interval of 5s.) |
| Dimension | L*W*H=290X211X511mm |
| Weight | About7.6kg |
| Power | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |

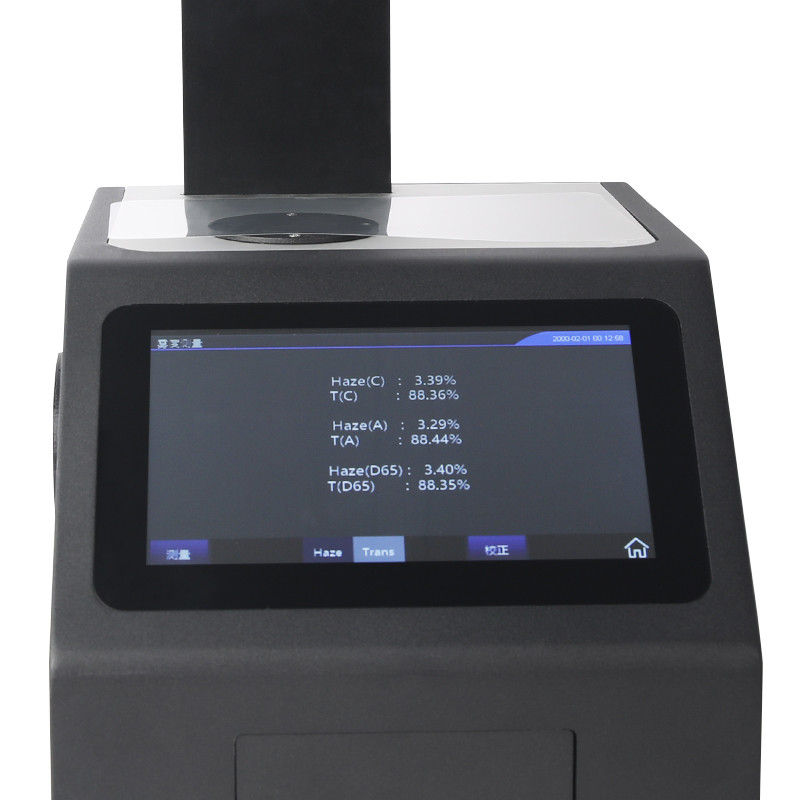

| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB & Print serial port |
| Data Storage | Standard 1000 pcs,sample 20000 pcs |
| Language | Simplified Chinese,Traditional Chinese,English |
| Operating Environment | 0~40℃(32~104°F) |
| Storage Environment | -20~50℃(-4~122°F) |
| Standard Accessory | Power Adapter, User Guide,Quality Management Software (download from the official website),USB cable,0% calibration box,Aperture. |
| Optional Accessory | Micro-printer,Test fixture, standard haze sheet, foot switch |
| Note: | The specifications are subject to change without notice. |
Transmittance and Haze Mesuring Meter Packing List
| Item | Accessory |
| 1 | Powder Adapter |
| 2 | User Guide |
| 3 | Quality Management Software (download from the official website) |
| 4 | USB cable |
| 5 | 0% calibration box |
| 6 | Aperture |
Silk passed ISO 9001, CE, ROHS, FCC, TUV, SCM CERTIFICATES.
