CC120-B Printing Industry Color Proof Station Light Box D65 One Light Source With Drawers

Brand Name: Silk
Model Number: CC120-B
Place of Origin: China
Certification: CE,ISO,RoHs,etc
Minimum Order Quantity: 1pc
Price: 1635 USD
Supply Ability: 1000pcs/month
Tags

colour matching cabinet

pantone color viewing light booth

colour assessment cabinet

Product Details

Model: CC120-B Size: 135*90cm
Light Sources Optional: D65 Brand: Silk
Replacement Light Source: D50, TL84, UV, CWF ,TL83 Quantity: 4 Pcs Lights
Highlight

Printing Color Proof Station Light Box

,

Drawers Color Proof Station Light Box

,

D65 Color Proof Station

Product Description

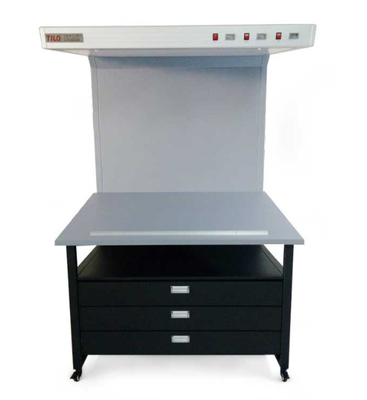

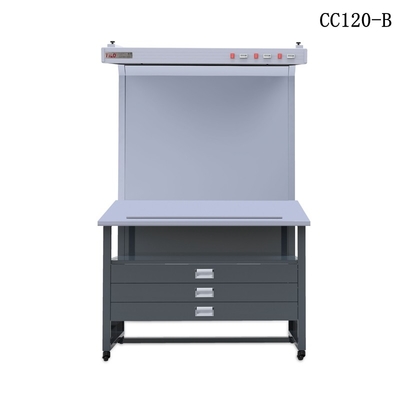

CC120-B Color Proof Station Light Box with Drawers

Brand: Silk

Made in China



One Light source: D65,

Replacement light source: D50,TL84, U35, UV, CWF ,TL83



ColorController Color Viewer color light box is widely applies to printing industry, furnishings and color matching of the printing ink industry etc.. It is a necessity for those industry to control the colors and qualities of products. This Color Viewer color light box supplies one or two or three light sources like D65, D50,TL84.  but this one is only with D65 light source. This machine was controlled by microcomputer, which allows the rapid conversion between each light source. The Color Viewer matching box also had the function of display the running time of each light source.



Light source

In different condition, the object may present different spectrum with same color. Our vision result of the colors will be differently, thereby it will affect us to judge the color accurately by our naked eyes. While according to our customer’s demand, the Color Viewer ,which is the international standard, can provide the right light source you need when you check the colors, such as D65,D50,TL84,UV,U35,CWF etc.. The life-span of lamp depends on the accumulated running time and the turn-on times. When the lamp becomes aging, light instability or the two sides turn black, please replace the lamp timely, otherwise, the checking result will be affected.



Technique Parameter

Light source: imported fluorescent lamp

36W D65 *4





Light Source

D65

Tubes

D65   6500K   36W

Power

 AC220V  50HZ

Wortable Size (cm)

 135*90

Size (cm)

 135*99*217

CC120-B Printing Industry Color Proof Station Light Box D65 One Light Source With Drawers 0

CC120-B Printing Industry Color Proof Station Light Box D65 One Light Source With Drawers 1

Light Source

Color Light Box Application

Color temperature(k)

Power(W)

D65

International standard Artificial Daylight

6500

18

TL84

Applied to stores in Europe, Japan and China

4000

18

CWF

(Cool White Fluorescent)American Standard

4150

18

F

"Sun-setting Light Yellow" incandescent light source(imitation of sunset)

2700

40

UV

Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments

Wavelength:365nm

20

TL83

Applied to stores in Europe

3000

18



CC120-B Printing Industry Color Proof Station Light Box D65 One Light Source With Drawers 2

CC120-B Printing Industry Color Proof Station Light Box D65 One Light Source With Drawers 3

Warranty description:
1. The light source products are guaranteed for one year. If there is any product quality problem within one year, our company will be responsible for repair or replacement;
2. All of our products have standardized packaging. If the user finds the package or the product inside is damaged, please contact us immediately, so that we can handle it for you;
3. Replace professional standard light source lamp after it's damaged;

If you have problems with installation or use, please contact our technical engineers directly.


Easy troubleshooting:

Turn on the switch, but lamps are not bright 1 The power cord is intact and plugged into the outlet;
2 The lamp holder position may be loose,tighten it;
3 If the lamp is damaged or burned out,replace it;
The surface of the board is reflective and dim Clean with a clean, soft cloth;
Light source timer does not count Press the reset button to restart.

Product Highlights

CC120-B Color Proof Station Light Box with Drawers Brand: Silk Made in China One Light source: D65, Replacement light source: D50,TL84, U35, UV, CWF ,TL83 ColorController Color Viewer color light box is widely applies to printing industry, furnishings and color matching of the printing ink industry ...
