Product Model
|

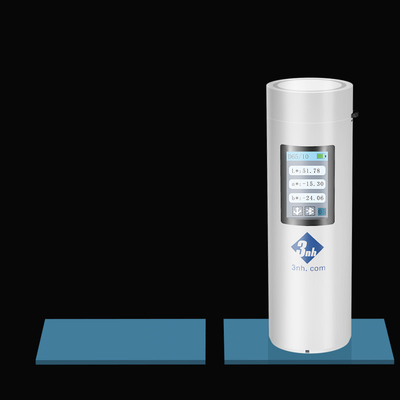

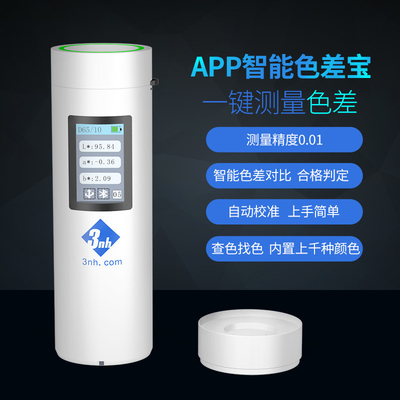

CR3 ColorReader
|
|
Geometry
|
D/8(Diffuse illuminance, 8°reception, SCI), Conforms to standards CIE No.15,GB/T 3978.
|
|
Features
|
Used for color difference quality control in plastic electronics, paint and coating, textile and garment printing and dyeing, ceramics and other industries;

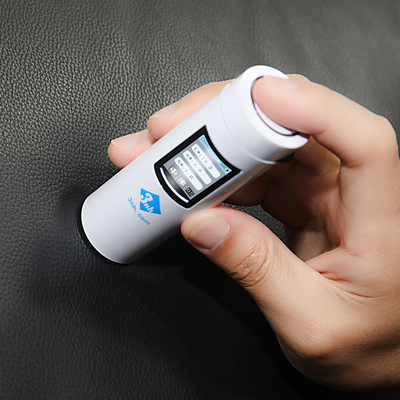

Small size, easy to carry, search for the color cards and multifunction expanded through smartphone APP
|
|

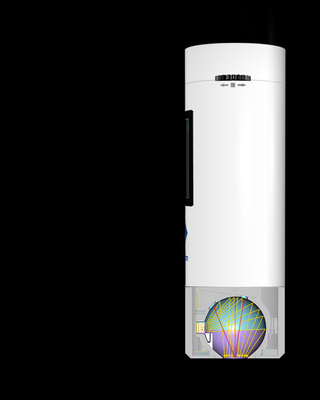

Integrating sphere size
|
Φ20mm
|
|
Illuminant
|
Full spectrum LED light source
|
|
Spectro device
|
Filter spectro
|
|
Sensor
|
CMOS Dual light path sensor
|
|
Wavelength Range
|
400~700nm
|
|
Measuring Aperture
|
Φ8mm
|
|
SCI/SCE
|
SCI
|
|
Color Spaces
|
CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB,HunterLab,βxy, DIN Lab99
|
|
Color Difference Formula
|
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
|
|
Other Color Index
|
WI(ASTM E313,CIE/ISO, AATCC, Hunter),
YI(ASTM D1925,ASTM 313),
Metamerism Index Mt, Color fastness, color strength, and Opacity, 555 color classification, Munsell(C/2) (implemented by mobile
APP)
|
|
Display Accuracy
|
0.01
|
|
Observer Angle
|
2/10°
|
|
Light source
|
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
|
|
Display
|
Sample chromaticity value, color difference value, pass/fail result, color simulation, color deviation, reflectance (partly
through mobile APP)
|
|
Measuring Time
|
1.0s
|
|
repeatability
|
Color:ΔE*ab within 0.05(After warm-up calibration, the average value of measuring the whiteboard 30 times at an interval of 5s)
|
|
Metrology requirements
|
Pass National Metrology
|
|
Measurement Mode
|
Single measurement,Average measurement(2~99times)(Implemented through smartphone App)
|
|
Dimension
|
Ø30X100mm
|
|
Weight
|
88g
|
|
Battery
|
Lithium battery, can do tests continuously for 12000 times in a single full charge
|
|
Light source lifespan
|
5-years more than 3 million times measurements
|
|
Display screen
|
IPS full color screen, 1.14 inch
|
|
Interface
|
Type-C USB; Bluetooth 5.0; Buttons
|
|
Data storage
|
Standards: 10pcs, Samples: 100pcs. Mass storage can be expanded through mobile APP
|
|
Data review
|
The instrument has its own measurement data review function
|
|
White calibration
|
Non-contact automatic calibration
|
|
Settings
|
Instrument can set parameters
|
|
Language
|
Chinese,English
|
|
Working Temperature range
|
0~40℃,0~85%RH(No condensation),Altitude:lower than 2000m
|
|
Storage Temperature Range
|
-20~50℃,0~85%RH(No condensation)
|
|
Standard Accessories
|
Data cable, manual, calibration box, SQCX PC Color quality management software, MOBCCS APP (download from official website)
|
|
Optional Accessories
|
USB mini printer, powder test box
|
|
Note:
|
Technical parameters are for reference only, subject to actual instruments.
|
