Economic Accurate Portable Gloss Meter Test Aluminum Alloy 60 Degree 0 - 1000GU

  • Economic Accurate Portable Gloss Meter Test Aluminum Alloy 60 Degree 0 - 1000GU
  • Economic Accurate Portable Gloss Meter Test Aluminum Alloy 60 Degree 0 - 1000GU
  • Economic Accurate Portable Gloss Meter Test Aluminum Alloy 60 Degree 0 - 1000GU
  • Economic Accurate Portable Gloss Meter Test Aluminum Alloy 60 Degree 0 - 1000GU
  • Economic Accurate Portable Gloss Meter Test Aluminum Alloy 60 Degree 0 - 1000GU
Place of Origin Guangdong China
Brand Name 3nh
Certification CE ROHS FCC ISO9001
Model Number YG60
Minimum Order Quantity 1pcs
Packaging Details Paper box packing
Delivery Time 2-3 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Angle 60° Measurement Range 60°: 0-1000GU
Language Chinese & English Product Name Gloss Meter
Warranty 1 Year Application Construction Industry,printing Ink,metal,stone,plastic
Highlight

60 Degree Accurate Portable Gloss Meter

,

auto calibration Portable Gloss Meter

,

Aluminum Alloy 3nh Gloss Meter
Leave a Message
Product Description

YG60 60°Accurate Gloss Meter

Introduction:

YG60 60°Accurate Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet requirements of JJG696.

YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.

Product Features:

1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.

Economic Accurate Portable Gloss Meter Test Aluminum Alloy 60 Degree 0 - 1000GU 0
Economic Accurate Portable Gloss Meter Test Aluminum Alloy 60 Degree 0 - 1000GU 1


Application:
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
Economic Accurate Portable Gloss Meter Test Aluminum Alloy 60 Degree 0 - 1000GU 2


Model YG60 60°Accurate Gloss Meter
Measuring Angle 60°
Measurement Range 60°: 0-1000GU
Division Value 0.1GU
Measuring Modes Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time 0.5S
Repeatability 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
Accurate Conform with JJG696 requirements of gloss meter
Auto Power-off Time Within 30s-120s
Long-time Calibration Automatically check and made the calibration
Language Chinese & English
Storage 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface USB
PC Software GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range 0-40℃(32-104° F)
Storage Temperature Range -20-50℃(-4-122° F)
Humidity Range < 85% RH, without condensation
Standard Accessories USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer,Bluetooth
Notification: the technical parameter is only for reference

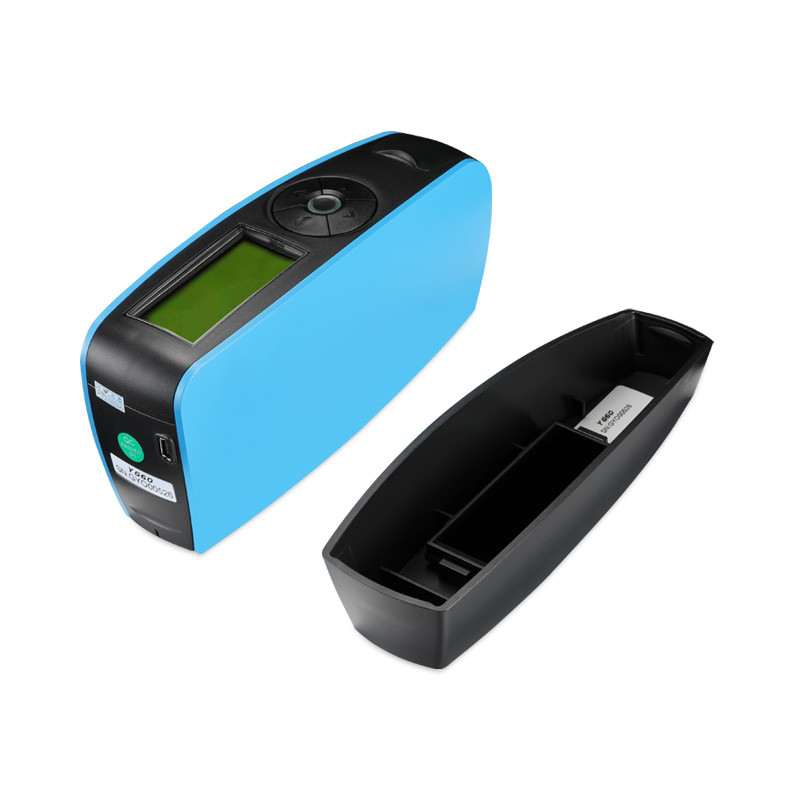

Packing box

Economic Accurate Portable Gloss Meter Test Aluminum Alloy 60 Degree 0 - 1000GU 3
