60 Degree Economic Accurate Portable Digital Gloss Meter For Floor Gloss Meter

  • 60 Degree Economic Accurate Portable Digital Gloss Meter For Floor Gloss Meter
  • 60 Degree Economic Accurate Portable Digital Gloss Meter For Floor Gloss Meter
  • 60 Degree Economic Accurate Portable Digital Gloss Meter For Floor Gloss Meter
  • 60 Degree Economic Accurate Portable Digital Gloss Meter For Floor Gloss Meter
Place of Origin Guangdong China
Brand Name 3nh
Certification CE ROHS FCC ISO9001
Model Number NHG60
Minimum Order Quantity 1pcs
Packaging Details Paper box packing
Delivery Time 2-3 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Angle 60° Measurement Range 60°: 0-1000GU
Language Chinese & English Product Name Gloss Meter
Warranty 1 Year Application Construction Industry,printing Ink,metal,stone,plastic
High Light

60 Degree Floor Digital Gloss Meter

,

Economic Accurate Floor Digital Gloss Meter

,

Chinese English Portable Digital Gloss Meter
Leave a Message
Product Description

NHG60 60 degree gloss meter



Introduction:

NHG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

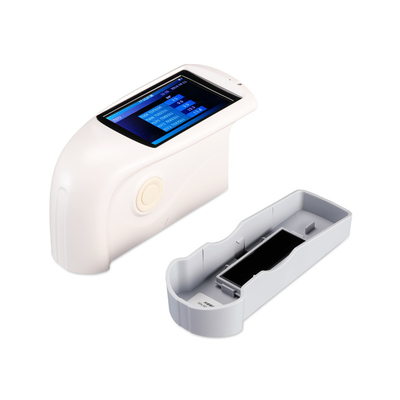

60 Degree Economic Accurate Portable Digital Gloss Meter For Floor Gloss Meter 0

Features:



1. 60° angle for semi gloss

2. Display 5 sets of measurement data, good for comparison

3. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

4. Continuous mode to check uniformity over large areas

5. Connect to PC, more extend functions

6. Input gloss value manually

7. Large touch screen operation, easy to use

8. Beauty appearance, good man-machine communication interface

9. Powerful functions to meet many different requirements

10. Large storage to save over 5000 data

11. Built-in lithium ion rechargeable battery.

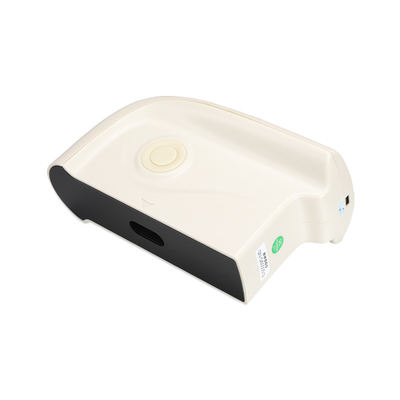

60 Degree Economic Accurate Portable Digital Gloss Meter For Floor Gloss Meter 1

Specifications:



NHG60 60° Precise Gloss Meter　
Model NHG60
Measure Angle 60°
Comply with standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457
Measuring Area (mm) 9X15
Measurement Range 0~1000GU
Division Value 0.1GU
Measurement Range Repeatability Reproducibility 0-10GU 10-100GU 100-1000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.2 , ± 1.2%
Measuring Time 0.5s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3.7V,3200mAh Li-ion Battery, >10000 times(within 8 hours)
Viewing Screen TFT 3.5 inch, capacitive touch screen
Interface USB/RS-232
Data Save Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories Miniature Printer
Note

The specifications are subject to change without notice.





Application:
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.

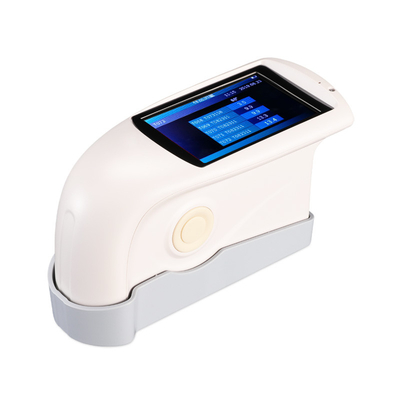

60 Degree Economic Accurate Portable Digital Gloss Meter For Floor Gloss Meter 2

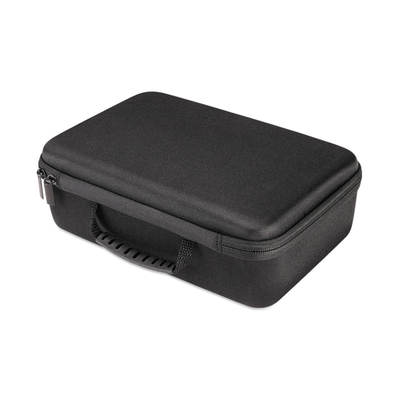

Packing box
60 Degree Economic Accurate Portable Digital Gloss Meter For Floor Gloss Meter 3
