Plastic Metal Three Angle Glossmeter 20 60 85 Degree Gloss Meter For Paint

  • Plastic Metal Three Angle Glossmeter 20 60 85 Degree Gloss Meter For Paint
  • Plastic Metal Three Angle Glossmeter 20 60 85 Degree Gloss Meter For Paint
  • Plastic Metal Three Angle Glossmeter 20 60 85 Degree Gloss Meter For Paint
  • Plastic Metal Three Angle Glossmeter 20 60 85 Degree Gloss Meter For Paint
Place of Origin Guangdong China
Brand Name 3nh
Certification CE ROHS FCC ISO9001
Model Number HG268
Minimum Order Quantity 1pcs
Packaging Details Paper box packing
Delivery Time 2-3 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Angle 20° 60° 85° Measurement Range 20°:0~1000GU 60°:0~1000GU 85°：0~160GU
Language Chinese & English Product Name Gloss Meter
Warranty 1 Year Application Construction Industry,printing Ink,metal,stone,plastic
High Light

auto calibration Three Angle glossmeter

,

Concise appearance gloss meter for paint

,

Three Angle gloss meter for paint
Leave a Message
Product Description

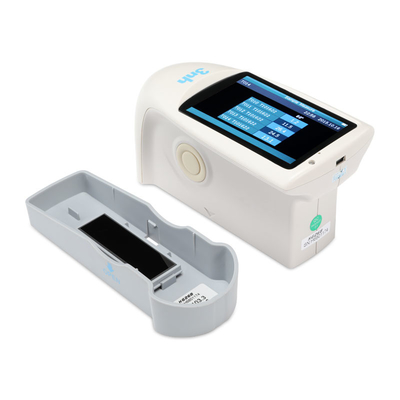

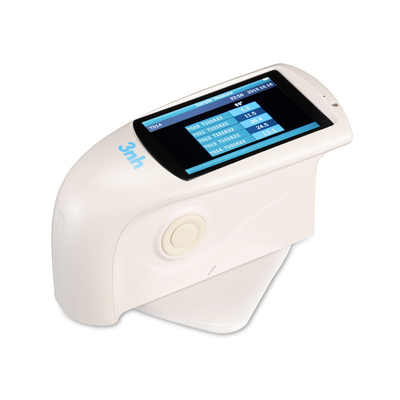

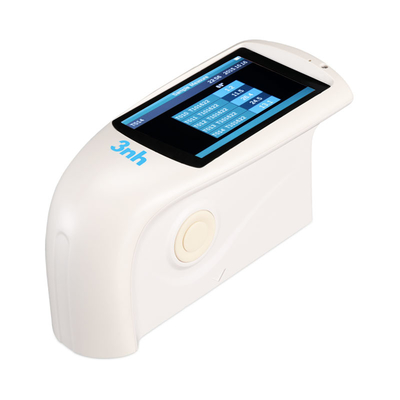

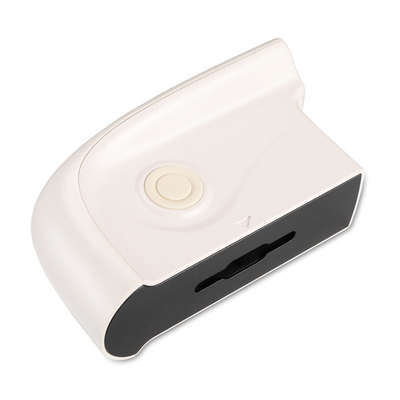

HG268 Tri-angle Gloss Meter

Introduction:

Features:



1. 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand

2. Concise appearance, feel good

3. Display 5 sets of measurement data, good for comparison

4. Built-in lithium ion rechargeable battery

5. Basic model measurement can meet basic glossiness testing requirements

6. Connect to PC, more extend functions

7. One button for all angles measurement at the same location

8. Comply with international standards

9. Stable performance, easy to read data.

Plastic Metal Three Angle Glossmeter 20 60 85 Degree Gloss Meter For Paint 0

GQC6 Software Introduction:



GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.

Plastic Metal Three Angle Glossmeter 20 60 85 Degree Gloss Meter For Paint 1





Application:
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
Plastic Metal Three Angle Glossmeter 20 60 85 Degree Gloss Meter For Paint 2




Specifications:



HG268 Tri-angle Gloss Meter

Model: HG268
Measuring Angle 20°/60°/85°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm) 20°: 10x10 60°: 9x15 85°: 5x36
Measuring Range 20°:0~1000GU 60°:0~1000GU 85°:0~160GU
Division Value 0.1GU

Measurement Range

Repeatability

Reproducibility

 0-10GU 10-100GU 100-1000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.5 , ± 1.5%
Measuring Time 0.1s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3.7V,3200mAh Li-ion Battery ,>10000 times(within 8 hours)
Display TFT 3.5 inch
Interface USB/RS-232
Storage Basic mode: 1000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.


Packing box

Plastic Metal Three Angle Glossmeter 20 60 85 Degree Gloss Meter For Paint 3
