3nh YD5010 Plus Portable Digital Densitometer Similar To Xrite EXact 2 Plus

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number YD5010 PLUS
Minimum Order Quantity 1Unit
Price Please send inquiry

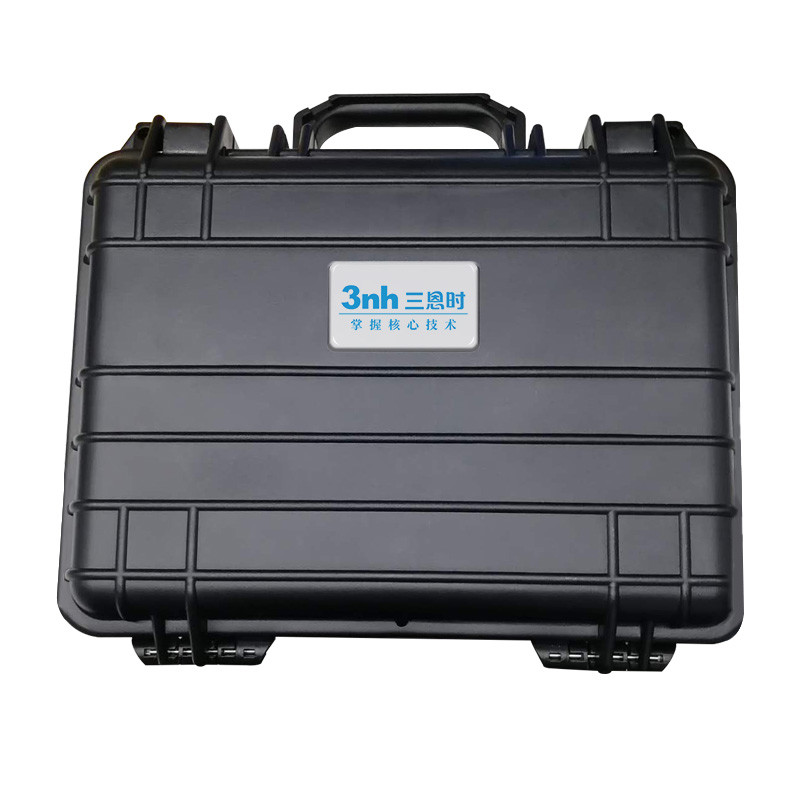

Packaging Details 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Testing Conditions M O, M 1,M 2 , M 3 Standard ISO 5-4,CIE No.15
Measurement Geometry 45/0(45 Ring-shaped Illumination, 0 Degree Viewing Angle) Wavelength Range 400~700nm
Repeatability Delta E*≤0.03 Wavelength Interval 10nm
High Light

10nm Portable Digital Densitometer

,

PC software Portable Digital Densitometer

,

CMYK density grating spectrophotometer

Leave a Message
Product Description

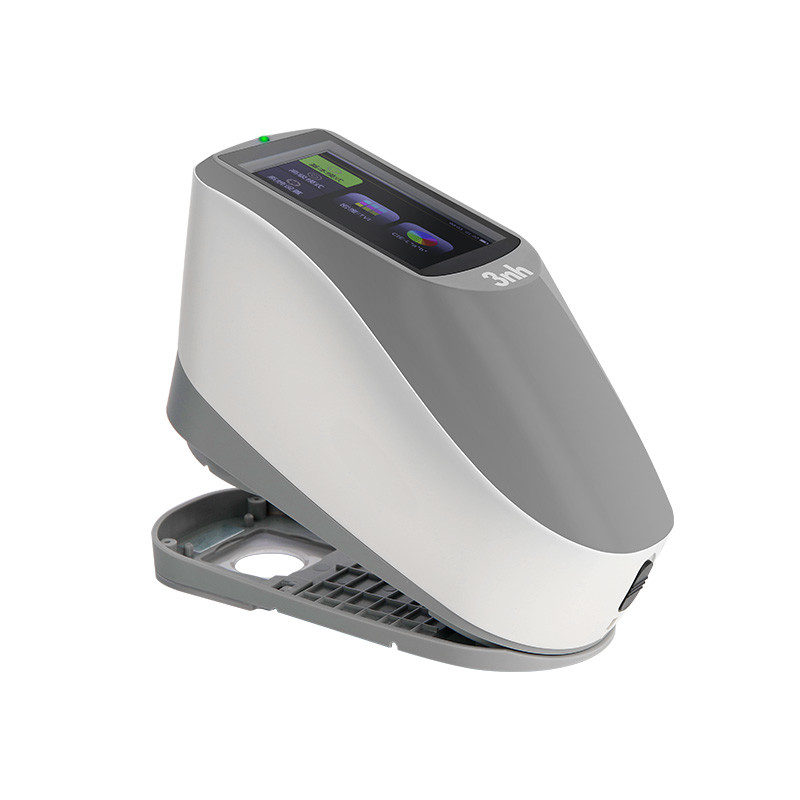

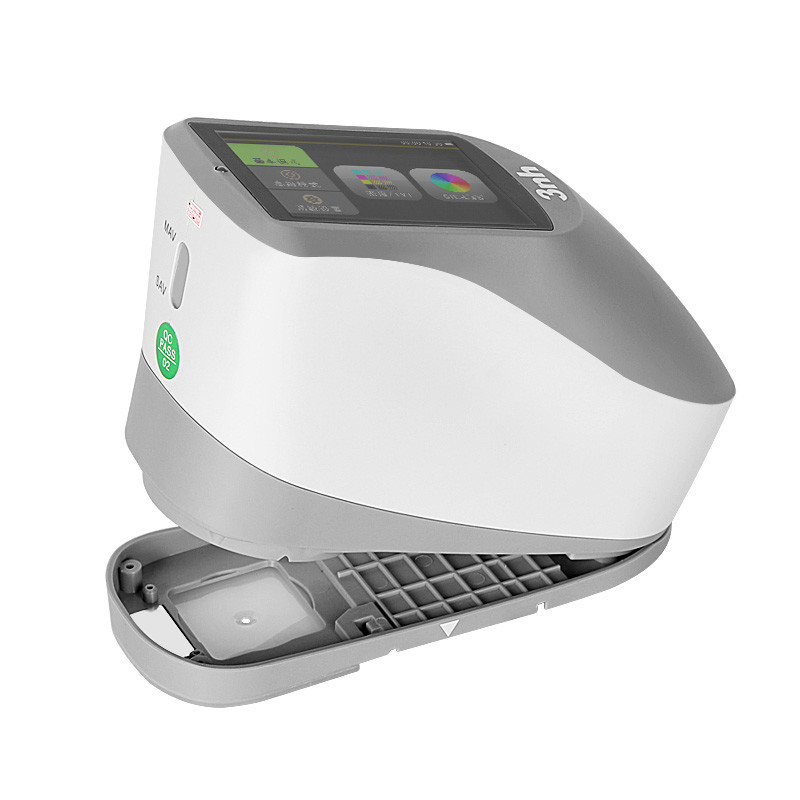

3nh YD5010 Plus 45/0 Standard Grating SpectroDensitometer
This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
3nh YD5010 Plus Portable Digital Densitometer Similar To Xrite EXact 2 Plus 0
FEATURES AT A GLANCE
Product Features
1. Perfect combination of the beautiful appearance and the ergonomic structure design;
2. Combined LED light sources with long life and low power consumption, including UV light;
3. Switchable apertures: Φ2/4/8/20mm;
4. CMYK density and Lab value;
5. 3.5-inch TFT true-color screen, capacitive touch screen;
6.Two standard observer angles: 2/10, multiple light source modes and color systems;
7.USB mode is widely useful;
8.Large-capacity storage space
9.Especially suitable for process control and quality control of printing plants;
10. PC software has powerful function expansion.
3nh YD5010 Plus Portable Digital Densitometer Similar To Xrite EXact 2 Plus 1



3nh YD5010 Plus Portable Digital Densitometer Similar To Xrite EXact 2 Plus 2

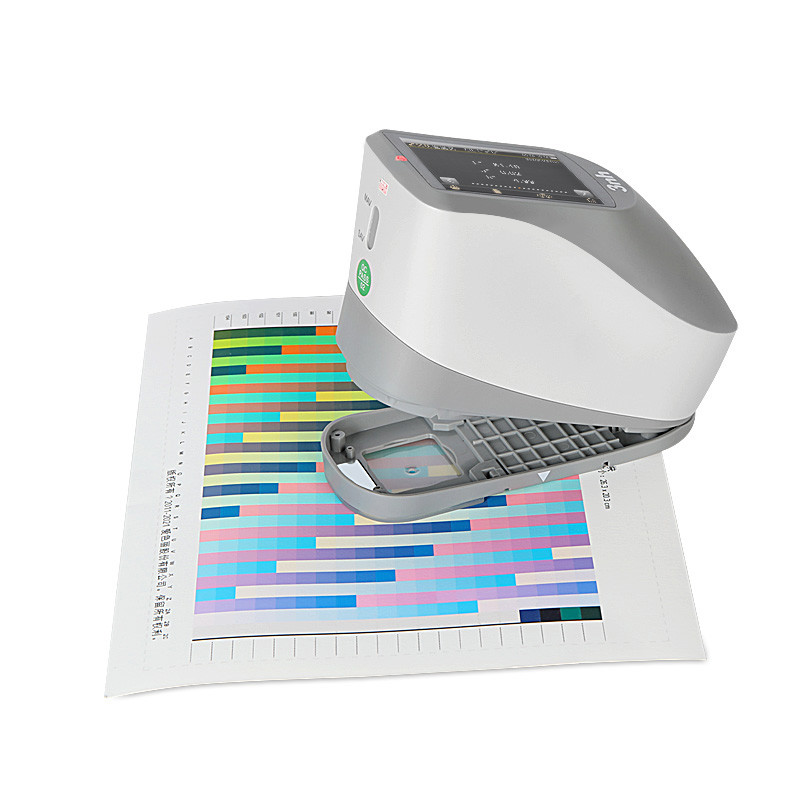

Measure color block
3nh YD5010 Plus Portable Digital Densitometer Similar To Xrite EXact 2 Plus 3
CMYK value
3nh YD5010 Plus Portable Digital Densitometer Similar To Xrite EXact 2 Plus 4
Lab value
PRODUCT SPECIFICATIONS
Model
YD5010 plus spectrodensitometer
Measurement Geometry
45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
Features
Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics
and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of
optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light Source
Combined LED Light, UV Light
Spectral separation device
Concave Grating
Detector
256 Image Element Double Array CMOS Image Sensor
Wavelength Range
400~700nm
Wavelength Pitch
10nm
Half Bandwidth
10nm
Measurement Conditions
Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Density Standards
ISO Status A, E, I, T
Density index
Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error
and gray level
Measurement aperture
Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional
Color Spaces
CIE LAB,XYZ,Yxy,LCh
Color Difference Formula
ΔE*ab,ΔE*94,ΔE*00
Other Colorimetric Index
/
Observer Angle
2°/10°
Illuminants
A,C,D50,D55,D65,D75,F2,F7,F11,F12
Measurement Time
About 1.5s
Repeatability
Density: Within 0.01 D

Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white
calibration) Except M3
Inter-instrument Error
Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
Measurement mode
Single Measurement, Average Measurement(2-99)
Size(L*W*H)
184*77*105mm
Weight
About 600g
Power source
Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span
5 years, more than 3 million times measurements
Display
3.5-inch TFT color LCD, Capacitive Touch Screen
Interface
USB,
Data memory
10000 pcs
Language

Simplified Chinese, English, Traditional Chinese
Working Environment
Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment
Temperature: -20~50℃; Humidity: 0~85% (No Condensation))
Standard Accessory
Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration
Board, Protective Cover,Polarization filter box,Locating Plate
Optional Accessory
Micro Printer
Notes: The specifications are subject to change without notice.
