PS2080 Fat Girl Colour Measurement Spectrophotometer Electronic Color Spectrometer

  • PS2080 Fat Girl Colour Measurement Spectrophotometer Electronic Color Spectrometer
  • PS2080 Fat Girl Colour Measurement Spectrophotometer Electronic Color Spectrometer
  • PS2080 Fat Girl Colour Measurement Spectrophotometer Electronic Color Spectrometer
  • PS2080 Fat Girl Colour Measurement Spectrophotometer Electronic Color Spectrometer
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RoHS
Model Number PS2080
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 380*310*210mm, 18KG, Aluminum Box Package
Delivery Time 5-8 Days
Payment Terms T/T
Supply Ability 1000 Unit per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry D/8 Repeatibility DeltaE ≤ 0.02
Aperture Apertures:MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm；LAV:1x3mm Power Electronic
Reflectance Range 0~200% Sensor CMOS Dual Beam Splitting Sensor
High Light

USB Bluetooth Colour Measurement Spectrophotometer

,

FCC Colour Measurement Spectrophotometer

,

3nh Electronic Color Spectrometer
Leave a Message
Product Description
Product Description



PS2080 "Fat girl" spectrophotometer spectrocolorimeter
"Fat girl" is the nickname of PS20 series domestic color spectrometer.

PS2080 "Fat girl" spectrophotometer is 3nh developed by CMOS dual-channel spectrophotometer sensor, which is not only a colorimeter, but also a spectrophotometer, with excellent repeatability and the inner-instrument error. The measurement data is stable, accurate and reliable. with a comfortable and round appearance more people love it. It also has quality management software to support Android, IOS, Windows, Hongmeng system, wechat small program, color cloud, etc., to facilitate quality monitoring and data management.

PS2080 color difference analyzer spectrocolorimeter is equipped with Φ8mm(platform + tip), Φ4mm(platform + tip), 1x3mm(platform + tip) six measuring caliber, widely used for plastic electronics, paint ink, textile and garment printing, printing, ceramics and other industries color difference quality control; UV is included for the measurement of fluorescent samples.

Features:
1. Adopt D/8 optical structure and SCI/SCE mode.
2. Full wavelength band LED lgight source + UV light.
3. CMOS dual beam splitting sensor.
4. Non-contact calibration board.
5. Multi A variety of color measurement space, a variety of observation light sources.
6. Easy to use.
7. Cloud storage, portable massive color database.
8. Metrological calibration report.
9. Camera locating.
10. PC color management software

Specifications:
Model PS2070 PS2080 spectrocolorimeter
Optical Geometry D/8(diffused illumination, 8-degree viewing angle), SCI/SCE (specular component included/specular component excluded) Mode, Comply toCIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Adopt CMOS dual beam splitting sensor;Used for color difference quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, also for fluorescence sample measurement.
Light Source Combined full spectrum LED light source, UV light source
Integrating Sphere Size Φ40mm
Sensor CMOS dual beam splitting sensor
Wavelength Range 400-700nm
Measuring Aperture PS2070 Four Apertures:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
PS2080 Six Apertures:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm;LAV:1x3mm
Specular Component SCI/SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index Spectral reflectance,WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),Metamerism Index Mt,Staining Fastness, Color Fastness,Color Strength, Opacity,555 tone classification, Munsell(C/2)(Mobile APP implementation)
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65
Display Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time About 1s
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.02 (After preheating and correction, the average value of the whiteboard was measured for 30 times at an interval of 5s);Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles)
Displayed Accuracy 0.01
Measured Reflectance Range 0-200%
Reflectance Resolution 0.01%
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Stabilizer position+camera locating
White Calibration mode Non-contact automatic calibration
Dimension 94X68X188mm
Weight About 270g
Battery Lithium battery,3.7V,5000mAh,8000 cycles in 8 hours
Illuminant Life Span More than 1.2 million measurements over 10 years
Screen 2.8 inch TFT true color, Capacitive Touch Screen
Interface USB,Bluetooth®5.0
Data Storage Standard 500 Pcs, Sample 10000 Pcs(One data is able to include SCI/SCE);PC mass storage
Software support Andriod,IOS,Windows,Wechat small program, Hongmeng
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing),Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, SQCX PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, Aperture
Optional Accessory USB Micro Printer, Powder Test Box
Notes Technical parameters are only for reference, subject to the actual sale of the product

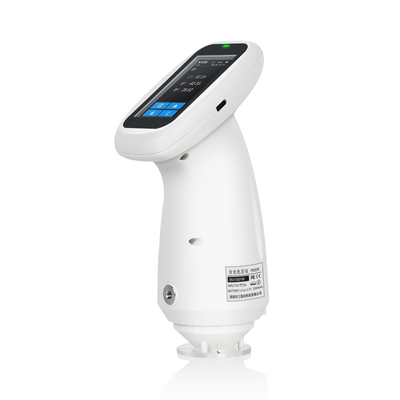

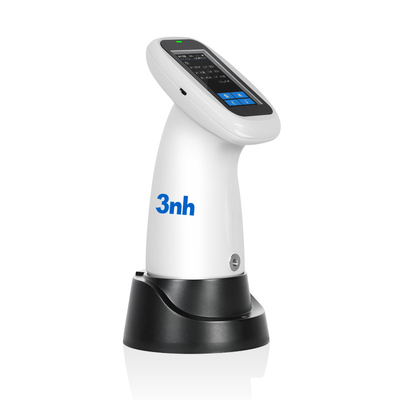

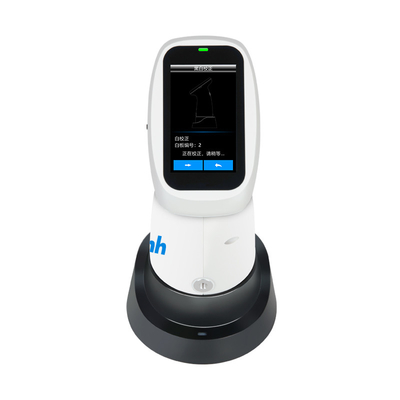

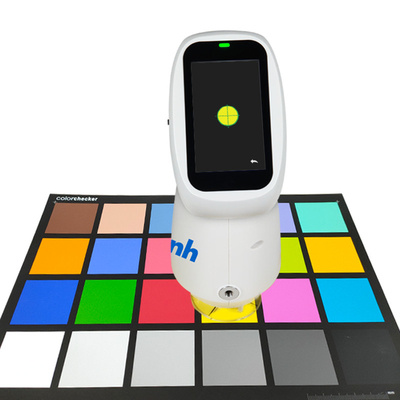

Product Images

PS2080 "Fat girl" spectrophotometer spectrocolorimeterPS2080 "Fat girl" spectrophotometer spectrocolorimeterPS2080 "Fat girl" spectrophotometer spectrocolorimeterPS2080 "Fat girl" spectrophotometer spectrocolorimeter
