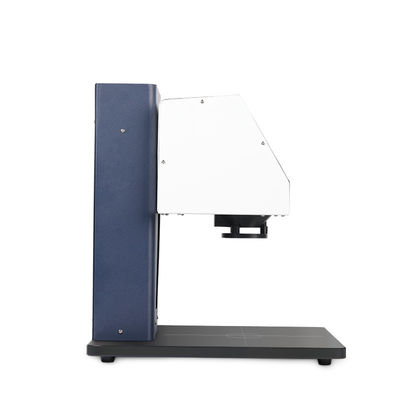

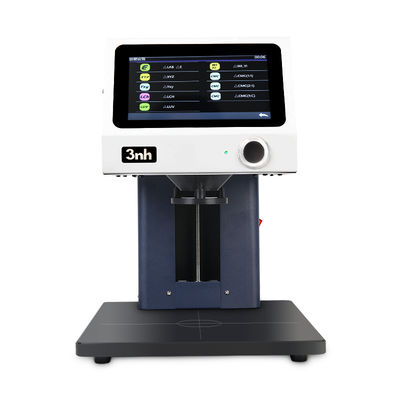

Non Contact Benchtop Color Spectrophotometer Professional Touch Screen For Food

  • Non Contact Benchtop Color Spectrophotometer Professional Touch Screen For Food
  • Non Contact Benchtop Color Spectrophotometer Professional Touch Screen For Food
  • Non Contact Benchtop Color Spectrophotometer Professional Touch Screen For Food
Place of Origin Guangdong China
Brand Name 3nh
Certification CE ROHS FCC ISO9001
Model Number YL4520
Minimum Order Quantity 1pcs
Packaging Details instrument box size of packaging 435 x 205 x 345mm
Delivery Time 2-3 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength Range 400-700nm,360nm~780nm Observer Angle 2°/10°
Wavelength Pitch 10nm Product Name Color Spectrophotometer,colorimeter Instrument
Power Electronic Measurement Range Color Test Machine
Application Paint Used Spectrophotometer,Textile,spectrophotometer,colorimeter Data Memory 10000 Sample,50000 Standards
High Light

Touch Screen Color Spectrophotometer

,

Professional Color Spectrophotometer

,

Food Benchtop Spectrophotometer
Leave a Message
Product Description

Introduction:

YL4520 spectrophotometer is a color measuring instrument with 45/0 optical geometry(45 ring-shaped illumination, vertical viewing), to achieve precise non-contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc, which is developed by 3nh independently with independent intellectual property.

YL4520 non-contact benchtop spectrophotometer can be applied for accurate color analysis and transmission in laboratories and R & D industries; it can also be used for accurate color measurement and quality control of automated production lines; it is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries. Its unique innovative design can not only provide non-contact measurement scheme directly from the production line, but also ensure stable and high-precision measurement results.



YL4520 non-contact spectrophotometer will not touch the sample in the measurement process, to prevent damage to the sample, but also to avoid cross contamination.



Non Contact Benchtop Color Spectrophotometer Professional Touch Screen For Food 0



Non Contact Benchtop Color Spectrophotometer Professional Touch Screen For Food 1



Features

1. non-contact, 45 / 0 geometric optical structure to measure the reflectance and chromaticity of objects

2. The movable measuring head moves up and down according to the actual height of the measured object

3. Large touch screen measurement interface, real-time display of measurement data, to realize more measurement functions

4. Multiple measurement modes (sample, quality control, continuous statistical mode) can be selected to meet the personalized needs



Non Contact Benchtop Color Spectrophotometer Professional Touch Screen For Food 2







Specification

Model YL4520
Optical Geometry 45/0 method(45 ring-shaped illumination, vertical viewing);Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833
Features 45/0 non- contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries.
Light Source Full spectrum LED light
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm/10nm output
Reflectance Range 0~200%
Measuring Aperture Φ20mm
Non-contact Distance 7.5mm
Sample Height 0~150mm
Distance Adjustment Method Manual adjustment(test height can be stored)
Measuring mode Sample mode/QC Mode/Continuous statistics mode
Locating Method Camera Locating
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),

Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset
Measuring Time About 1.5s
Data Storage Sample mode + QC mode: 30,000; Continuous statistics mode: 10,000

Repeatability
Spectral reflectance: Standard deviation within 0.08%
Chromaticity value: Within ΔE*ab 0.05 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.25(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2 ~ 99 times)
Dimension 330*250*370mm
Weight About 10 kg
Power Supply DC 24V, 3A Power Adapter
Illuminant Life Span 5 years, more than 3 million times measurements
Display Screen 7" TFT Capacitive Screen-touch Display
Data Port USB/RS-232
Language Simplified Chinese,Traditional Chinese,English
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity,
Notes The specifications are subject to change without notice.
