High Precision Gloss Level Meter , Portable Gloss Meter For Paper Industry
Product Details
| Measuring Angle: | 60° | Measuring Area(mm): | 60°:9x15 |
|---|---|---|---|
| Measuring Range(GU): | 1000 | Division Value: | 0.1GU |
| Tolerance: | ±1.2, ±1.2% | Data Port: | USB |
| Highlight |
Silk gloss meter,gloss level meter,High Precision Gloss Level Meter |
||
Product Description

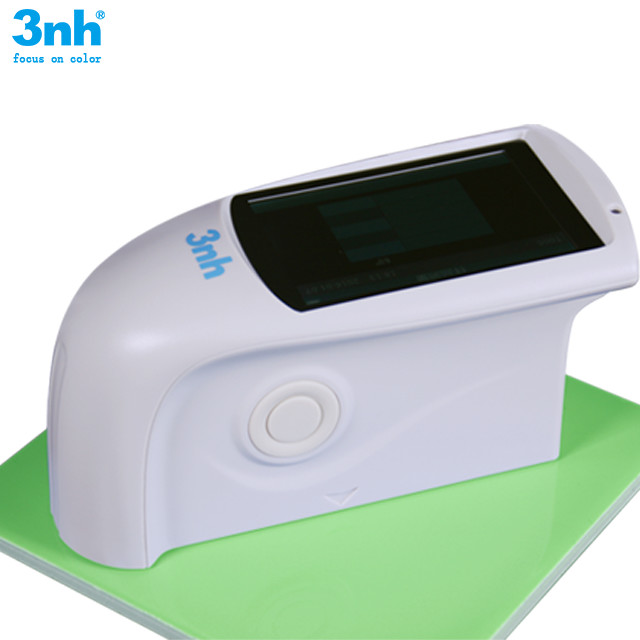

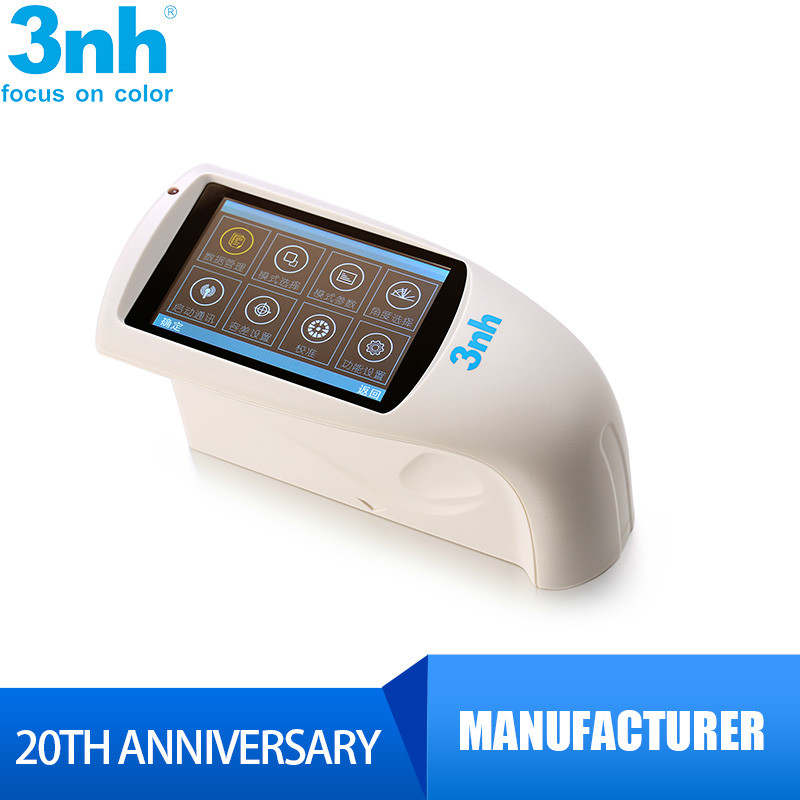

NHG60 Touch Screen Single Angle Gloss Meter with PC Software Silk NHG60 1000gu
NHG60 gloss meter features with 60°angle, manufactured according to ISO2813 and GB/T 9754.It is also compatible with the standards of ASTM D523,ASTM D2457.NHG60 conforms to JJG696 first class gloss meter working requirement,corresponding with CIE 1931(2°)under CIE C light source.
NHG60 gloss meter can test material with gloss(0-1000Gu),and universally apply to paint,ink,stoving varnish,coating,wood products;marble,granite,vitrified polished tile,pottery brick and porcelain; plastic,paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Specifications:
NHG60 60° Precise Gloss Meter
Model:NHG60
Measure Angle 60°Comply with standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457
Measuring Area (mm):9X15
Measurement Range:0~1000GU
Division Value:0.1GU
Measurement Range: 0-10GU 10-100GU 100-1000GU
Repeatability:± 0.1GU ± 0.2GU± 0.2%GU
Reproducibility:± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard:Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding:Corresponding with CIE 1931(2°)under CIE C light source
Errors:±1.2 ,±1.2%
Measuring Time:0.5s
Battery;3200mAh Li-ion Battery,>10000 times(within 8 hours)
Viewing Screen:TFT 3.5 inch, capacitive touch screen
Interface:USB/RS-232
Data Save Basic mode: 1000, Statistical Mode: 5000, Continuous mode:5000
Software:GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature:0~40℃(32~104°F)
Storage Temperature:-20~50℃(-4~122°F)
Humidity:＜85% relative humidity, no condensation
Standard Accessories:Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Technical Specification
| Parameters | Tri-angle Gloss Meter NHG268 |
| Measuring Angle |
20° & 60° & 85° Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area | 20°: 10x10mm 60°: 9x15mm 85°: 5x36mm |
| Measuring Range | 20°:0~2000GU 60°:0~1000GU 85°:0~160GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility |
0-10GU 10-100GU 100-2000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform to the Working Requirements for JJG696 First Class Glossmeter |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±1.2, ±1.2% |
| Measuring Time | 0.1s |
| Display Size | TFT 3.5" |
| Screen-touch | Yes, Capacitive Touch Screen |
| Data Port | USB |
| Language | Chinese, English |
| Battery | 3200mAh Li-ion Battery , more than 10000 times (within 8 hours) |
| Dimension | 160*75*90mm |
| Weight | 350g |
| Measuring Mode&Storage |
Basic Mode: 1000 Statistical Mode: 5000 Continuous Mode: 5000 |
| PC Software | GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions |
| Operation Temperature | 0~40℃ (32~104℉) |
| Storage Temperature | -20~50℃ (-4~122℉) |
| Humidity | <85% Relative Humidity, No Condensation |
| Standard Accessories | Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate |
| Optional Accessories | Mini Printer |
