High Accuracy Multi Angle Gloss Meter Dual Languages For Electroplating
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Angle | 20° & 60° & 85° | Measuring Area(mm) | 20°:10x10 60°:9x15 85°:5x36 |
|---|---|---|---|
| Measuring Range(GU) | 20°:0~1000 60°:0~1000 85°:0~160 | Division Value | 0.1GU |
| Tolerance | ±1.5, ±1.5% | Data Port | USB |
| High Light | 3nh gloss meter,gloss level meter |
||
Product Description

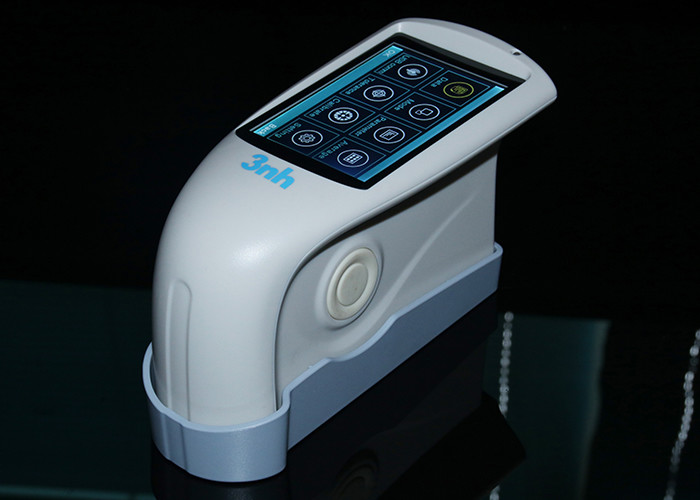

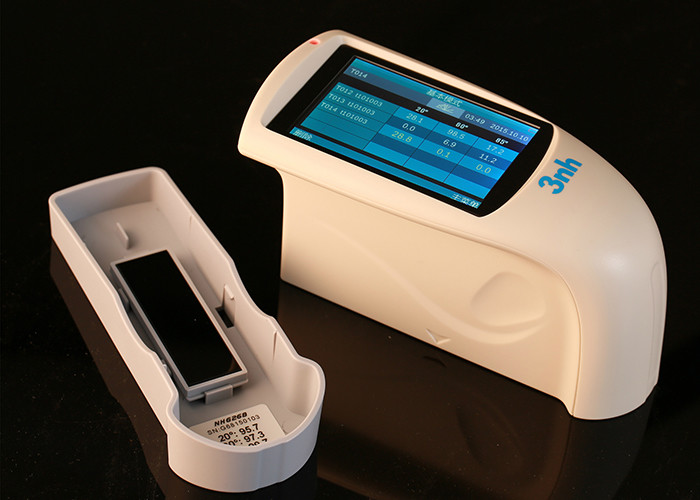

High Accuracy Tri-angle Gloss Meter HG268 Portable Glossmeter Simple Gloss Meter Measuring Range 0-1000GU
Technical Specification
| Parameters | Tri-angle Gloss Meter HG268 |
| Measuring Angle |
20° & 60° & 85° Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area | 20°: 10x10mm 60°: 9x15mm 85°: 5x36mm |
| Measuring Range | 20°:0~1000GU 60°:0~1000GU 85°:0~160GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility |
0-10GU 10-100GU 100-2000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform to the Working Requirements for JJG696 First Class Glossmeter |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±1.5, ±1.5% |
| Measuring Time | 0.1s |
| Display Size | TFT 3.5" |
| Screen-touch | Yes, Capacitive Touch Screen |
| Data Port | USB |
| Language | Chinese, English |
| Battery | 3200mAh Li-ion Battery , more than 10000 times (within 8 hours) |
| Dimension | 160*75*90mm |
| Weight | 350g |
| Measuring Mode&Storage |
Basic Mode: 1000pcs |
| PC Software | GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions |
| Operation Temperature | 0~40℃ (32~104℉) |
| Storage Temperature | -20~50℃ (-4~122℉) |
| Humidity | <85% Relative Humidity, No Condensation |
| Standard Accessories | Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate |
| Optional Accessories | Mini Printer |
Brief Introduction
1. HG268 three angles glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.
2. As the whole world's first glossmeter which is with a ultra-large display, HG268 features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can be manually input.
3. HG268 has one measuring modes : Basic Mode, the simplest sample measurement mode.
4. Now HG268 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.
Frequently Asked Questions
1. Which models are the equivalent models to HG268 Gloss Meter?
Answer: BYK4563 is the equivalent model to 3nh HG268.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
