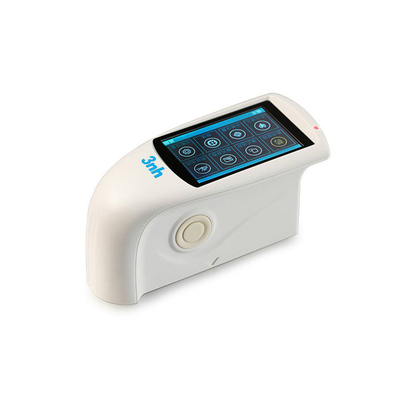

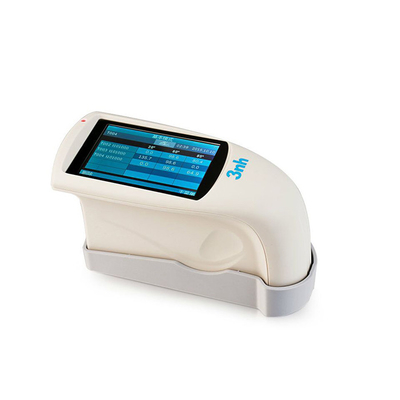

High Precise Multi Angle Gloss Meter HG268 Large Screen 3.5 Inch 0.1GU Division Value
Product Details
| Measuring Angle: | 20° & 60° & 85° | Measuring Area(mm): | 20°:10x10 60°:9x15 85°:5x36 |
|---|---|---|---|
| Measuring Range(GU): | 20°:0~1000 60°:0~1000 85°:0~160 | Division Value: | 0.1GU |
| PC Software: | GQC6 Spftware | Measuring Time: | 0.1s |
| Highlight |
Silk gloss meter,gloss level meter |
||
Product Description
Large screen 3.5 inch precise gloss meter HG268 to replace gm-6 20/60/85 degree gloss meter
Brief Introduction
HG268 tri gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class glossmeter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
HG268 tri gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
Technical Specification
| Parameters | Tri-angle Gloss Meter HG268 |
| Measuring Angle |
20° & 60° & 85° Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area | 20°: 10x10mm 60°: 9x15mm 85°: 5x36mm |
| Measuring Range | 20°:0~1000GU 60°:0~1000GU 85°:0~160GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility |
0-10GU 10-100GU 100-2000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform to the Working Requirements for JJG696 First Class Glossmeter |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±1.5, ±1.5% |
| Measuring Time | 0.1s |
| Display Size | TFT 3.5" |
| Screen-touch | Non |
| Data Port | USB |
| Language | Chinese, English |
| Battery | 3200m Ah Li-ion Battery , more than 10000 times (within 8 hours) |
| Dimension | 160*75*90mm |
| Weight | 350g |
| Measuring Mode&Storage |
Basic Mode: 1000pcs |
| PC Software | GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions |
| Operation Temperature | 0~40℃ (32~104℉) |
| Storage Temperature | -20~50℃ (-4~122℉) |
| Humidity | <85% Relative Humidity, No Condensation |
| Standard Accessories | Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate |
| Optional Accessories | Mini Printer |
Frequently Asked Questions
1. Which models are the equivalent models to HG268 Gloss Meter?
Answer: BYK4563 is the equivalent model to Silk HG268.
2. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
