VC-118-X Adjustable Color Temperature&Luminance Camera Test Cabinet

VC-118-X camera test cabinet is the latest product developed by 3nh. It is equipped with 2300K to 8000K color temperature high color-rendering index LED light source so it is able to adjust the color temperature and luminance.

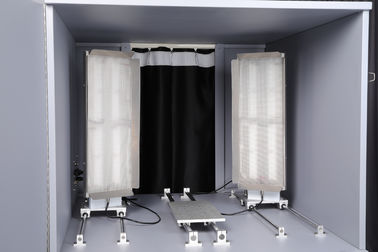

VC-118-X camera test cabinet can test lens of different angles but using the same chart. Built-in moving sliding table, you can easily move the lens back and forth. It equipped with LED lamps with high color rendering index, no flicker, long life and stable color temperature.The user can rotate the light plate in any direction according to the different situations, so as to obtain a more uniform lighting environment.

VC-118-X camera test cabinet (Figure 1) is mainly consisted of box, lamp control box and bracket.

Figure 1

Product Specification

1. Outline Dimension (Figure 2): 1150mm*1045mm*1728mm

2. Inner Dimension: 1106mm*1001mm*800mm

Window Dimension: 447mm*700mm

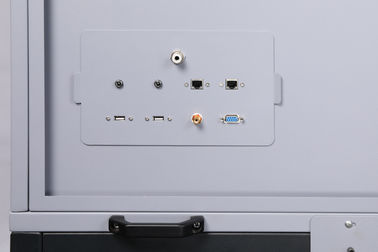

3. Connector installation plate Dimension: 250mm*150mm

Connector installation plate consists of : 1 pcs RS232 connector, 1 pcs AV seat, 2 pcs USD connector, 2 pcs Cable base, 2 pcs DC seat, 1 pcs trachea quickfit PM06

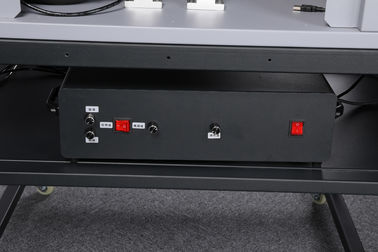

4. Lamp Control Box Dimension (Figure 4): 508mm*248mm*131mm

5. Operating Temperature: 0~40℃, the relative humidity ≤ 85% (non condensing)

6. Input Voltage: AC22OV, 50/60Hz (maximum power consumption is 160W)

7. Net Weight: 130kg

Light Source Instruction

The standard lamp of VC-118-X is 2300K to 8000K color temperature high color-rendering index LED light source.

Camera Testing

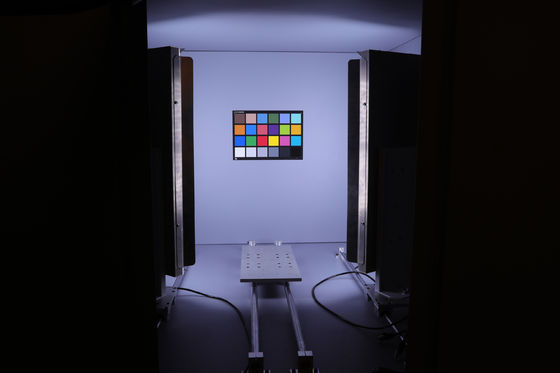

VC-118-X camera test cabinet is special designed for camera test to test the lens of different viewing angles . The maximum size of the chart used in this cabinet is 2X ISO 12233 Resolution Test Chart (712mm*400mm). Except this, it is also suitable for other charts to test wide-angle lens and fisheye lens. All the charts are magnetic, and able to be placed in any position of the cabinet according to users’ requirement.
