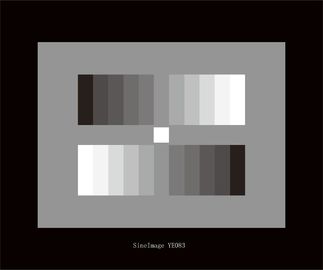

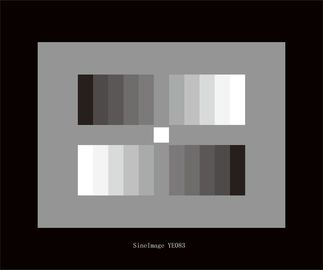

3nh YE083 ITE Resolution Test Chart 11 Graduated Gray Scale For Electronic Cameras

  • 3nh YE083 ITE Resolution Test Chart 11 Graduated Gray Scale For Electronic Cameras
  • 3nh YE083 ITE Resolution Test Chart 11 Graduated Gray Scale For Electronic Cameras
Place of Origin Shenzhen China
Brand Name 3nh - SineImage
Certification CE
Model Number YE083
Minimum Order Quantity 1 Pcs
Price Please send inquiry
Packaging Details Safe Package
Delivery Time 1-4 Days
Payment Terms T/T
Supply Ability 1000 Pcs per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand 3nh/Sineimage Category Reflective/Transparent
Ratio 4:3 Size 280*157.5mm (Customized)
Name Camera Resolution Test Chart Feature High Accuracy
High Light

camera resolution chart

,

camera lens test chart
Leave a Message
Product Description

YE083 ITE gray scale test chart (Gamma = 0.45) for evaluation of the halftone reproduction of electronic cameras

The YE083 is designed for the evaluation of the halftone reproduction of an electronic camera. Two 11-graduated counter current gray scales are arranged on a gray background(D=0.62) . The gray scales being graduated logarithmically (gamma = 0.45).The output signal of an optimal gamma-corrected camera yields two 11-graduated counter current linear step signals. The contrast range of the gray scale is 40:1.



Remark: We support Any customized test charts only if you have high resolution image and size.

The values of the 11-graduated gray scale are as follows:

Step
Density
Reflectance in %
1
0.05
89
2
0.13
74
3
0.22
60
4
0.32
48
5
0.43
37
6
0.55
28
7
0.69
20
8
0.86
14
9
1.06
9
10
1.31
5
11
1.65
2

The density of the white field between the gray scale is D=0.05 (reflectance = 89%).

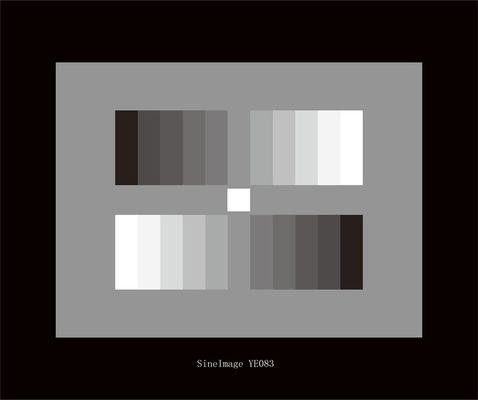

3nh YE083 ITE gray scale chart (Gamma = 0.45) with 11-graduated gray scale for electronic cameras
