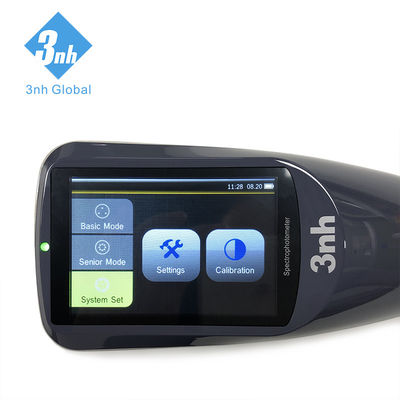

YD5050 2mm Aperture Xrite eXact 3NH Spectrophotometer
|Measurement Geometry||45/0||Spectral Separation Device||Concave Grating|
|Detector||256 Image Element Double Array CMOS Image Sensor||Wavelength Range||400-700nm|
|Density Standards||ISO Status A, E, I, T||Color Spaces||CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB|
2mm Aperture Paint Matching Spectrophotometer
YD5050 Accuracy CMYK Densitometer Similar to Xrite Exact Spectrodensitometer
1. Product Profile
YD5010 portable spectro-densitometer is a high-end precise instrument for the measurement of printing optical density and colors, which is designed to be applied in industries like printing, packaging and ink, film process, etc.
2. Detailed Technical Parameter / Specification Form
3. Detailed Introduction to Instrument
3.1. High configuration of hardware: 3.5 inches TFT capacitance screen-touch display, showing more comprehensive density and colorimetric indexes in one screen, making your operation more convenient and freer, checking the information you want very soon.
3.2. Dual Array 256 Image Element CMOS detector, making it have a high resolution and more sensitive to density and colors.
3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durablility which makes the instrument more stable and durable.
3.4. UV light source, can measure fluorescent colors more accurately.
3.5. Pass/Fail test result indication, help you to decide whether the color of the sample meets the requirements very promptly.
3.6. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.
3.7. All the parameters about printing: CMYK, Density, Dot Area, Dot Gain, etc. One instrument meets all requirements.
3.8. Optics 45°/0 Geometry, the optical geometry which are widely adopted in color measuring instruments. Reflective 45°/0 Geometry is for measuring colors of non-transparent targets.
3.9. Customizable measuring apertures: ∅2mm or ∅4mm or ∅8mm, different choice according to different application situations.
3.10. Multiple kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet different requirements for color measurement and color analysis.
3.11. Include multiple kinds of light source types, can be applied to most of the color measurement situations.
3.12. Two color measurement modes: Quality Mode and Average Mode, meet more color management situations.
3.13. Powerful data management functions, you can search and check records, rename and delete records, input standards.
3.14. Configured with a PC terminal software SQCX, more extended powerful functions for color data management can definitely facilitate your color management work.
3.15. USB data port, implement data transmission more convenient and prompt.
3NH-YD5050 portable spectrodensitometer, widely used in ink printing, film processing, textile printing and dyeing, plastic electronics and other industries color measurement and quality control, especially suitable for measurement and quality control of optical density, dot gain and other indicators in ink printing.
|Density Index||CMYK,Spot Colors||CMYK and Spot||CMYK and Spot|
|Tone Errors and Gray Patch||√||√|
|Absolute Color Strength||√|
|Relative Color Strength||√|
|QC Function||Paper QC|
|Best Match Table|
|Gray Balance QC|
|Custom Work Template|
|Color Library||Pantone PMS+|
|Custom color library|
|Multiple User Profiles|
|Spectral Data Derivation||√|
|Pass or Failure||√||√|
Comparasion with Other brands
For color and glossy measurement, there are three famous companes, Xrite from USA, Konimica Minolta from Japan, BYK from German, but now we, 3nh, are also famous all over the world. With our own R&D team, we focus on color for 21 years, and we have many models to compare with X-rite Konica Minolta BYK Machines.
All in all, First,at the some level, the price for our machine is much lower but performance is similar even better when compare withe Minolta,X-rite and BYK’s instrument; Second, for our partner, we normally give 2 years warranty; Third, if there are something wrong with 3nh machine, within the warranty, the repair fee is free while without the warranty, we only charge some cost price for it, less than RMB1000.But for Minolta,X-rite, BYK, the repair fee normally much than USD1000. And we 3nh offer the lifespan maintenance for all customers. Welcome customers all over the world to visit and order 3nh products in Shenzhen, China.
|3nh Instrument||Description||Similar Models|
|YS4560 Spectrophotometer||45°/0||BYK 6801,CM2500C|
|YD5050 Spectrophotometer||45°/0||Exact advance|
|YD5010 Spectrophotometer||45°/0||Exact basic, basic density meter|
|YS3060 Spectrophotometer||d/8°||X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d|
|YS3010 Spectrophotometer||d/8°||X-rite Ci60; MINOLTA CM-2300d|
|NS800 Spectrophotometer||45°/0||BYK 6801|
|NR60CP Colorimeter||8°/d||MINOLTA CR-10 plus|
|NHG268 Gloss Meter||20°, 60°, 85° gloss||BYK 4563|
|NHG60 Gloss Meter||60° gloss||BYK 4561|
|T90-7 Light Cabinet||7 Illuminants||X-rite SpectraLight QC|
Frequently Asked Questions
1. Can the YD5050 spectrophotometer be equivalent to any models of world famous brands?
Answer: Yes, our YD5050 is equivalent to the X-rite Exact densitometer
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
