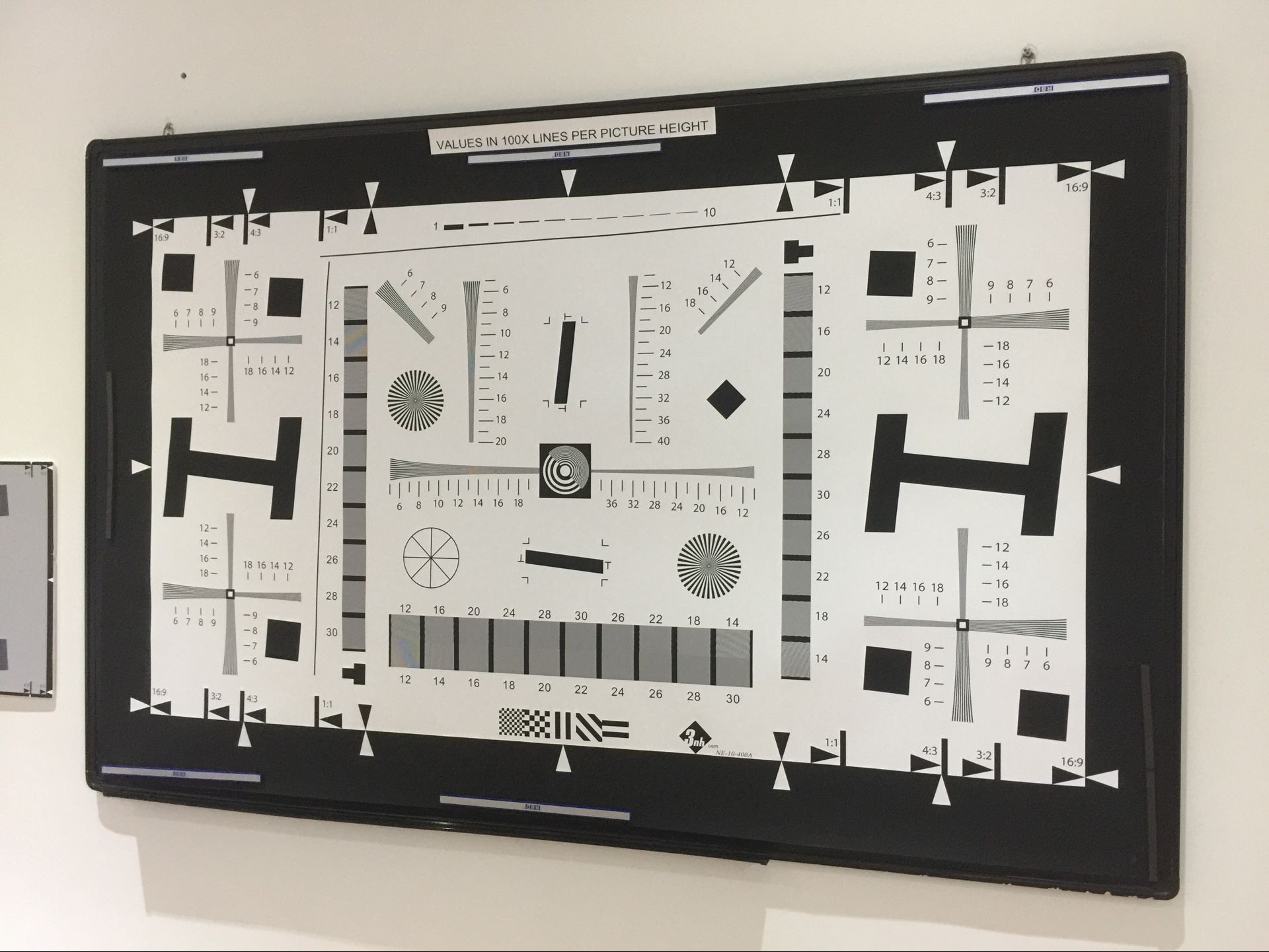

Sineimage ISO12233 Reflective Camera Resolution Test Chart

  • Sineimage ISO12233 Reflective Camera Resolution Test Chart
  • Sineimage ISO12233 Reflective Camera Resolution Test Chart
Place of Origin Shenzhen China
Brand Name 3nh - SineImage
Certification CE
Model Number NQ-10-200A
Minimum Order Quantity 1 Pcs
Price Please send inquiry
Packaging Details Safe Package
Delivery Time 1-4 Days
Payment Terms T/T
Supply Ability 1000 Pcs per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ISO12233: 2000 Category Reflective
Brand 3nh/Sineimage Size 0.5x/1x/2x/4x/8x/Customisable
High Light

Reflective Camera Resolution Test Chart

,

ISO12233 Camera Resolution Test Chart

,

Sineimage Dynamic Range Test Chart
Leave a Message
Product Description
ISO12233 Test Chart
Parameters
ISO12233 Camera Resolution Test Chart
Size
Size customisable
Format
16:9 / 4:3
Type
Reflective/Transmissive
Material
Photographic Paper(Reflective), Film(Transmissive)
Model
Specification
Size
Material
NQ-10-50A
0.5X
10x17.8 cm
photographic paper
NQ-10-100A
1X
20x35.6 cm
photographic paper
NQ-10-200A
2X
40x71.1 cm
photographic paper
NQ-10-400A
4X
80x142.2 cm
photographic paper
NQ-10-800A
8X
160x284.4 cm
photographic paper


3nh provides one-stop service on enhanced ISO 12233 resolution test chart (0.5x, 1x, 2x, 4x, 8x), test light source and test software.



ISO12233 Camera Resolution Test Chart MTF TV Line SFR Chart

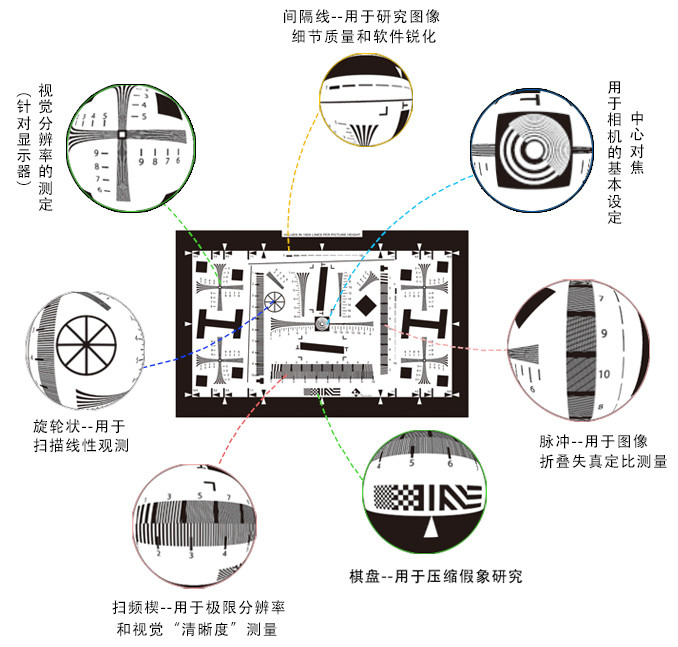

Resolution test chart is the standard proof which can provide aided testing for vertical resolution and horizontal resolution of actual shooting.



We also make Standard ISO 12233 Resolution Test Chart (0.5x, 1x, 4x, 8x) 2000 lines.



ISO 12233 RESOLUTION TEST CHART

0.5X (10x17.8 cm), semimatt (normative contrast), image on photographic paper

Product No: NQ-10-50A

1X (20x35.6 cm), semimatt (normative contrast), image on photographic paper

Product No: NQ-10-100A

2X (40x71.1 cm), semimatt (normative contrast), image on photographic paper

Product No: NQ-10-200A

4X (80x142.2 cm), semimatt (normative contrast), image on photographic paper

Product No: NQ-10-400A

8X (160x284.4 cm), semimatt (normative contrast), image on photographic paper

Product No: NQ-10-800A



For those reflectance test charts, we all have the same transmission test charts for DNP transmission light box or our 3nh brand CC5100/3100.



Application:



Resolution test chart is the standard proof which can provide aided testing for vertical resolution and horizontal resolution of actual shooting.

Resolution test uses ISO 12233 resolution test chart and adopts unified shooting angle and environment.

The calculation of resolution test uses HYRes software, and the calculation will be done in two parts: vertical resolution and horizontal resolution.

Digital camera assessment is different from other products. It’s unlike laptop and DIY which have a lot of software to test objective data and everything can be seen from the data. However, assessing the quality of digital camera not only needs certain objective data, but also needs to combine actual operation and the shooting proofs. Therefore, our assessment is based on the principle of objective data and combined rational analysis from the experienced reviewers to obtain the most objective assessment results.



Remark: We support Any customized test charts only if you have high resolution image and size.
