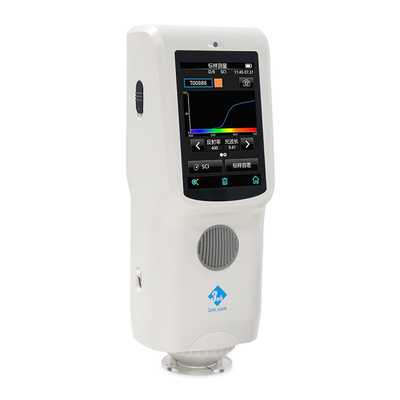

ColorReader CR9 Spectral 3nh Colorimeter Handheld Spectrophotometer 400nm - 700nm

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RohS
Model Number CR9
Minimum Order Quantity 1 Unit
Price Discuss
Packaging Details 37*17*31cm, 3kg, Carton Box
Delivery Time 1-3 work days
Payment Terms T/T, L/C, Western Union
Supply Ability 1000 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Aperture Φ8mm & Φ4mm Repeatability ΔE*ab Within 0.03
Optical Geometry D/8 Wavelength Range 400~700nm
Illuminant Device LED Light Source, UV Light Source Storage 500 Standard Samples, 1,0000 Samples
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2) Measuring Conditions 2°/10°
High Light

Grating 3nh Colorimeter

,

Spectral 3nh Colorimeter

,

Handheld spectrophotometer Camera locating

Leave a Message
Product Description

Spectral Color Reader Colorimeter CR9 Handheld spectrophotometer Factory





CR9 realizes the two-in-one spectrophotometer and spectrocolorreader, easy to use and not expensive. It is a masterpiece that integrates high precision, high performance, and high cost performance. It uses a built-in silicon photodiode array (dual-row 24 groups) sensor, an imported white board, and the repeatability ΔE*ab can be easily controlled within 0.03. CR9's powerful performance configuration and excellent inter-instrument error make color measurement more professional, while also ensuring the consistency of measurement data of multiple devices.



The CR9 spectrocolorreader takes into account the measurement speed and the convenience of operation at the same time. The color can be controlled through the PC-side software, and it can also be seamlessly connected to the mobile device through Bluetooth.It greatly expands the application space of the colorimeter, and makes the traditional colorimeter glow with a different application charm.



Features



1. Silicon photodiode array (double 32 array) sensor.

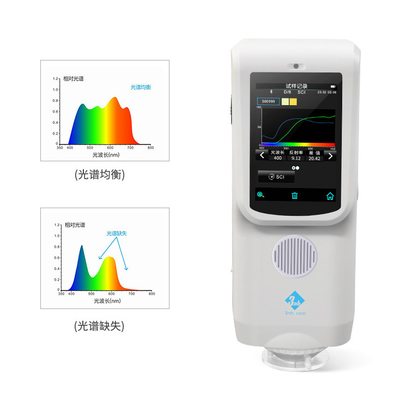

2. Adopt full-band balanced LED light source.

3. Grating Spectrophotometric technology.

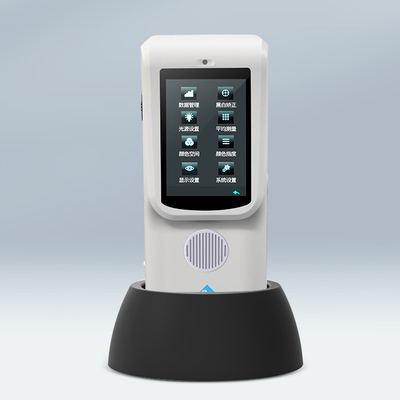

4. Place the base safely to ensure that the whiteboard is not dirty.

5. Professional whiteboard, a promise that will never change color forever.

6. Fast charging, built-in Li-ion battery.

7. Novel and fashionable appearance design based on ergonomics.

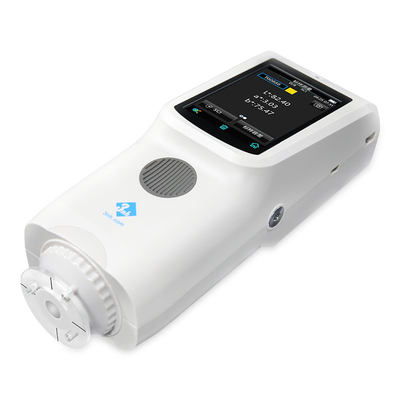

8. Equipped with 4/8mm dual measuring apertures to meet the measurement needs of different samples.

9. Camera locating, can clearly observe the measured area.

10. Massive color card database.

11. Excellent inter- instrument error and repeatability to ensure the consistency of measurement data of multiple equipment.

12. Multiple color spaces, multiple observation light sources.

13. Adopt the internationally used D/8 SCI/SCE synthesis technology.

14. Diversified data display.

15. Both Mobile App and SQCX quality management software.



Specification

Model CR9 (Advanced)
Optical geometry D/8 (diffuse illumination, 8° direction reception)
SCI/SCE measurement
Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristics Dual measurement aperture, wider adaptability; used for accurate color measurement and quality control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating sphere size Φ40mm
Light source Combined full-spectrum LED light source, UV light source
Spectroscopic method Planar grating
Sensor Silicon photodiode arrays (dual row 32 groups)
Wavelength range 400~700nm
Wavelength interval 10nm
Semiband Bandwidth 10nm
Measurement range L:0~120
Reflectivity: 0~200%
Measurement aperture Dual apertures:Φ8mm,Φ4mm
Focusing method Optical Focus
Specular component SCI&SCE
Color space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2)
Color difference formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99
Other colorimetric indexs WI(ASTM E313, CIE/ISO,AATCC,Hunter).
YI(ASTM D1925, ASTM 313),
Metamerism index Mt
staining fastness,color fastness,strength, opacity,color card search
Observer angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed data Spectrogram/data, chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset
Display Accuracy 0.01
Measurement time Approx. 1.5s (Measure SCI & SCE about 3.2s)
Repeatability Chromaticity value: MAV/SCI, ΔE*ab within 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument error MAV/SCI, within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles)
Measurement method Single measurement, average measurement (2~99 times)
Locating method Camera locating,stabilizer locating
Size LxWxH=81X71X214mm
Weight About 460g
Battery power Lithium battery, 6000 times in 8 hours
Illuminant life span 5 years, more than 3 million times measurements
Display TFT true color 3.5inch, capacitive touch screen
Data port USB, Bluetooth® 5.0
Data storage 1000 standard samples, 30,000 samples (a piece of data can include SCI/SCE at the same time), APP mass storage
Language Simplified Chinese, English, Traditional Chinese
Operating temperature range 0~40℃, 0~85%RH (no condensation), altitude< 2000m
Storage temperature range -20~50℃, 0~85%RH (no condensation)
Standard Accessories Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, dual aperture: Ø8mm + Ø4mm platform aperture, MOBCCS APP (official website download)
Optional Accessories USB micro printer, powder test box, Bluetooth micro printer,holder base
Notes. Technical parameters are for reference only, subject to the actual sales of products
