3nh T259004 3100K Transmission Light Box 120000Lux With 4 Color Temperature

  • 3nh T259004 3100K Transmission Light Box 120000Lux With 4 Color Temperature
  • 3nh T259004 3100K Transmission Light Box 120000Lux With 4 Color Temperature
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE
Model Number T259004
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 7KG
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 50 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Temperature 3100K±200K、6500K±200K、4150K±200K、5000K±200K Illuminance 0-120000 Lux
Life Span More Than 25000 Hours Light Panel Size 25W*19Hcm
CRI ＞90% Illuminance Evenness ＞92%
Volume 37W*32.5H*16.5Dcm Power AC100-240V, 50/60Hz
Light Device LED Lamps Array
High Light

3nh T259004 Transmission Light Box

,

3100K Transmission Light Box

,

120000Lux 3nh Light Box
Leave a Message
Product Description

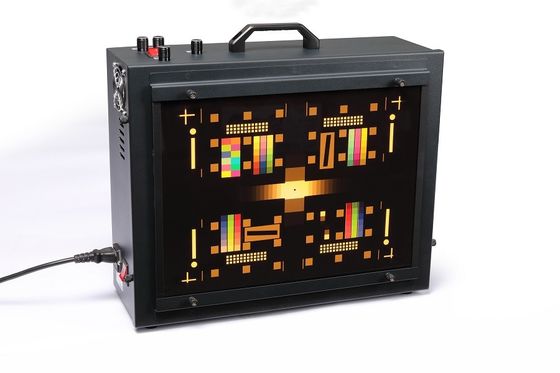

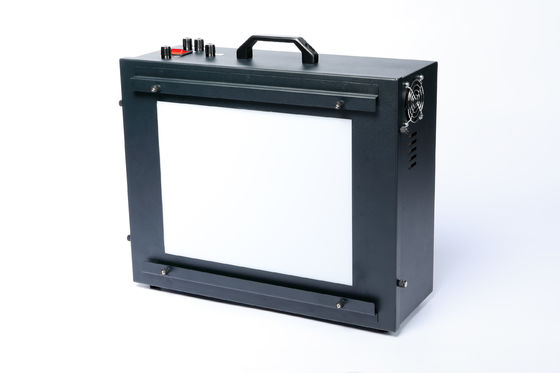

T259004 high illumination transmission light box with 4 color temperature



3nh T259004 high illumination transmission light box is a special light box for camera test, wiith 4 color temperature, 3100K±200K,6500K±200K,4150K±200K,5000K±200K. This model adopts LED light source with high power, high illumination, no flicker, long life and stable color temperature to provide professional lighting environment for camera lens evaluation system.





Application



T259004 high illumination transmission light box provides standard light source environment , used with a variety of purposes of transmission type test chart. It can get a professional and simple test result through the analysis of our iQstest image processing software. It is suitable for video camera, mobile phone camera and security camera etc lens use. It is a penetrating light source device for adjusting and testing LENS between camera and other LENS.



Performance Highlights



1. Illumination uniformity >90%

2. 4 Color temperature range: 3100K±200K,6500K±200K,4150K±200K,5000K±200K.Other color temperature is required to customize.

3. LED illumination adjustable range 0-120000lux ( Illumination adjustable button includes high and low illumination. Among low illumination, there are two dimming knobs of coarse and thin to make dimming more accurate.)

4. Stable light, no flicker, over 10000 hours lifespan



General information



1. External dimensions: (L*W*H) 410*145*330mm

2. Projection area: 290L*220Hcm

3. Test Chart Slot Size: 360L*8W*285Hmm

4. Light source control box size:(L*W*H) 303*322*101mm

5. Environment required: Temperature 0-28℃,<RH85% (non-condensing)

6. Power supply:AC110-240V, 2.2A, 50/60HZ. The maximum power consumption is 250W
