ASTM D1729 TL84 U30 Color Assessment Cabinet N7 Grey Color M60

  • ASTM D1729 TL84 U30 Color Assessment Cabinet N7 Grey Color M60
  • ASTM D1729 TL84 U30 Color Assessment Cabinet N7 Grey Color M60
Place of Origin Shenzhen,China
Brand Name TILO
Certification CE,ISO,RoHs,etc
Model Number M60
Minimum Order Quantity 1pc
Packaging Details Standard Wooden Exports Package
Delivery Time 2 work days
Payment Terms T/T,Paypal,etc.
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model M60 Size 710*530*570 CM
Light Sources D65, TL84/U30, CWF, F, UV Standard ASTM D1729, ISO3664, DIN, ANSI And BSI
Weight 30kg Lamp Length 60cm
High Light

ASTM D1729 Color Assessment Cabinet

,

TL84 U30 Color Assessment Cabinet

,

N7 Grey Color Colour Matching Cabinet
Leave a Message
Product Description

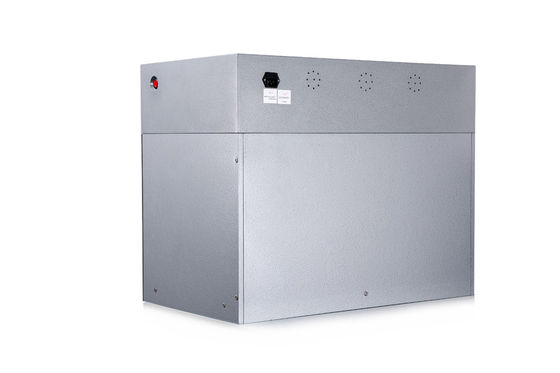

M60 American color light box with N7 grey color 5 light source similar to Judge QC



Model M60
Light source D65, TL84, UV, A, CWF, TL83
Dimensions(W*D*H) 710x530x570 mm
Inner Size(W*D*H) 680x515x355 mm
Voltage 220V
Weight 35 kg

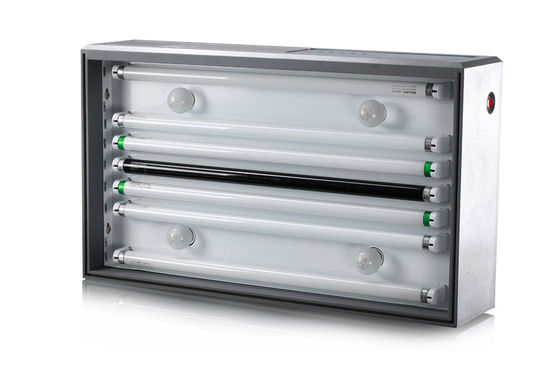

M60 color light booth is equipped with 5 light sources. Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth / Viewing Booth/Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.

Optional accessories: light source diffuser, 45 degree standard stand.

Placement of 45 degree standard stand: Regardless of which observation method is used, the test sample must be placed in the middle of the light box as much as possible to reduce the influence of the external light source. In addition, the most important thing is that when you need to compare the color of two or more objects, you should also try not to overlap them. It is best to compare them side by side in the binding box.



Features:


1. Display usage time, name, and number of switches for each source
2. Automatic switching of light source with metamerism
3. No warm-up, no flashing, fast and reliable evaluation of colors
4. Low energy consumption, no heat dissipation, high luminous efficiency
5. Original American Judge II type lamp, the background color is fully compatible
6. TILO high standard international brand.



Application:


The Color matching booths / Colour assessment cabinet / Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.



Specifications:


Order No. Name Model D65 TL84/U30 F/A UV CWF Voltage
10103 Standard light source box M60 five light source(220V) 2 pcs 1 pcs 4 pcs 1 pcs 1 pcs 220V/50Hz
10803 Standard light source box M60 five light source(115V) 2 pcs 1 pcs 4 pcs 1 pcs 1 pcs 115V/60Hz



Light Sources:


Light Source Color viewing booths application Color temperature(k) Power(W) Brand&Specification
D65 International standard Artificial Daylight 6500 20 Gretagmacbeth F20T12/65
TL84 Applied to stores in EuropeJapan and China 4000 18 PHILIPS
TLD 18W/840
CWF (Cool White Fluorescent)American Standard 4150 18 SYLVANIA
F20T12/CW
TL83 Warm White Fluorescent American Standard 3000 18 PHILIPS
TLD 18W/830
F "Sun-setting Light Yellow" incandescent light source(imitation of sunset) 2700 40 3nh
40W
A American shopwindow spotlight 2700 40 3nh
60W
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments Wavelength:365nm 20 PHILIPS
TLD 18W/BLB
