3nh 0 - 160000lux LED Light Box For Camera Test

  • 3nh 0 - 160000lux LED Light Box For Camera Test
  • 3nh 0 - 160000lux LED Light Box For Camera Test
  • 3nh 0 - 160000lux LED Light Box For Camera Test
  • 3nh 0 - 160000lux LED Light Box For Camera Test
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE
Model Number T259000+
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 7KG
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 50 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Temperature 2300k-8000k Illuminance 0-160,000 Lux
Life Span More Than 25000 Hours Light Panel Size 25W*19Hcm
CRI ＞90% Illuminance Evenness ＞92%
Power AC100-240V, 50/60Hz Light Device LED Lamps Array
High Light

160000lux LED Light Box

,

3nh Camera Test LED Light Box

,

160000lux Camera Test Light Box
Leave a Message
Product Description

3nh T259000+ high illumination/adjustable color temperature transmission light box​



Product Overviews

T259000+ high illumination/adjustable color temperature transmission light box is a special camera test light box. This product adopts LED light source with high power, high illumination, no flicker, long life and stable color temperature to provide professional lighting environment for camera lens evaluation system.

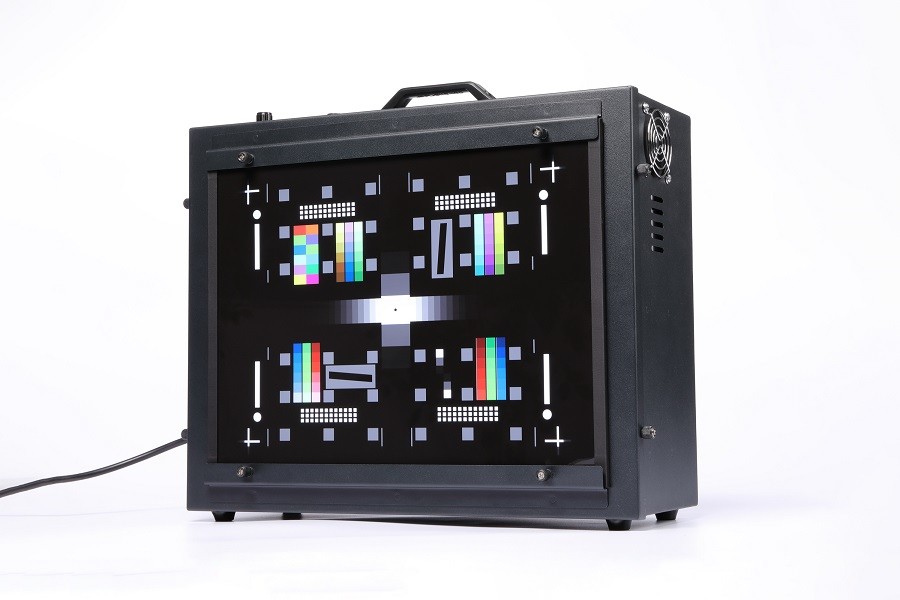

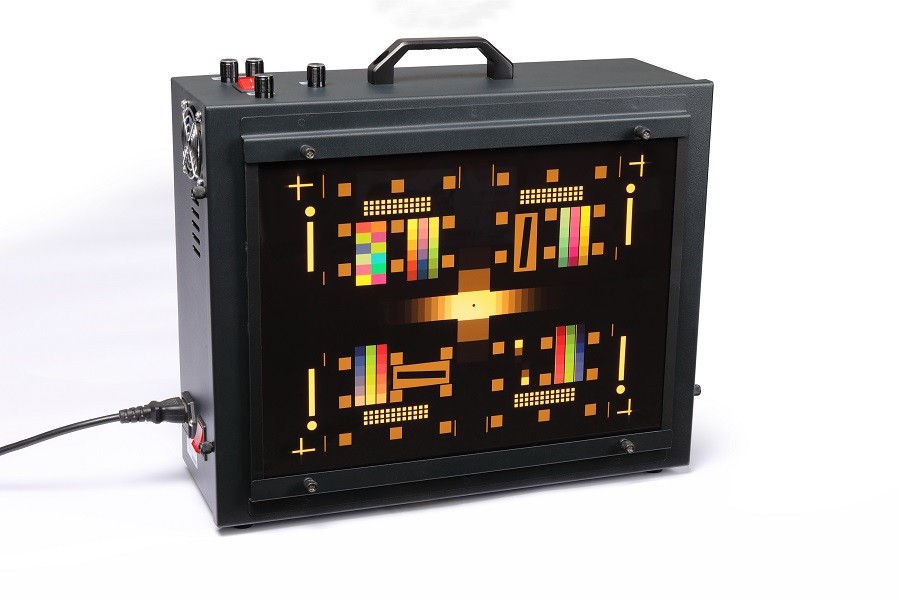

T259000+ high illumination/adjustable color temperature transmission light box (Figure 1) is mainly composed of: light box body, handle, test card slot, transmission panel, light source switch, test card fixing screw, power socket, power switch, light source control box (Figure 3) and other components.

3nh T259000+ transmission light box with 2300k-8000k and 160000 lux3nh T259000+ transmission light box with 2300k-8000k and 160000 lux3nh T259000+ transmission light box with 2300k-8000k and 160000 lux3nh T259000+ transmission light box with 2300k-8000k and 160000 lux3nh T259000+ transmission light box with 2300k-8000k and 160000 lux3nh T259000+ transmission light box with 2300k-8000k and 160000 lux

Product Description


Product features:



1. Transmission Uniformity >93%.

2. Adjustable color temperature, range: 2300K-8000K.

3. Adjustable illumination, dimming range: 0-160,000 Lux.

4. Frequency adjustable, range: 1-15KHz

5. It can be controlled by the PC software when connected with the computer wirelessly through R485 to USB cable or WiFi.

6. More than 10,000 hours of life.



Product specification:



1. The external size of the light box (as shown in Figure 2) : (L*W*H)410mmx145mmx330mm.

2. Light box transmission surface size: (L*H)290mmx220mm.

3. Test card slot size: (L*W*H)360mmx8mmx285mm.

4. Size of light source control box (as shown in Figure 3) : (L*W*H)303mmx302mmx101mm.

5. Use environment: 0-28℃, relative humidity below 85% (non-condensation).

6. Input voltage: AC210-240V 50/60HZ maximum power consumption of 250W.

7. Net weight: 10.8kg.



Detailed Images

D77A6557D77A6559D77A6560DNP 2

Warranty

Camera Image Quality Test Standard Color Viewer transmission light box T25900+ have one year warranty except consumables from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
