Place of Origin	Shenzhen China
Brand Name	3nh
Certification	CE, TUV, FCC, RoHS, ISO9001
Model Number	TS7600
Minimum Order Quantity	1Unit
Price	Please send inquiry
Packaging Details	462538cm, 4.5KG, Alluminum Box
Delivery Time	2-5 Days
Payment Terms	T/T
Supply Ability	500 Units per Month

Optical Geometry	D/8°	SCE/SCI	SCE & SCI
UV Light Source	Yes	Repeatibility	ΔE*≤0.04
Inter-instrument Agreement	ΔE*≤0.2	Measuring Aperture	8mm Or 4mm
High Light	8mm Aperture color matching spectrophotometer , pantone color matching spectrophotometer , pantone color test spectrophotometer

Brand	3nh
Model	TS7600
Accuracy	ΔE*ab≤0.04
Aperture	8mm or 4mm
Wavelength	400nm - 700nm
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)

Carton Size	371731
Weight	3kg
Accessory	Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, One aperture (8mm or 4mm)
Shipment	DHL, FEDEX, TNT, UPS, etc
Payment Term	T/T 100% in advance

Model	TS7600
Optical Geometry	Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
	SCI (specular component included)/SCE (specular component excluded) ; excluded UV light source
	Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic	Customized one aperture, It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.
Integrating Sphere Size	Φ40mm
Light Source	Combined full spectrum LED light source, UV light source
Spectrophotometric Mode	Flat Grating
Senso	Silicon photodiode array (double row 40 groups)
Wavelength Range	400~700nm
Wavelength Interval	10nm
Semiband Width	10nm
Measured Reflectance Range	0-200%

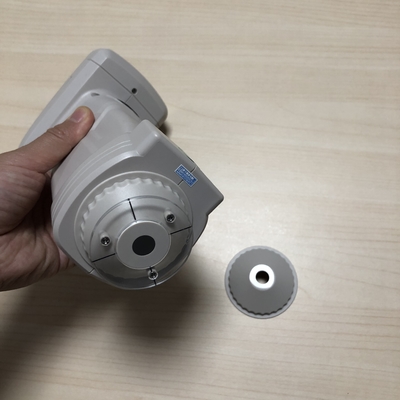

Measuring Aperture	Customized one aperture: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm
Specular Component	SCI&SCE
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
Color Difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00

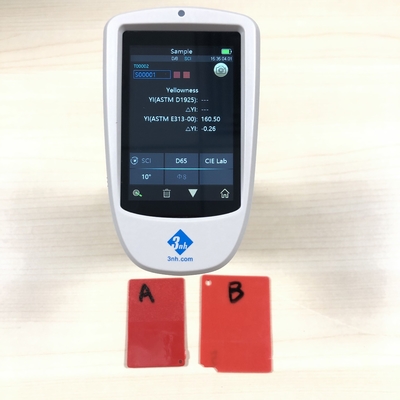

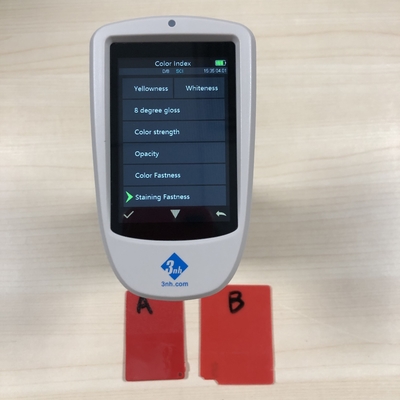

Other Colorimetric Index	WI(ASTM E313,CIE/ISO,AATCC,Hunter),
	YI(ASTM D1925,ASTM 313),
	Staining Fastness, Color Fastness, Color Strength, Opacity,
	8° Glossiness,
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time	About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability	Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)
Repeatability	Chromaticity value: MAV/SCI, within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	MAV/SCI, Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement Mode	Single Measurement, Average Measurement(2-99times)
Locating Method	Camera Locating,stabilizer cross position
Dimension	LWH=129X76X217mm
Weight	Approx 600g
Battery	Li-ion battery, 3.7v, 5000mAh, 6000 measurements within 8 hours
Illuminant Life Span	5 years, more than 3 million times measurements
Displayed Data	3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB,
Data Storage	Standard 1000 Pcs, Sample 20000 Pcs
Language	Simplified Chinese, English, traditional Chinese
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)

8mm Aperture Color Matching Spectrophotometer TS7600 UV Light Source
