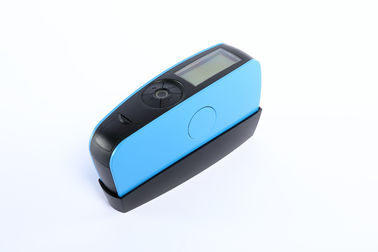

• High Precision Digital Gloss Meter YG268 3NH 0.1GU Division Value 2.3" Screen
High Precision Digital Gloss Meter YG268 3NH 0.1GU Division Value 2.3" Screen

High Precision Digital Gloss Meter YG268 3NH 0.1GU Division Value 2.3" Screen

Product Details:

Place of Origin: Shenzhen China
Brand Name: 3nh
Certification: CE, TUV, FCC, RoHs
Model Number: YG268

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Please send inquiry
Packaging Details: 30*20*10cm, 1kg, with a carrying bag
Delivery Time: 1-5 Days
Payment Terms: T/T
Supply Ability: 1000 Units per Month
Get Best Price Contact Now

Detail Information

Measuring Angle: 20° 60° 85° Measuring Area(mm): 20°: 9×10, 60°:9x15, 85°: 5×38
Measuring Range(GU): 0~2000 Division Value: 0.1GU
Tolerance: ±0.2, ±0.2% Data Port: USB & Bluetooth
High Light:

paint gloss meter


60 degree gloss meter

Product Description

High Precision Digital Gloss Meter YG268 3NH 0.1GU Division Value 2.3" Screen

1. Product Profile


YG268 gloss meter is a high-end precise tri-angle smart gloss meter for surface glossiness measurement and management, which can be widely applied in all kinds of industries, such as plastics, metals, paint and coating, furniture, wood, ink, printing and packaging, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry. In one word, YG268 tri-angle gloss meter can be perfectly applied in any place that requires gloss measurement and control.


2. Detailed Technical Parameter / Specification Form


Technical Parameter Items YG268 Precise Tri-angle Smart Gloss Meter
Product Category Optical Electronic Gloss Measurement Instrument
Product Name Gloss Meter, Glossmeter
Application For the measurement of the surface glossiness of those products like plastics, metals, textiles, papers, wood, tiles, etc.
Optical Angles Three Angles: 20° + 60° + 85°
Measurement Area 20°: 9×10mm 60°: 9×15mm 85°: 5×38mm
Measurement Range 20°: 0~2000GU 60°: 0~1000GU 85°: 0~160GU
Division Value 0.1GU

Measurement Range


0~100GU 100~2000GU

±0.2GU ±0.2%

Measurement Standard Conform with JJG696 first class glossmeter working requirements
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Measuring Time 0.1s
Display Screen 2.3" Screen
Operation by button
Measurement Modes Four Measurement Modes: Basic Mode, Statistical Mode, Continuous Mode, Quality Mode.
Data Storage Capacity

Basic Mode + Continuous Mode: 15000pcs.

Statistical Mode: 10000pcs.

Quality Mode: 10000pcs.

PC Software GQC6 (for free)
Data Transferring Port USB
Language Built-in English, Chinese.
Power Supply

1 pcs of NO. 5 dry Battery (more than 10000 times of measurements in 8 hours),

Power Adapter

Working Environment Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation)
Storage Environment Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation)
Standard Accessories Calibration Board, Power Adapter, USB Cable, PC Software GQC6, User Guide.
Optional Accessories Mini Thermal Printer
Weight 300g
Dimension 160*52*84mm


3. Detailed Introduction to Instrument


3.1. High configuration of hardware: 2.3 inches display.

3.2. Pressing key operation, makes your operation convenient.






3.3. Three angle gloss measurement: 20°, 60°, 85°. And you can also set to display any one or two or all of the angles.

3.4. Large measurement range from 0GU to 2000GU, can measure the glossiness of any targets from matt to very high gloss.






3.5. Four measurement modes: Basic Measurement Mode, Statistical Measurement Mode, Continuous Measurement Mode, Quality Measurement Mode. Perfectly suitable for different working situations.






3.6. Buttons operation, every easy to calibrate and do other system settings.






3.7. Configured with a PC terminal software GQC6, more extended powerful functions for color data management can definitely facilitate your gloss measurement work.








4. Company Profile


YG268 was developed and manufactured independently by Shenzhen 3nh/ThreeNH Technology Co., LTD. which is a national high-tech company who has been specializing in researching and developing, manufacturing and marketing surface color measuring instruments and equipment, gloss measurement meters and also color matching light cabinets for over 22 years, since founded in 1998. We warmly welcome customers, partners and friends to visit our company and factory in Shenzhen, China.




GW6A9235 1231.jpg



5. Frequently Asked Questions
1. Can the YG268 gloss meter be equivalent to any models of world famous brand?
Answer: Yes, our YG268 is equivalent to BYK4563 of BYK.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!


3. What's your main market?
Answer: We sell to the global market.


4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.


5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.


6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
