• Paint Coating 3nh Colorimeter , NR10QC Color Testing Equipment USB Interface
  • Paint Coating 3nh Colorimeter , NR10QC Color Testing Equipment USB Interface
Paint Coating 3nh Colorimeter , NR10QC Color Testing Equipment USB Interface

Paint Coating 3nh Colorimeter , NR10QC Color Testing Equipment USB Interface

Product Details:

Place of Origin: Shenzhen, China
Brand Name: 3nh
Certification: CE,RoHs,ISO,etc
Model Number: NR10QC

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Export Package
Delivery Time: 2 works days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Model: SCI Color: White
Measuring Aperture: 4mm Color Space: CIE L*a*b*c*h,CIEL*a*b, CIEXYZ
Calibration: Manual Locating: Cross-Locating Illumination Locating
High Light:

portable spectrophotometer colorimeter

,

digital color meter

Product Description

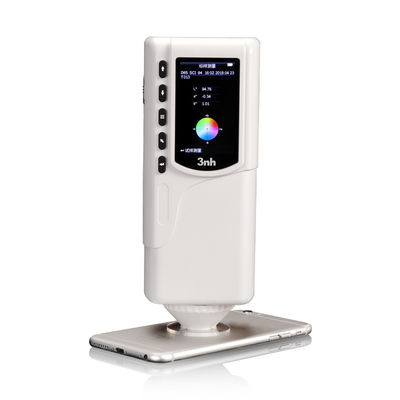

Paint Coating 3nh Colorimeter , NR10QC Color Testing Equipment USB Interface

NR10QC Paint Coating Cheap Colorimeter with Factory Price


Brief Introduction:


In response to the market demand for low price and high cost performance products, 3nh has developed the NR10QC economic colorimeter, which is a higher cost-effective model. With the advantages of high precision, high performance and low price, this model has been widely used in food, chemical industry, electronics, automobile, cosmetics, food and other fields.

NR10QC colorimeter is an economical and practical model, user-friendly interface design is easy to learn and operate. Illuminating and cross double locating functions make measurement more precise. Built-in white board makes measurement easier. At the same time, CQCS high-end color quality management software equppied with instrument can easily help you manage your color database.

Colorimeter can easily achieve accurate color transmission, also can be used as a measuring equipment for precise color matching system. It’s widely used in traffic signs, plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper and so on. With UV included, it can test fluorescent sample.

Festures:

  1. High performance and low price;
  2. Repeatability: ΔE ≤ 0.03;
  3. Double locating: Illuminating locating and precise cross locating;
  4. Equipped with rechargeable Li-ion battery, no need to purchase battery repeatedly;
  5. 4mm measuring aperture, portable structure, suitable for more measuring occasions;
  6. White appearance, color box packaging, easy to transport;
  7. Built-in white plate parameters, no need to do calibration;
  8. Directly use after power on, no need to connect with computer.

Specification:

Model
NR10QC
Illuminating/Viewing Geometry 8°/D
Standard CIE No.15, GB/T 3978
Sensor silicon photodiode
Measuring Aperture 4mm
Color Space CIE LAB, Lch
Observer CIE 10°
llluminant D65
Display Data Colorimetric Value, Color Difference Value Storage
Measuring Time 1.5s
Repeatability ΔE* ab ≤0. 08(Average of 30 measurements of standard white plate)
Errors between each instrument ΔE*ab 0.4
Dimension 205*67*80mm
Weight 400g
Battery rechargeable lithium-ion battery 3. 7V@ 3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Screen TFT 2.8 inch(16: 9)
lnterface USB
Storage 100 Standards, 10000 Samples
Operating Temperature 0-40°C(32-104°F)
Storage temperature -20-50°C(-4-122°F)

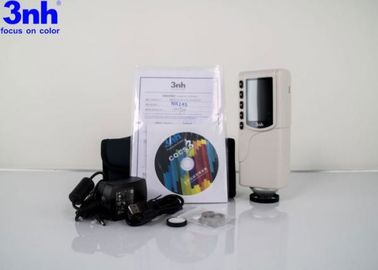

Standard accessories power adapter, instructions,quality control software (download from official website), data line, Wristband
Optional accessory miniature thermal printer, powder test box

Paint Coating 3nh Colorimeter , NR10QC Color Testing Equipment USB Interface 0Paint Coating 3nh Colorimeter , NR10QC Color Testing Equipment USB Interface 1Paint Coating 3nh Colorimeter , NR10QC Color Testing Equipment USB Interface 2
