1.5*2mm 3nh NHG60M GQC6 Software Multi Angle Gloss Meter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | NHG60M | Measuring Angle | 60 |
|---|---|---|---|
| Measuring Area | 1.5*2mm | Dimesion | 160*75*90mm(L*W*H) |
| Interface | USD-RS-232 | Software | GQC6 QCsoftware |
| Divation | ±1.5，±1.5% | OEM | Yes |
| High Light | GQC6 Software Multi Angle Gloss Meter,NHG60M Multi Angle Gloss Meter,CIE 60 Degree Gloss Meter |
||
Product Description
60 degree digital glossmeter 1000 gu NHG60 spectro-guide sphere gloss meter
Introduction:
NHG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
Application:
NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

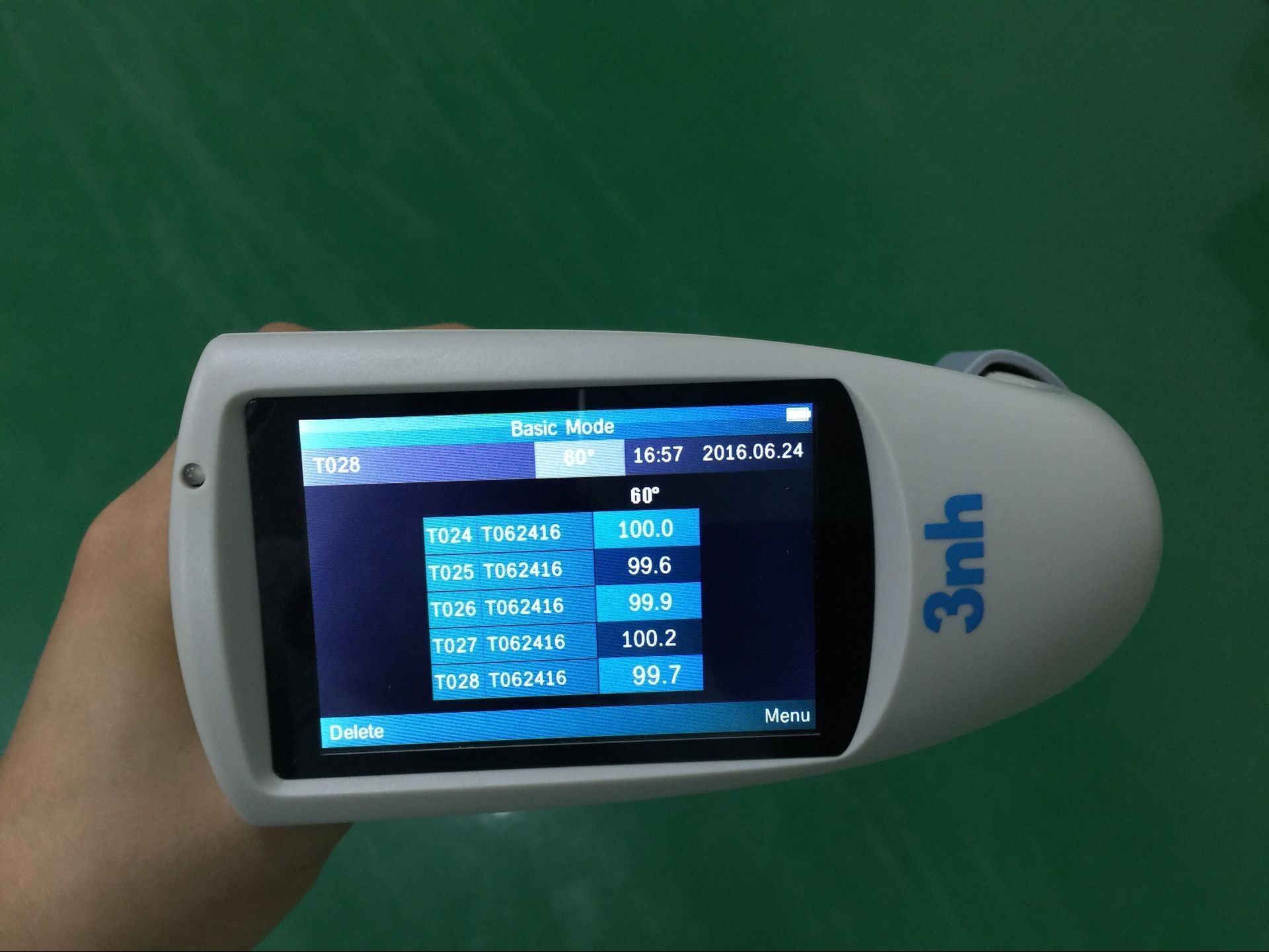

Pictures:
Features:
1. One button for all angles measurement at the same location
2. Display 5 sets of measurement data, good for comparison
3. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
4. Continuous mode to check uniformity over large areas
5. Connect to PC, more extend functions
6. Input gloss value manually
7. Large touch screen operation, easy to use
8. Beauty appearance, good man-machine communication interface
9. Powerful functions to meet many different requirements
Specification:
NHG60 60° Precise Gloss Meter
| Model | NHG60 |
| Measuring Angle | 60° Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area(mm) | 9x15 |
| Measuring Range | 0~1000GU |
| Division Value | 0.1GU |
|
Measurement Range Repeatability Reproducibility |
0-10GU 10-100GU 100-2000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform to the Working Requirements for JJG696 First Class Glossmeter |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±1.2, ±1.2% |
| Measuring Time | 0.1s |
| Display Size | TFT 3.5" |
| Touch-Screen | Yes, Capacitive Touch Screen |
| Data Port | USB & RS232 |
| Language | Chinese/English |
| Battery | 3200mAh Li-ion Battery , >10000 times(within 8 hours) |
| Dimension | 160*75*90mm |
| Weight | 350g |
| Measuring Mode&Storage | Basic Mode: 1000; Statistical Mode: 5000; Continuous Mode: 5000 |
| Software | GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions. |
| Operation Temperature | 0~40℃(32~104℉) |
| Storage Temperature | -20~50℃(-4~122℉) |
| Humidity | <85% Relative Humidity, No Condensation |
| Standard Accessories | Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate |
| Optional Accessories | Miniature Printer |
Company info:
Shenzhen Threenh Technology Co., Ltd. was established in 1998. It is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
3nh cherishes talents, focuses on talents. Company brings together many of high-level, high educated professionals. Among them, undergraduate academic staffs of the total number of company accounted for more than 80%; postgraduate staffs of the total number of company accounted for 30%. It involves the fields of photometry, electronic circuit, embedded system, photoelectric detection, mechanical structure design, optical design, application software, lighting technology electronic commerce and internet. 3nh team has strong capability to design, develop and produce on its own. The company has a large number of innovation patents, core technologies and intellectual property rights of 3nh products.
3nh adheres to “people-oriented, customer first, technological innovation, sustainable development” business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.
Certificates:
ISO9001, CE, FCC, ROHS, TUV
