Powder Liquid Color Test 4mm Aperture NH310 3nh Colorimeter

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RohS
Model Number NH310
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5kg, Alluminum Box
Delivery Time 2-5 work days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry 8°/d Measuring Aperture Φ8mm & Φ4mm
Repeatibility ΔE*≤0.06 Inter-instrument Agreement ΔE*≤0.4
Data Port USB Storage Capacity 100 Standards & 2000 Samples
High Light

4mm Aperture Hunter Lab Colorimeter

,

NH310 Paint Color Analyzer

,

Liquid 3nh Colorimeter

Leave a Message
Product Description

China 3nh colorimeter price NH310 cheap high accuracy color meter for powder liquid color test with UTC



Information:

NH310 high-quality portable colorimeter has adopted multi-channel color sensors of international brands, more stable IC platform as well as efficient and accurate algorithms to provide users with accurate and fast color management and application. NH310 is also designed with ergonomics and humanized operation and it has applied for a number of patents. NH310 is a multifunctional colorimeter with high quality and competitive price. 3nh insists on independent research whose technology innovation is unique in color management field. NH310 is the most convenient colorimeter for users.



Potents:

No.1 Camera locating and illumination location (NH310 has new functions of double locating.)

No. 2 Built-in white plate; Automatic calibration at startup (for NH310)

No. 3 Extended aperture (optional), available for measuring concave surface



Application:

NH310 colorimeter has many functions which can measure color fastness, whiteness (Hunter and ISO R457), Yellowness (YI), etc. However, we can also customize the following light sources for customers. It's used to compare color difference in plastic, electronic, painting, coating, ink, texile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratoris.



Specification:

Model NH310 Colorimeter
Illuminating/Viewing Geometry 8/d
Measuring Aperture Φ8mm/Φ4mm
Detector Silicon photoelectric diode
Color Space

CIEL*a*b*C*h* CIEL*a*b* CIEXYZ CIERGB CIEL*u*v* CIEL*C*h

Yellowness & Whiteness Color Fastness

Color Difference Formula ΔE*ab ΔL*a*b ΔE*C*hΔECIE94
Light Source D65 D50 A
Light Source Device LED blue light excitation
Errors Between Each Equipment ≤0.40ΔE*ab
Storage 100pcs standards 20000pcs samples
Repeatability

Standard deviation within ΔE*ab 0.06

Average of 30 measurements of standard white plate

Weight 500g
Dimension 205×70×100 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Charging Time 2 hours (first time 8 hours--100% electricity)
Measurement Times Before Recharging More than 3000 times
Operating Temperature/Humidity Range -10~40℃, relative humidity 0~85% with no condensation
Data Interface USB
Extended Aperture (optional) Φ8mm extended aperture, available for measuring concave surface
Printer (optional) Miniature thermal printer



Images:

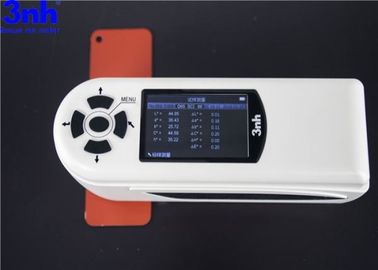

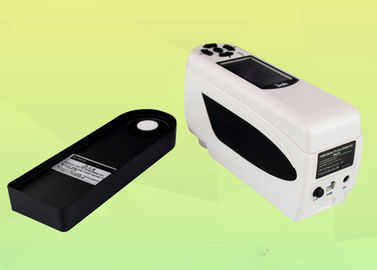

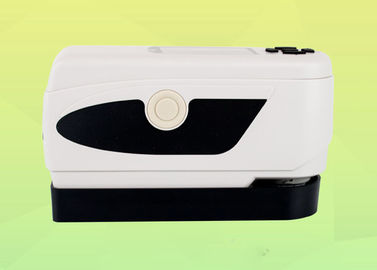

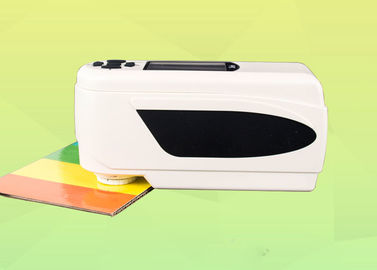

Powder Liquid Color Test 4mm Aperture NH310 3nh Colorimeter 0

Powder Liquid Color Test 4mm Aperture NH310 3nh Colorimeter 1D77A5917



Company:

Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched YS series spectrophotometer, NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.

Powder Liquid Color Test 4mm Aperture NH310 3nh Colorimeter 3




FAQ:
1. When I received NH310/NH300 colorimeter and perform measurement, why the measured data is abnormal?
After receiving NH310/NH300, you have to perform white and black calibration manually when first starting.
2. In which condition, manual white and black calibration and auto calibration are required for NH310?
a. It’s needed to perform manual calibration for NH310 when first starting.
b. In the subsequent starting, NH310 will perform auto calibration at startup. No need to perform manual calibration.
c. Suggestion: it’s best to perform manual calibration once a week or when NH310 measured data is not accurate.
3. In which condition, manual white and black calibration for NH300 is required?
a. It’s needed to perform manual calibration for NH300 when first starting.
b. In the subsequent starting, no need to perform manual calibration.
c. Suggestion: it’s best to perform manual calibration once a week or when NH300 measured data is not accurate.
4. How to replace NH310 measuring aperture?
There are three measuring apertures for NH310: Φ8mm (standard accessory), Φ4mm (standard accessory), extended Φ8mm (optional accessory)
a. Turning on
b. Removing measuring aperture, install the needed measuring aperture.
c. Select “Settings-Aperture Setting” in main menu to select corresponding measuring aperture.
d. After selecting aperture, the instrument will display “White and Black Calibration” interface. White and black calibration must be performed.
e. Replace completed.
5. CQCS3 (Color Quality Control System) Installation
a. Before installation, please Copy CQCS3 folder to your computer and don’t remove any files in CQCS3 folder.
b. Double-click the setup.exe to install CQCS3 software.
c. Then double-click Install.bat under the CQCS3USB_Driver file to install the driver.
d. Detailed installation information please read the "Installing Software" under CQCS3 User manual.doc.

Warranty:
NH310 color reader colorimeter for liquid powder coffee colour check with accessory is under warranty for 12 months from the purchase date. Customers must provide warranty card and valid proof of purchase.
