Powder Coating Measurements 3nh NR60CP Portable Colorimeters

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RohS
Model Number NR60CP
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5kg, Alluminum Box
Delivery Time 2-5 work days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry 8°/d Measuring Aperture Φ8mm & Φ4mm
Repeatibility ΔE*≤0.03 Inter-instrument Agreement ΔE*≤0.2
Data Port USB Storage Capacity 100 Standards & 2000 Samples
High Light

3nh NR60CP

,

Powder Coating Portable Colorimeter

Leave a Message
Product Description

3nh Portable Colorimeter NR60CP Color meter for Fruit Sauces And Food Color Test with powder test box



Brief Introduction

NR60CP colorimeter features the built-in white calibration parameter and a physical white plate, making it's very convenient to be calibrated, and also a simple interface making it's very easy to operate. It can get very similar test result with color reader cr10. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld colorimeter.



NR60CP colorimeter also features its two locating methods: illumination locating and cross locating, which can solve the problem of measuring small spots very well.

Repetitive error is less than 0.03ΔE*ab, inter-instrument error is less than 0.2ΔE*ab, which make its stability and reliability of measurement very superior.



NR60CP colorimeter is standardly configured with 2 kinds of measuring apertures, 8mm and 4mm, multiple light source modes, multiple color space systems, multiple chromaticity indexes conforming to different standards, all of which make NR60CP can excellently fulfill all kinds of requirements for color measurements in different industries.



NR60CP colorimeter also goes with a powerful PC software CQCS3 which includes more extended functions that can enormously facilitate your work.



Technical Specification



Parameters Colorimeter NR60CP
Optical Geometry 8°/d
Measuring Aperture Φ8mm & Φ4mm
Repeatibility ΔE*≤0.03
Inter-instrument Agreement ΔE*≤0.2
Measurement Range L: 0-100
Observer Angle CIE 10°
Color Space CIE LAB, CIE XYZ, CIE RGB, CIE LCh, CIE L*u*v
Color Difference Formula ΔE*ab, ΔE*Ch, ΔE*CIE94, ΔE*Lab, ΔE*Hunter

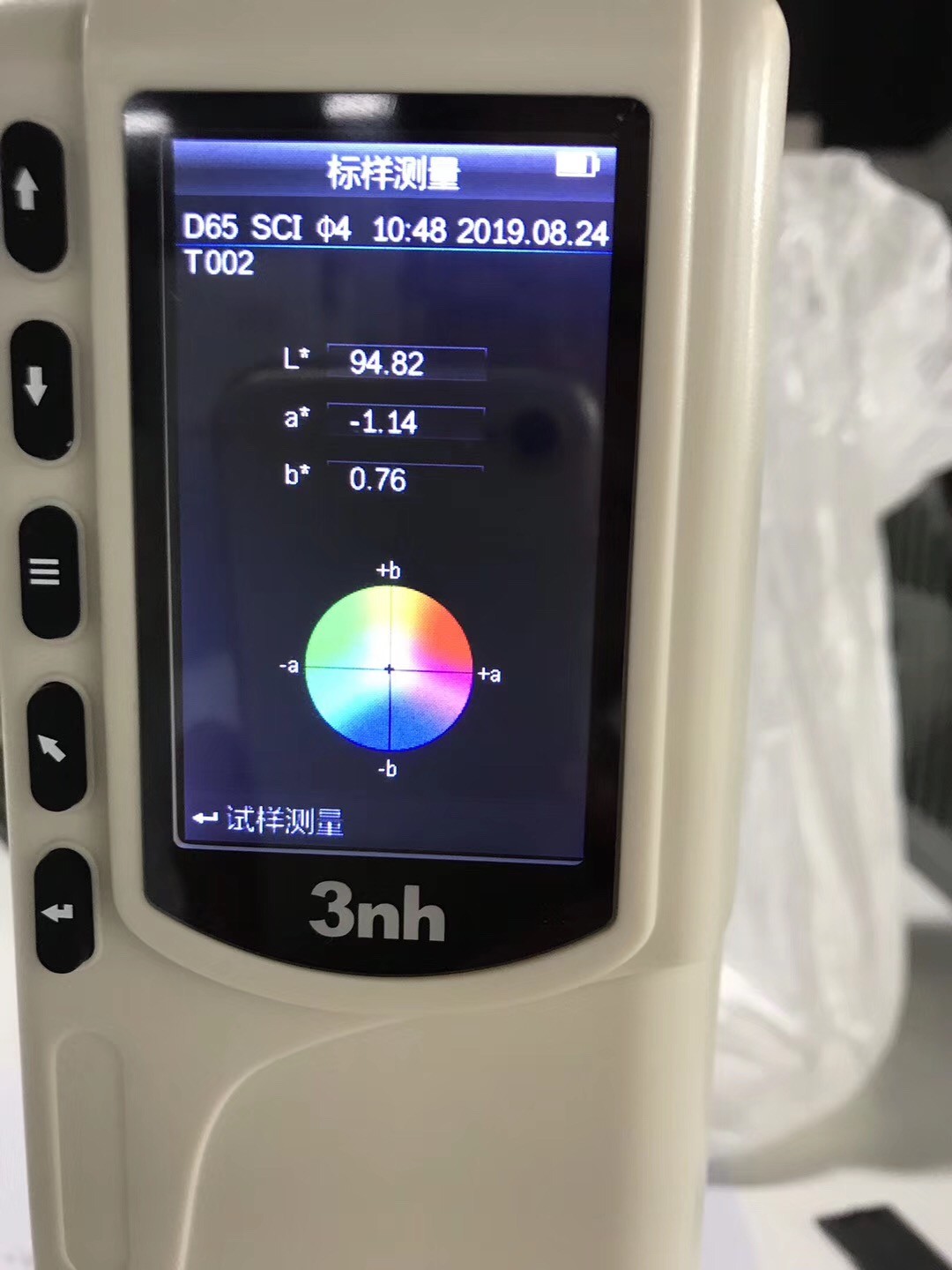

Displayed Data Colorimetric Value, PASS/FAIL Result, Color Offset
Other Chromaticity Data

White Index

Yellow Index
Color Fastness

Illuminant D65, D50, A, C, F2, F6, F7, F8, F10, F11, F12
Illuminant Device Combined LED Light
Illuminant Lifespan 5 years, More than 1.6 million measurements
Sensor Silicon Photoelectric Diode Array
Data Storage 100 Standards, 2000 Samples
Data Port USB
Display Size TFT 2.7"
Working Temperature 0~40℃(32~104℉)
Storage Temperature -20~50℃(-4~122℉)
PC Software CQCS3
Weight 500g
Dimension 205*70*100mm
Battery 3200mAh Large Capacity Li-ion Battery
Standard Accessory Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White and Black Calibration Cavity, Protective Cover.

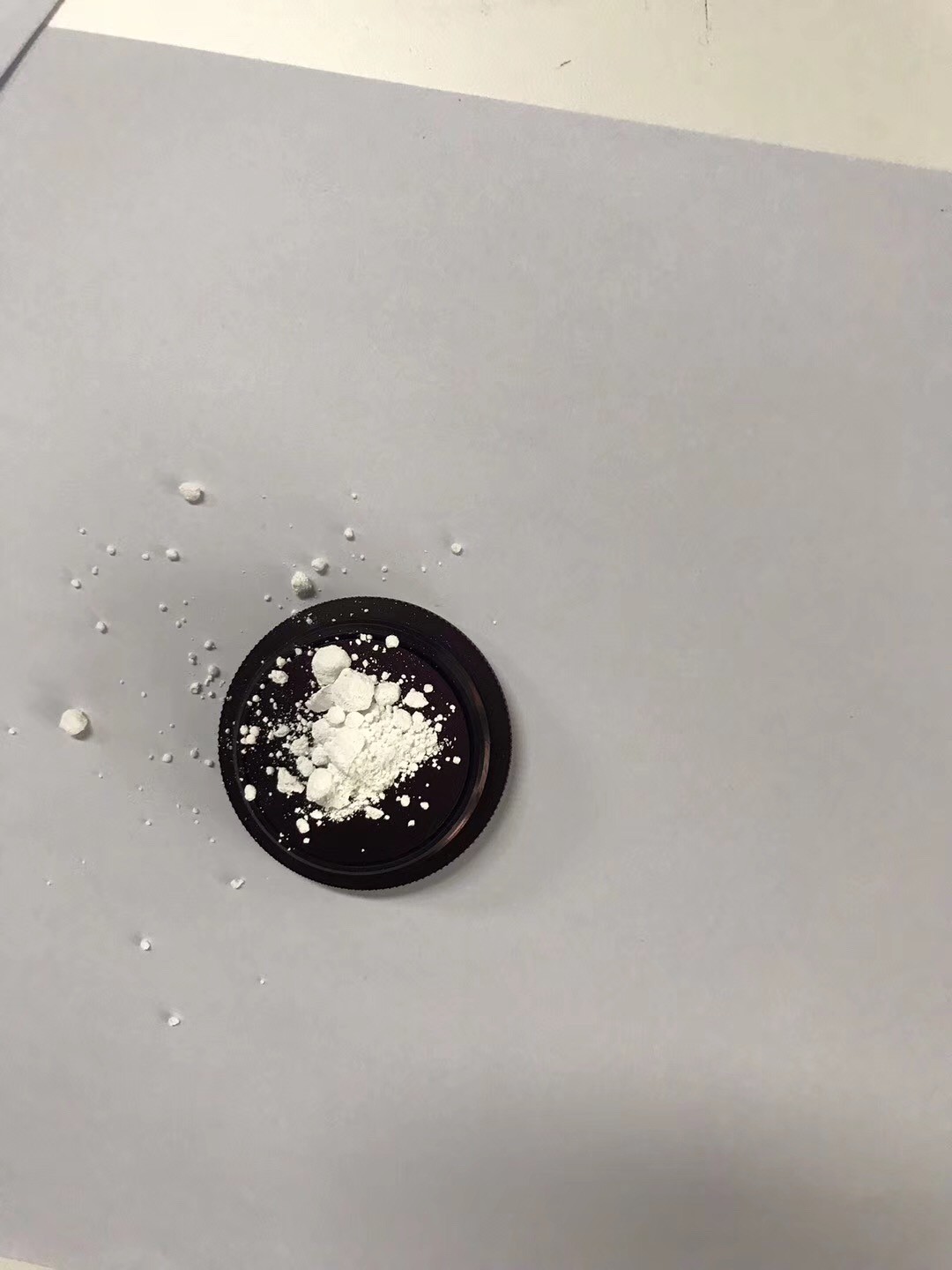

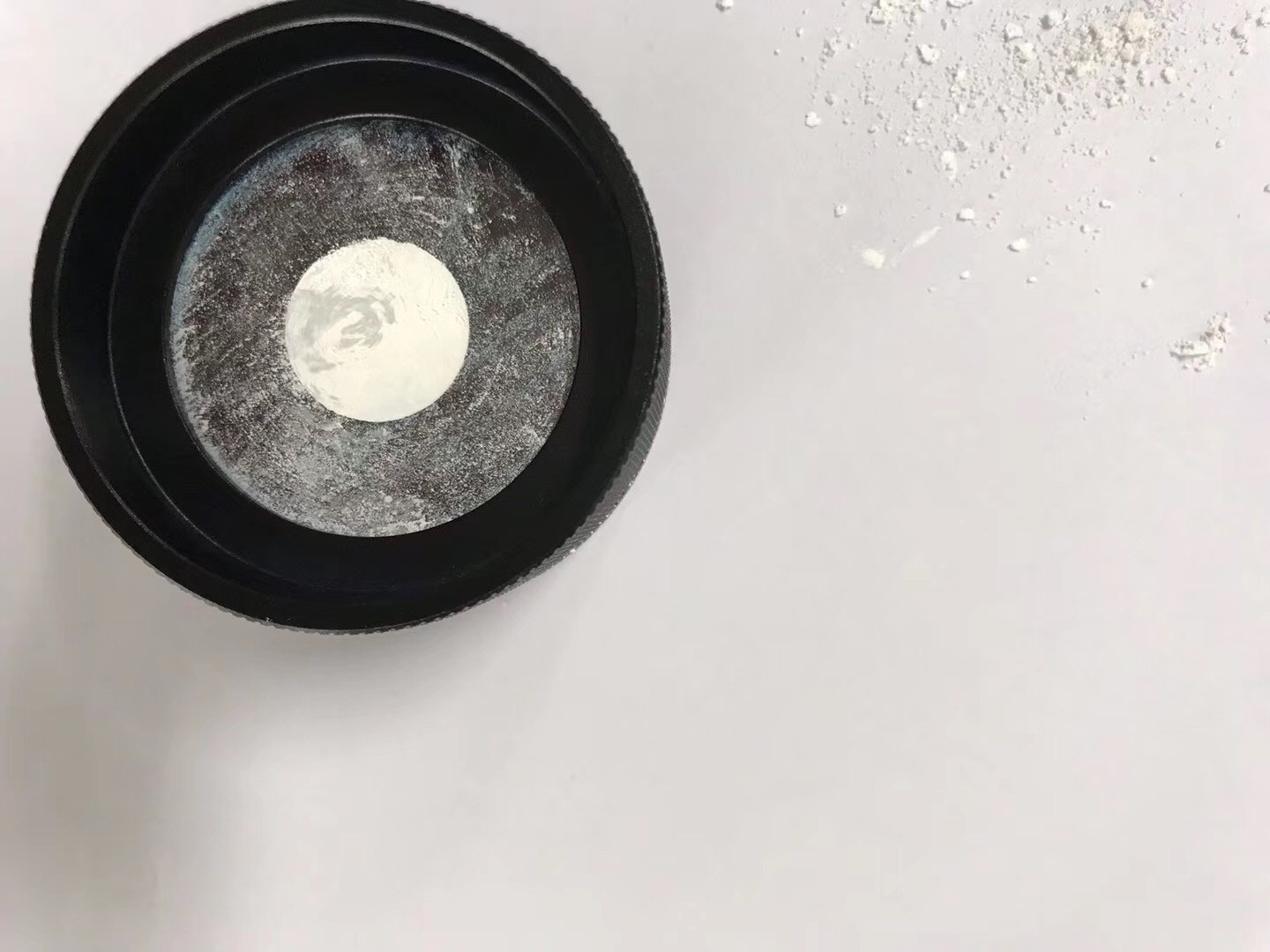

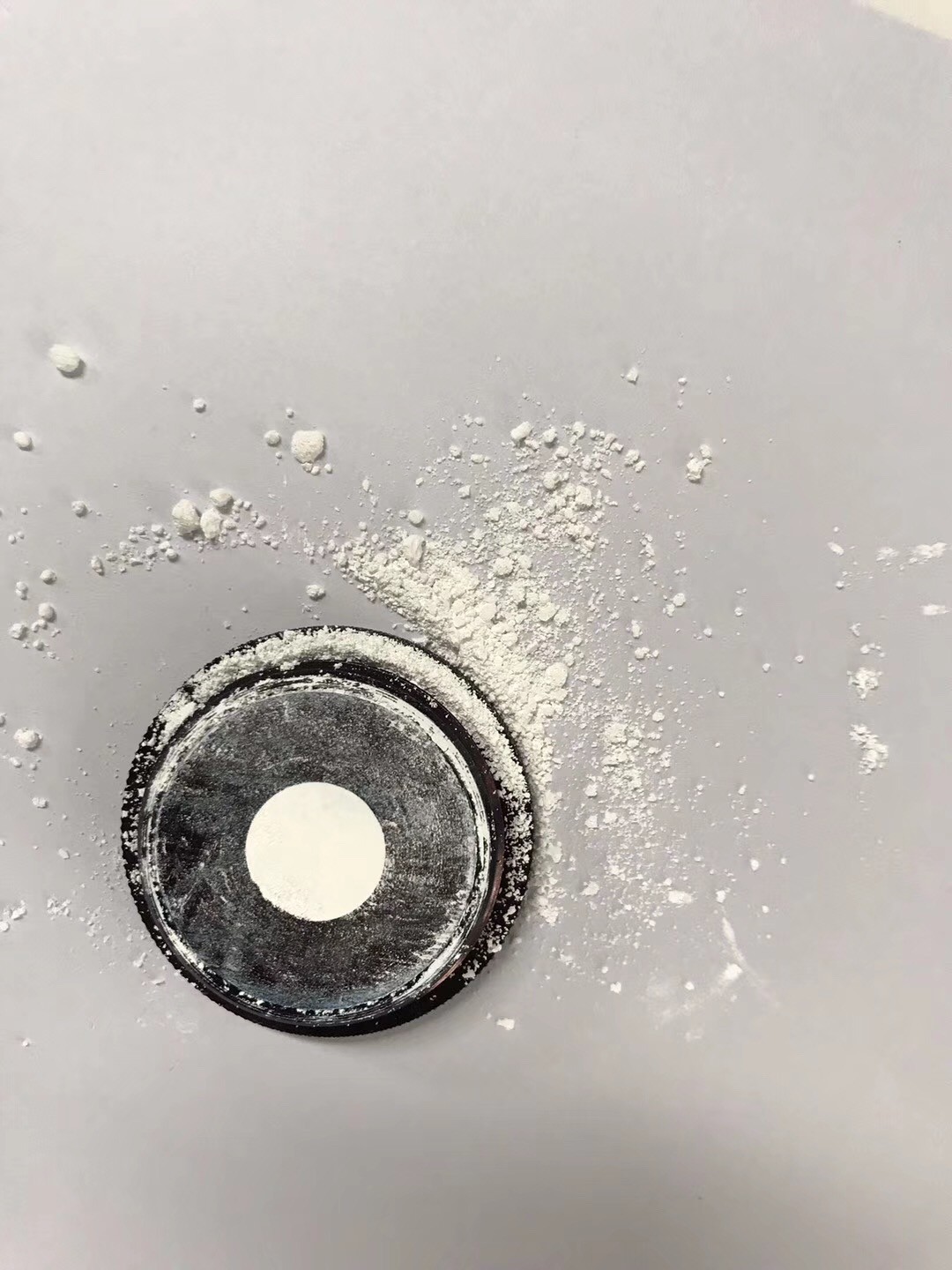

Optional Accessory Universal Test Components, Micro Printer, Powder Test Box



Application Industry

Nowadays, color management instruments, like spectrophotometers, colorimeters, have been widely applied to industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring instruments to teach and study.



Frequently Asked Questions

1. Does NR60CP colorimeter have any equivalent instruments in market?

Answer: Yes, NR60CP is equivalent to CR-10Plus of KONICA MINOLTA. They almost can achieve the same color difference values between any two targets.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.



Models Comparasion with Other brands



3nh Instrument Description Similar Models
YS6060 Spectrophotometer d/8°;d/0° CI7800,CM3600A
YS4560 Spectrophotometer 45°/0 BYK 6801,CM2500C
YS4510 Spectrophotometer 45°/0 CM2500C,CS600C
YD5050 Spectrophotometer 45°/0 Exact advance
YD5010 Spectrophotometer 45°/0 Exact basic, basic density meter
YS3060 Spectrophotometer d/8° X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d
YS3010 Spectrophotometer d/8° X-rite Ci60; MINOLTA CM-2300d
NS800 Spectrophotometer 45°/0 BYK 6801
NR60CP Colorimeter 8°/d MINOLTA CR-10 plus
NHG268 Gloss Meter 20°, 60°, 85° gloss BYK 4563
NHG60 Gloss Meter 60° gloss BYK 4561
T90-7 Light Cabinet 7 Illuminants X-rite SpectraLight QC
