3nh YG268 0.1GU Gloss Measurement Instruments FCC For Marble
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Angle | 20° 60° 85° | Measuring Area(mm) | 20°: 9×10, 60°:9x15, 85°: 5×38 |
|---|---|---|---|
| Measuring Range(GU) | 0~2000 | Division Value | 0.1GU |
| Tolerance | ±0.2, ±0.2% | Data Port | USB & Bluetooth |
| High Light | 0.1GU Gloss Measurement Instruments,3nh YG268 Gloss Measurement Instruments,FCC Marble Gloss Meter |
||
Product Description

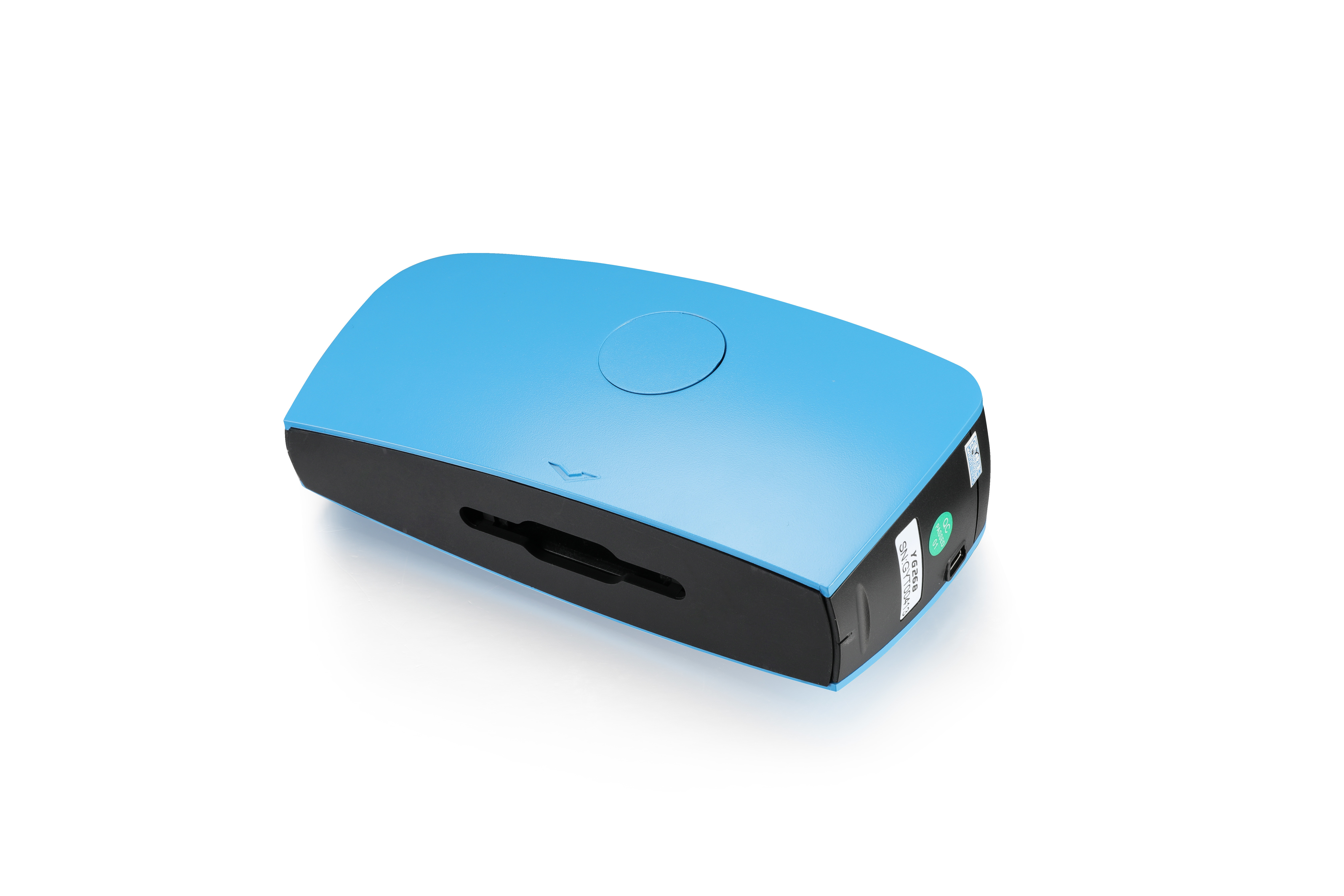

3nh YG268 Digital Three Angles Gloss Measurement Instruments Gloss Meter For Marble
Company Information
Shenzhen ThreeNH Technology Co., Ltd / Shenzhen Tilo Technology Co., Ltd . was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.
Product Description
| YG Series Specification Parameter | |||
| Model | YG60S 60°Economic Gloss Meter | YG60 60°Accurate Gloss Meter | YG268 Tri-angle Gloss Meter |
| Measuring Angle | 60° | 60° | 20° 60°85° |
| Measuring Area | 60°: 0-200GU | 60° | 20°: 0-2000GU,60°: 0-1000GU,85°: 0-160GU |
| Division Value | 1GU | 0.1GU | |
| Measuring Modes | Basic mode | Basic mode; Statistic mode; Continuous mode; QC mode | |
| Measuring Time | 0.5S | ||
| Repeatability | 0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU |
| Accurate | Conform with JJG696 second grade requirements of gloss meter | Conform with JJG696 first grade requirements of gloss meter | |
| Auto Power-off Time | 30s | Within 30s-120s | |
| Long-time Calibration | / | Automatically check and made the calibration | |
| Language | Chinese & English | ||
| Storage | / | 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) | |
| Display | 2.3 inch white and black screen | ||
| Size | 160*52*84mm | ||
| Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge | ||
| Weight | About 300g | ||
| Interface | USB | USB & Bluetooth 2.1 version | |
| PC Software | / | GQC6 QC software can printing testing report and with more extended functions | |
| Operation Temperature Range | 0-40℃(32-104° F) | ||
| Storage Temperature Range | -20-50℃(-4-122° F) | ||
| Humidity Range | < 85% RH, without condensation | ||
| Standard Accessories | User manual, calibration plate | USB cable, user manual, calibration plate, QC software | |
| Optional Accessories | Miniature printer | ||
| Notification: the technical parameter is only for reference | |||
Features
1.Elegant Design combined with aesthetics and ergonomics;
2.With auto-calibration function;
3.Meet the first grade requirements of JJG696;
4.Large storage to save over 35000 data;
5.Auto Power-off within optional 30-120 seconds;
6.Comply to ISO2813,ASTM523, GB/T9754;
7.With PC software for quality report, more extend functions;
8.With multi working modes and multi-functions for most customers’ requirements.
Certifications
3nh passed ISO 9001, CE, ROHS, FCC, TUV, SCM CERTIFICATES.
Packaging & Shipping
Shipping Detail:
| Package: | Alumnium alloy metal box or carton package. |
| Payment: | T/T, Western Union, Paypal , Credit Card |
| Lead Time: | 1-3 workdays |
| Shipping | DHL, Fedex, UPS, EMS,TNT, etc |
