Sineimage YE0224 HDTV Camera Lens Test Chart TUV AC220V
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Standard | ISO12233: 2014 | Category | Reflective |
---|---|---|---|
Ratio | 4:3/16:9 | Size | 1X,2X,4X |
Name | Camera Resolution Chart , Camera Lens Test Chart | ||
High Light | HDTV Camera Lens Test Chart,Reflective Camera Lens Test Chart,TUV Resolution Test Chart |
Product Description

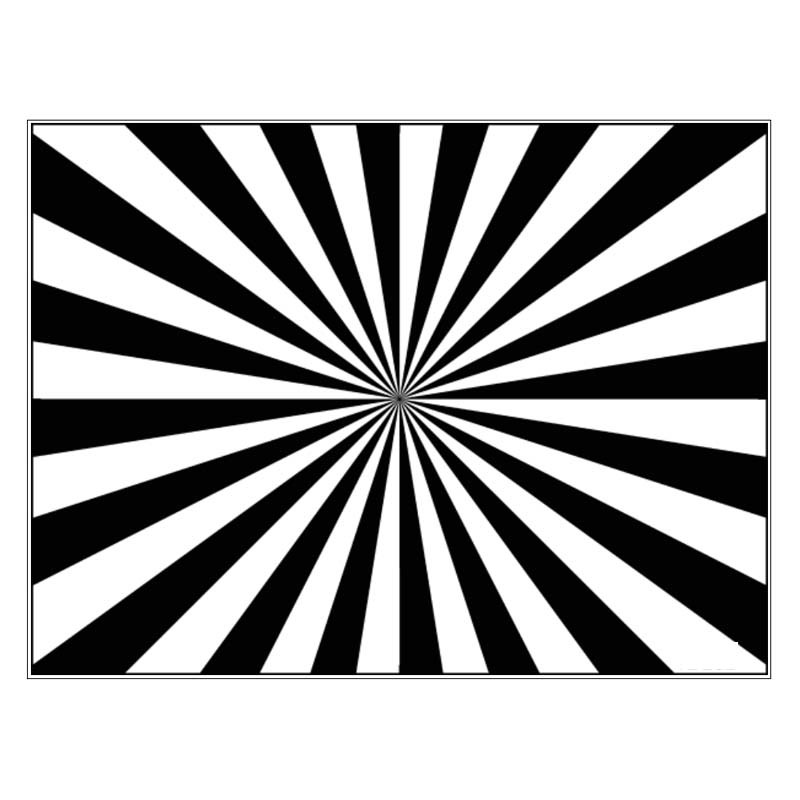

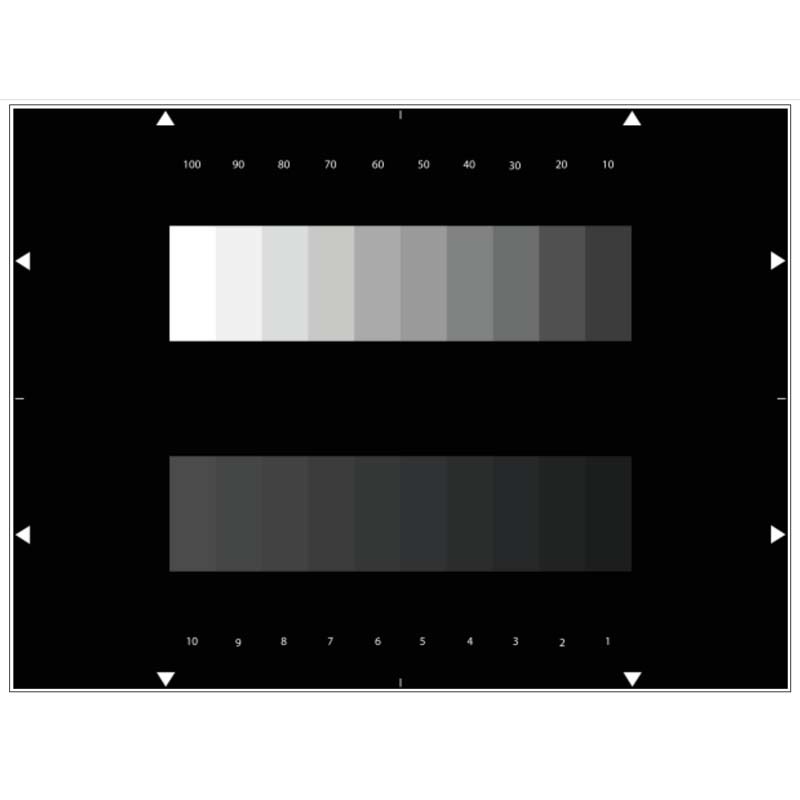

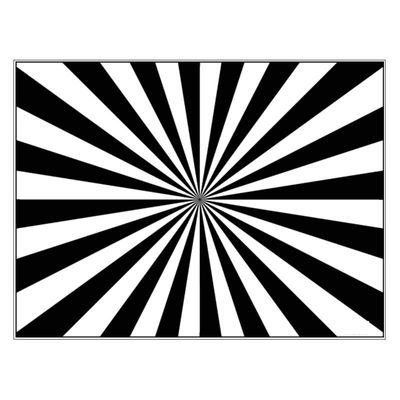

Sineimage YE0224 HDTV Resolution Test Chart
Brand: | Sine Image | Model: | YE0224 |
Size: | 280*210mm 240*180mm Can Be Customized |
Material: | HD photographic paper / Film |
Ratio: | 4:3 / 16:9 | Type: | Reflective/ Transmissive |
HDTV RESOLUTION TEST CHART 50-1000 CPH

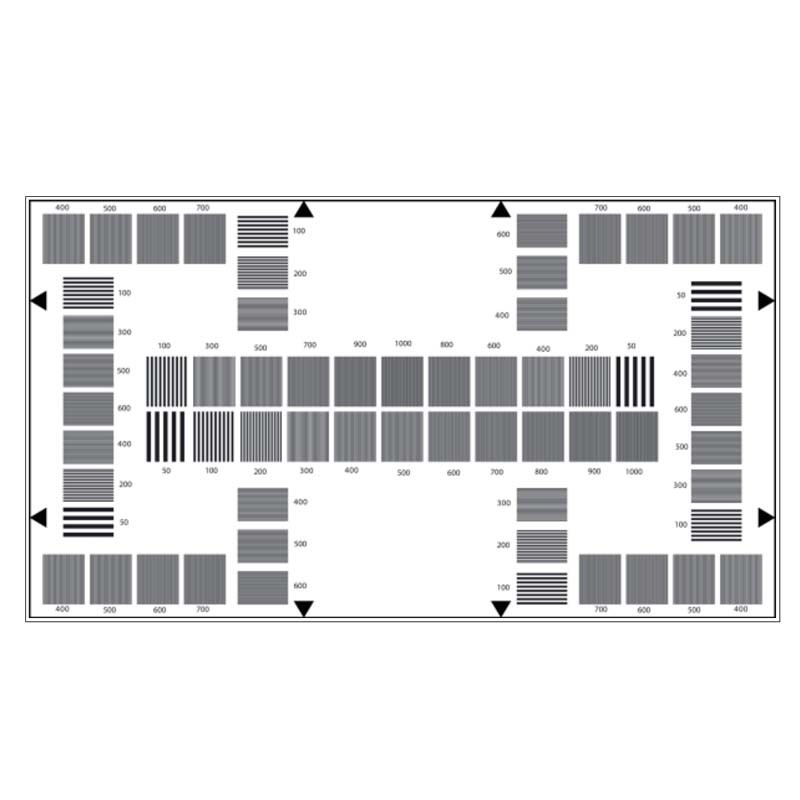

The YE0224 is designed to measure and describe the frequency response of an electronic HDTV camera.
The test chart consists of 50 multi burst fields, which are distributed over a 16:9 picture area. The fields are arranged in horizontal and vertical direction to measure resolution in both directions. All fields are designated with figures, which give the resolution in cycles per picture height. A cycle consists of on black an white TV line.
The test chart consists of 50 multi burst fields, which are distributed over a 16:9 picture area. The fields are arranged in horizontal and vertical direction to measure resolution in both directions. All fields are designated with figures, which give the resolution in cycles per picture height. A cycle consists of on black an white TV line.
The two rows in the middle are arranged differently. The upper row takes into account, that the highest resolution is in the middle of the picture. Therefore the 1000 cph field is in the middle and frequencies decrease to both sides.
In the lover row the frequencies increase from the 50cph on the left to the 1000 cph on the right. The row can be used to measure and describe the frequency response of the camera checked.
Model | CC5100/CC3100 |
Light source: | 5100K(5100K±200k) *4,3100K(3100K±200k) *4 |
Uniformity: | >95% |
Luminous Source: | 100 ~ 4400cd/m2 adjustable |
Illuminance: | 250 ~ 10000Lux adjustable |
Power supply: | AC230V 50/60HZ |
Lighting method: | High Frequency lighting method 20KHz |
Operating temperature: | 10~40℃ |
Operating humidity: | Below 80%(avoid dew) |
Major diameter dimension: | 38.5W*34H*15Dcm |
Luminance plane dimension: | 25W*19Hcm |

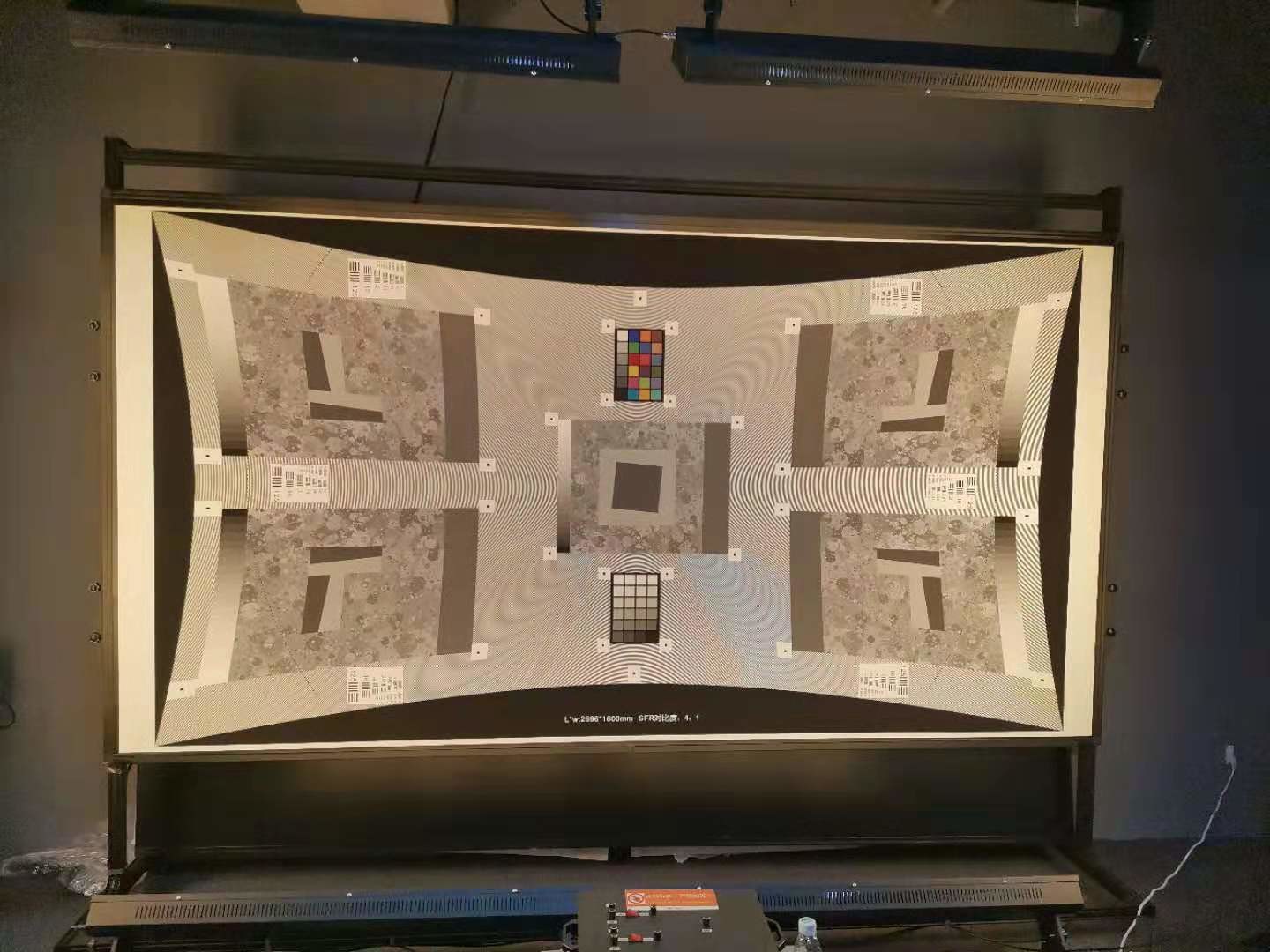

3nh standard camera color viewer transmission light box is to provide special lighting environment and high illumination uniformity, light continuous adjustable, etc functions. They are
suitable for 4:3 transmission test chart.
Reflective
Picture size WxH (mm) | ||
4:3 | 16:9 | |
A240 | 240x180 | 240*135 |
A280 | 280x210 | 280x157.5 |
Picture size WxH (mm) | ||
4:3 | 16:9 | |
D240 | 240x180 | 240*135 |
D280 | 280x210 | 280x157.5 |
D240 | D280 |
HC5100/HC3100 CC5100/CC3100 |
T259000 high illumination light box |
