FMCII SCI SCE Liquid Color Test Meter 3nh NH310 Colorimeter With Accessory

  • FMCII SCI SCE Liquid Color Test Meter 3nh NH310 Colorimeter With Accessory
  • FMCII SCI SCE Liquid Color Test Meter 3nh NH310 Colorimeter With Accessory
  • FMCII SCI SCE Liquid Color Test Meter 3nh NH310 Colorimeter With Accessory
  • FMCII SCI SCE Liquid Color Test Meter 3nh NH310 Colorimeter With Accessory
  • FMCII SCI SCE Liquid Color Test Meter 3nh NH310 Colorimeter With Accessory
Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RohS
Model Number NH310
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5kg, Alluminum Box
Delivery Time 2-5 work days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry 8°/d Measuring Aperture Φ8mm & Φ4mm
Repeatibility ΔE*≤0.06 Inter-instrument Agreement ΔE*≤0.4
Data Port USB Storage Capacity 100 Standards & 2000 Samples
High Light

FMCII Liquid Color Test Meter

,

SCE Liquid Color Test Meter

,

3nh NH310 Colorimeter
Leave a Message
Product Description

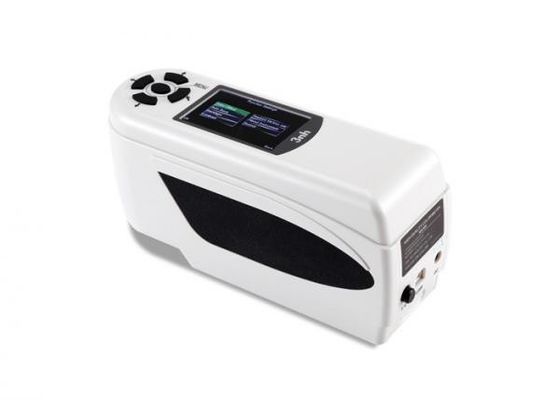

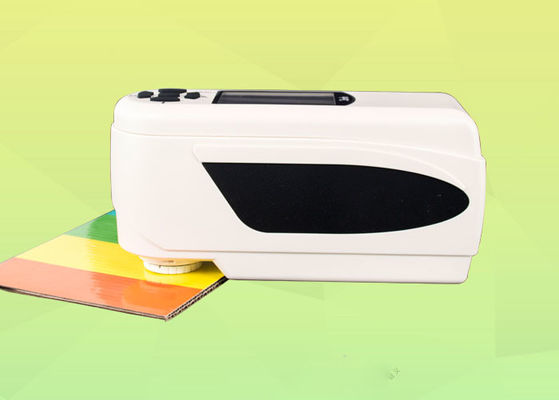

Portable 3nh NH310 colourimeter liquid color test meter with Accessory

1. Product Profile



NH310 portable colorimeter is a precise instrument for surface color measurement and control, which can be widely applied in all kinds of industries, such as plastics, metals, paint and coating, furniture, wood, ink, printing and packaging, pharmacy, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry.



In one word, NH310 portable colorimeter can be quite well applied in any place that requires color control or color management.



2. Detailed Technical Parameter / Specification Form



Technical Parameter Items NH310 Portable Colorimeter
Product Category Optical Electronic Color Measurement Instrument
Product Name Portable Color Difference Meter
Optical Geometry Reflectance: 8°/d
Measuring Apertures Two Apertures: ∅4mm + ∅8mm
Color Spaces CIE L*a*b, CIE XYZ, CIE L*C*h, CIE L*u*v, CIE RGB
Color Difference Formulas ΔE*Lab, ΔE*94, ΔE*LCh, ΔE(Hunter), ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*Luv, ΔE*2000, ISO, JPC79, BFD(1.5:1), FMCII
Repeatability Error ΔE*ab≤0.06
Inter-instrument Error ΔE*ab≤0.4
Other Colorimetric Index Yellowness, Whiteness, Color Fastness, Staining Fastness
Information Displayed Chromaticity Values, Color Difference Values, Pass/Fail Result, Color Offset/Deviation Direction
SCI/SCE SCI/SCE
Viewing Angle 10°
Illuminating Lamps LED Bule Light Excitation
Lamps Life-span 5 Years, more than 1.6 Million times of measurements.
Measurement Range L: 0 - 100
Illuminants D65, D50, A
Sensor Silicon Photoelectric Diode
Measurement Time 1 second
Data Storage Capacity 100 pcs of Standards, 20000 pcs of Samples.
Data Transmission Port USB
PC Terminal Software CQCS3 (for free)
Display Screen 2.8 inches TFT Display
Language Built-in English, Chinese
Power Supply Rechargeable Battery, Power Adapter
Battery Capacity More than 3000 times of measurements
Working Environment Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation)
Storage Environment Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation)
Standard Accessories White Calibration Board & Protective Cover, ∅8mm & ∅4mm Aperture, Power Adapter, USB Cable, PC Software CQCS3, Rechargeable Battery, User Manual.
Optional Accessories Mini Thermal Printer, Powder Test Box, Universal Test Component, ∅8mm Extended Aperture for Concave Surface.
Weight 500g
Dimension 205*70*100mm



3. Detailed Introduction to Instrument



3.1. High configuration of hardware: 2.8 inches TFT display, showing more comprehensive colorimetric indexes in one screen, making your operation more convenient and freer, checking color data very clearly.



3.2. Long life-span stable LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durablility which makes the instrument more stable and durable.






3.3. Pass/Fail test result indication, help you to decide if the color of the sample meets the requirement very promptly.



3.4. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.






3.5. The ∅8mm and ∅4mm measuring apertures, can better measure the colors of different kinds of targets from big ones and small ones.






3.6. All kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet all the requirements for color measurement and color analysis.



3.7. Include all kinds of light source types, meet all requirements of color control and management.












3.8. Two color measurement modes: Quality Mode and Average Mode, meet more color management situations.



3.9. Data management functions, you can search and check records, delete records, select standards.









3.10. Configured with a PC terminal software CQCS3, more extended powerful functions for color data management can definitely facilitate your color management work.






3.11. USB data port, implement data transmission more convenient and prompt.



3.12. Built-in camera for aiming at the target to be measured precisely, very effcient in measuring small spot colors.

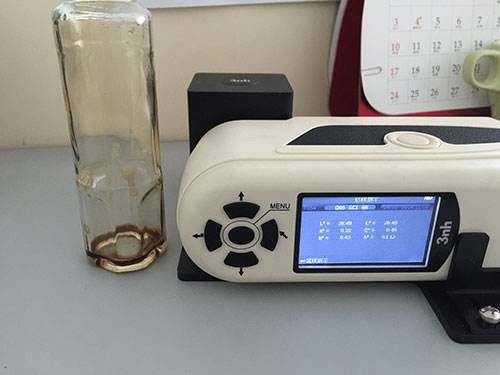

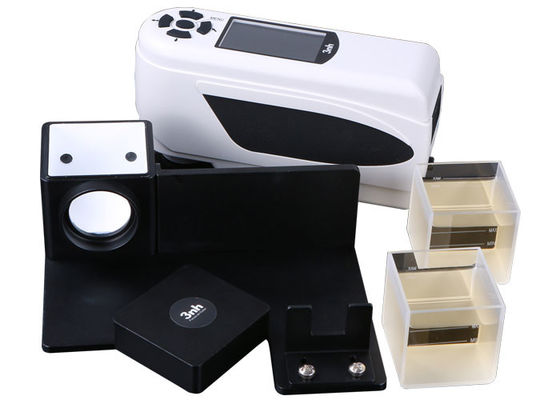

3.13. If configured with a Powder Test Box, it can measure the color of powders; if configured with a Universal Test Component, it can measure the color of powders, liquids and pastes.






4. Company Profile



NH310 was developed and manufactured independently by Shenzhen 3nh/ThreeNH Technology Co., LTD. which is a national high-tech company who has been specializing in researching and developing, manufacturing and marketing surface color measuring instruments and equipment, gloss measurement meters and also color matching light cabinets for over 22 years, since founded in 1998.



We will always warmly welcome customers, partners and friends to visit our company and factory in Shenzhen, China.






GW6A9235 1231.jpg





5. Frequently Asked Questions



1. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!



2. What's your main market?
Answer: We sell to the global market.



3. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.



4. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.



5. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
