8mm Aperture 3NH YH1000 Glass Haze Meter SCE SCI Equal To BYK Haze Meter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Optical Geometry | 0/d | SCE/SCI | SCE & SCI |
|---|---|---|---|
| UV Light Source | Yes | Repeatibility | ΔE*≤0.03 |
| Inter-instrument Agreement | ΔE*≤0.15 | Measuring Aperture | 8mm & 4mm |
| High Light | 8mm Aperture Glass Haze Meter,3NH YH1000 Glass Haze Meter,SCE SCI Haze Test Instrument |
||
Product Description
Product Description

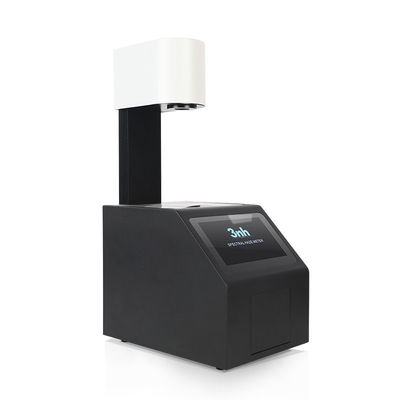

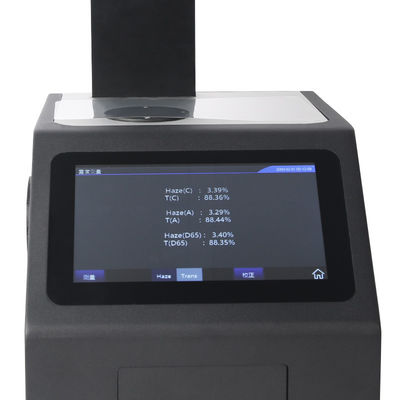

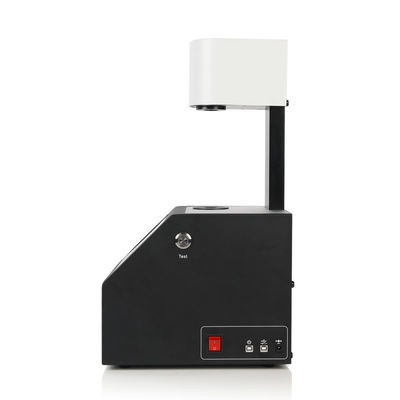

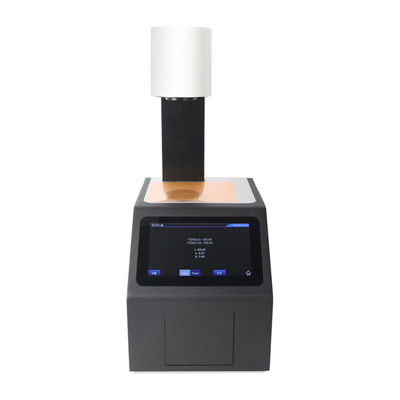

3NH Digital Glass Haze Meter Test Instrument YH1000 Equal To BYK haze meter
| Product Model | YH1000 Haze Meter |
| Optical Geometry | Transmittance:0/D(Parallel light illumination, diffuse viewing);Conform to the standards: ASTM D1003/1044,GB/T 2410,JJF 1303-2011,CIE 15.2,JIS K7105,JIS K7361,JIS K 7136 |
| Characteristic | The instrument can easily achieve ASTM D1003 non-compensation method, full light transmittance, haze test. Open measuring area for vertical and horizontal testing. In glass processing, plastic processing, film, screen processing, packaging and other industries are widely used in transmittance,haze detection. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 400nm to 700nm, combined LED light |
| Spectrophotometric Mode | / |
| Sensor | The PD array detector, satisfies CIE V(λ)2 degree visual response |
| Wavelength Range | / |
| Wavelength Interval | / |
| Semiband Width | / |
| Measurement range | 0~100% |
| Measuring Aperture | Φ20mm/Φ15mm/Φ8mm/Φ4mm(Select a single aperture) |
| Sample Size | Thickness<170mm |
| Color Space | / |
| Color Difference Formula | / |
| Other Colorimetric Index | Haze(ASTM D1003/1044),Transmittance T(ASTM) |
| Observer Angle | 2° |
| Illuminant | D65,A,C |
| Displayed Data | PASS/FAIL Result |
| Measuring Time | About1.5s |
| Resolution | 0.01unit |
| Repeatability | Φ20mm,within 0.15 (After preheating and calibration of the instrument, standard deviation values of standard haze tablets with a test haze of about 40 for 30 times were taken at intervals of 5s.) |
| Inter-instrument Error | Φ20mm,with 0.4 (After the instrument is preheated and calibrated, the standard deviation between the standard haze tablet and the reference value is tested at an interval of 5s.) |
| Dimension | L*W*H=290X211X511mm |
| Weight | About7.6kg |
| Power | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Print serial port |
| Data Storage | Standard 1000 pcs,sample 10000 pcs |
| Language | Simplified Chinese,Traditional Chinese,English |
| Operating Environment | 0~40℃(32~104°F) |
| Storage Environment | -20~50℃(-4~122°F) |
| Standard Accessory | Power Adapter, User Guide,Quality Management Software (download from the official website),USB cable,0% calibration box, measuring aperture. |
| Optional Accessory | Micro-printer,Test fixture, standard haze sheet, foot switch |
| Note: | The specifications are subject to change without notice. |
Product Advantages
Our Services
1.24 hours online to ensure quick response to customers' inquiry or online message;
2. Help customers to choose the best suitable machine model;
3. We support OEM and ODM service and 12 months warranty from the purchase date.
Company Information
Shenzhen ThreeNH Technology Co., Ltd / Shenzhen Tilo Technology Co., Ltd . was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.
