8/D Optical Nr60cp 3nh Colorimeter 8mm 4mm Apertures 2000 Samples
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOptical Geometry | 8°/d | Measuring Aperture | Φ8mm & Φ4mm |
---|---|---|---|
Repeatibility | ΔE*≤0.03 | Inter-instrument Agreement | ΔE*≤0.2 |
Data Port | USB | Storage Capacity | 100 Standards & 2000 Samples |
High Light | Nr60cp 3nh Colorimeter,8/D Optical 3nh Colorimeter,2000 Samples Color Difference Meter |
3nh nr60cp colorimeter color difference meter with both 8mm and 4mm apertures 8/d optical structure
NR60CP Make measurement easier
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.
Our Certificates:
ISO9001:2008; CE; FCC; ROHS; TUV.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
Brief Introduction :
NR60CP features high accuracy, powerful functions, and high cost-effective to repay the support and trust of our customers.
Application :
NR60CP colorimeter is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It not only can precisely measure many kind of color indexes in many color spaces, but also it is easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
Features :
- 8mm and 4mm double aperture for switch, easy to measure concave sample in large plane
- More stable and accuracy, Delta E ab<0.03
- Many color spaces, many color indexes, extensive applicability
- Double locating: illuminating locating and cross locating
- Equipped with rechargeable high-capacity li-ion battery
- Built-in white plate parameters, and configuration of physical whiteboard, easy to operate;
- New integrating sphere optical path design, more stable to measure;
- Double apertures measurement data can pass SCM metrological certification;
Specification :
Model | NR60CP |
Illuminating/Viewing Geometry | 8° / d; CI E No. 15,GB/ T 3978 |
Light Source | LED sources |
Sensor | Silicon photodiode array |
Measuring Aperture | Φ8mm large area end-face; Φ4mm small area concave-convex end-face |
Color Space | CI E L AB,XYZ,LCh,CI E RGB,CI E LUV |
Other Chromaticity Data | WI ( E313,CI E, AATCC,Hunt er ),YI ( D1925, 313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I |
Observer | CI E 10° |
Illuminant | D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12 |
Display Data | Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, |
Measurement Time | 0. 4s |
Repeatability | ΔE* ab 0. 03(Average of 30 measurement of standard white plate within 5s) |
Errors between each instrument | within Delta E*ab 0.2 |
Dimension | (L*W*H)205*67*80mm |
Weight | 500g |
Battery | rechargeable lithium-ion battery 3. 7V @ 3200mAh |
Lamp Life | 5 years, more than 1.6 million measurements |
Display Screen | TFT 2.8 inch(16: 9) |
Interface | USB/RS-232 |
Data Memory | 100 Standards, 20000 Samples |
Operating Temperature | 0~40℃(32~104°F) |
Storage temperature | -20~50℃(-4~122°F) |
Optional Accessory | miniature thermal printer, powder test box |

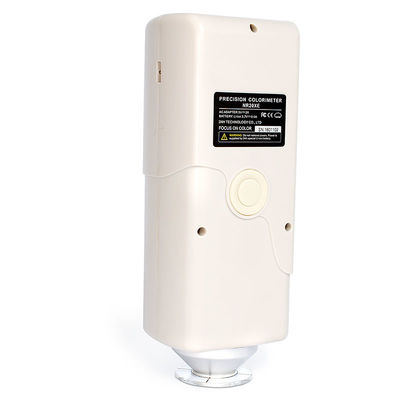

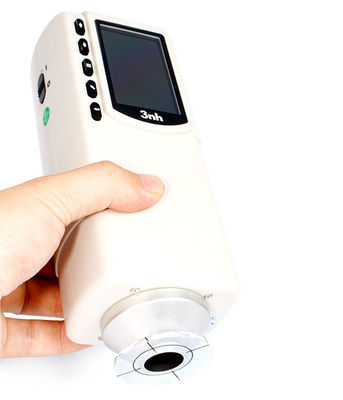

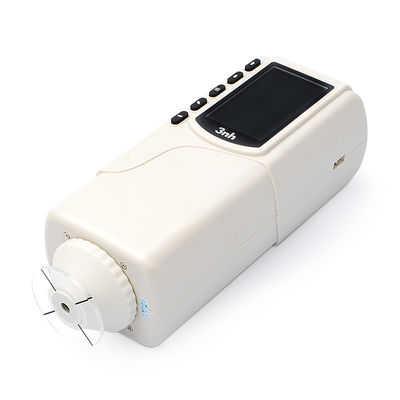

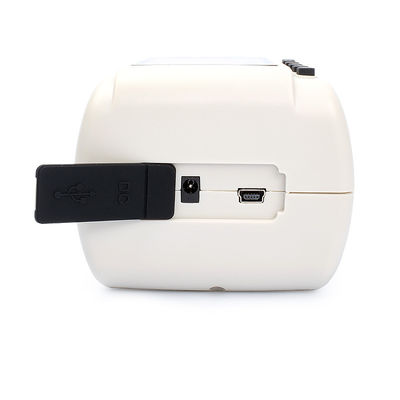

Product Image :
Customer confirmation :
Related Knowledge about Spectrophotometer:
Color Space
CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
