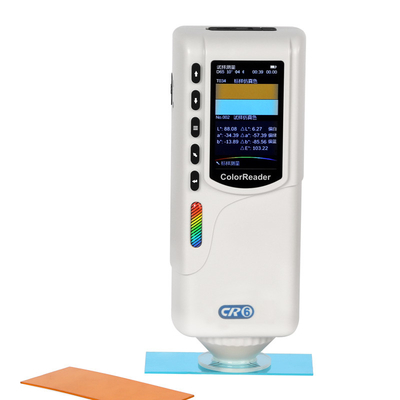

4mm Aperture Portable Colorimeter TUV Plane Grating 3nh Color Reader CR6

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RohS
Model Number CR6
Minimum Order Quantity 1 Unit
Price Discuss
Packaging Details 46*25*38cm, 4.5kg, Alluminum Box
Delivery Time 1-3 work days
Payment Terms T/T, L/C, Western Union
Supply Ability 1000 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Aperture Φ4mm Repeatability Within ΔE*ab 0.05
Illuminating/Viewing Geometry 8° / D Measuring Range L: 0 To 100
Illuminant Device LED Blue Light Excitation Storage 100 Pcs Standard Samples; 20000 Pcs Test Samples
Color Difference Formula ΔE*ab Measuring Conditions CIE 10° Standard Observer
High Light

4mm Aperture Portable Colorimeter

,

TUV Portable Colorimeter

,

Plane Grating 3nh Color Reader

Leave a Message
Product Description
Product Description

ColorReader CR6 (Industrial Enhanced Version) is the creative work of 3nh's core technical elites and joint well-known designers. It embodies the technical strength completed in a short time, the professionalism of high-intensity testing, and the traditional bloodline of innovation and excellence.

ColorReader CR6 (Industrial Enhanced Version) is an innovative tool for color measurement, reading, color card retrieval and color difference evaluation. It integrates powerful color recognition capabilities in a safe and portable body, and seamlessly connects with mobile phone devices through Bluetooth, which makes the traditional color measuring instrument glow with different application charm.



CR6 An User Friendly ColorReader

◆ The instrument itself has a data review function

◆ Automatic calibration at startup, no need for tedious instrument calibration; combination of professionalism and meticulousness, equipped with manual calibration function of black and white board. It is recommended that users do simple professional calibration by themselves from time to time to ensure that the instrument always works in a state where it can pass the metrology.

◆ The mini whiteboard is inserted into the instrument bag, and the whiteboard is separated from the instrument, which ensures the weather resistance, dirt resistance and wipeability of the whiteboard, and guarantees the standard baseline function of the whiteboard for a long time.

◆ Equipped with a tightly buckled dust-proof cover with a delicate touch and an environmentally friendly packaging cloth bag that can be easily carried by hand. Close the cover and power turns off. Easy to carry aroud, you can put it in your car, your bags, or just carry it. It's really conspicuous, safe and reliable.

◆ Long battery life, convenient USB port charging and power bank charging. It can measure thousands of times in the screen state of high brightness, and it can measure tens of thousands of times when the screen is turned off.

◆ The large screen of the instrument and the mobile phone software display have the simulation function of true color



Convenient Color Difference Measurement

◆ It can measure the color parameters of objects, such as L*a*b, L*C*H, RGB, Hex, etc. under D65 and other light sources

◆ ΔEab, ΔE00 color difference display, flexible setting of tolerance range prompt



Mobile Color Card Database

◆ You can use ColorReader to build a personal color database in the cloud

◆ There is no need to carry heavy color cards, you can use ColorReader to find similar colors in various color card databases anytime and anywhere

Function of Searching Popular Color

◆ Connect the mobile phone APP, measure the color, and search in the color card database

◆ Automatically match the latest popular colors (Besides traditional color cards, ColorReader will release and recommend fashionable international colors from time to time)

◆ ColorReader has only a slight difference between each instrument in the same series of products. The APP will automatically identify the instrument model and share the color database to ensure the good ecology of the instrument.

Model CR6
OpticalGeometry 8/D (8°illumination diffuse acceptance) SCI Comply with standard CIE No.15 GB/T 3978
Application Used for color difference quality control in plastic electronics paint and coating textile and garment printing and dyeing ceramics and other industries.
Find the color card through the mobile APP
IntegratingSphereSize 40mm
Light Source Device 360nm-780nm Combined LED Lamp
SpectroscopicMethod Plane-Grating
Sensor CMOS Sensor
SpectralRange 400~700nm
Measurement Aperture Φ4mm
Light-included Mode SCI
Color Spaces CIE LAB XYZ Yxy LCh CIE LUV s-RGB HunterLab βxy DIN Lab99
(Part of them are only implemented in APP)
Color difference formulas ΔE*ab ΔE*uv ΔE*94 ΔE*cmc(2:1) ΔE*cmc(1:1) ΔE*00 DINΔE99 ΔE(Hunter) (Part of them are only implemented in APP)
OtherColorimetricData WI(ASTM E313,CIE/ISOAATCCHunter) YI(ASTM D1925,ASTM 313) Mt(metamerism Index) Staining Fastness Color Fastness Color Strength Opacity 555 Index Munsell(C/2) Spectro Curve (Part of them are only implemented in APP)
Division Value 0.01
Observer 2°/10°
Illuminant D65 A C D50 D55 D75 F1 F2(CWF) F3 F4 F5 F6 F7(DLF) F8 F9 F10(TPL5) F11(TL84) F12(TL83/U30)
Displayed Data Chromaticity Values Color Difference Values Pass/Fail Result Color Simulation Color Offset
Measurement Time About 1.2s
Repeatability Chromaticity value: withinΔE*ab 0.05 (After calibration measure the average value of the whiteboard 30 times at 5s intervals)
Accuracy Pass the national metrology
MeasurementMethod Single measurement average measurement (2~99 times)
LocateMode Light Spot Positioning
Size 205X67X80mm
Weight About 500g
Battery Performance Rechargeable Li-ion battery 3.7V @ 3200mAh
Life Lamp More than 1.6 million measurements in 5 years
Screen TFT true color 2.8inch@(16:9)
Interface USB (charge only); Bluetooth 5.0 Button
Data storage 1000pcs standard samples 20000pcs samples storage can be extended through mobile APP
Data viewing APP supports massive search;
Device supports all data viewing
Languages Simplified Chinese English
Operating Environment Temperature: 0~40°C; Humidity: 0~85% (No Condensation) Altitude: less than 2000m
Storage Environment -20~50℃ 0~85%RH (no condensation)
Standard Accessories Power adapter manual MOBCCS APP software (download from official website Android platform) USB cable whiteboard box wrist strap Φ4mm flat aperture
Optional Accessories USB Micro PrinterPowder test box
Note Technical parameters are for reference only subject to actual product
