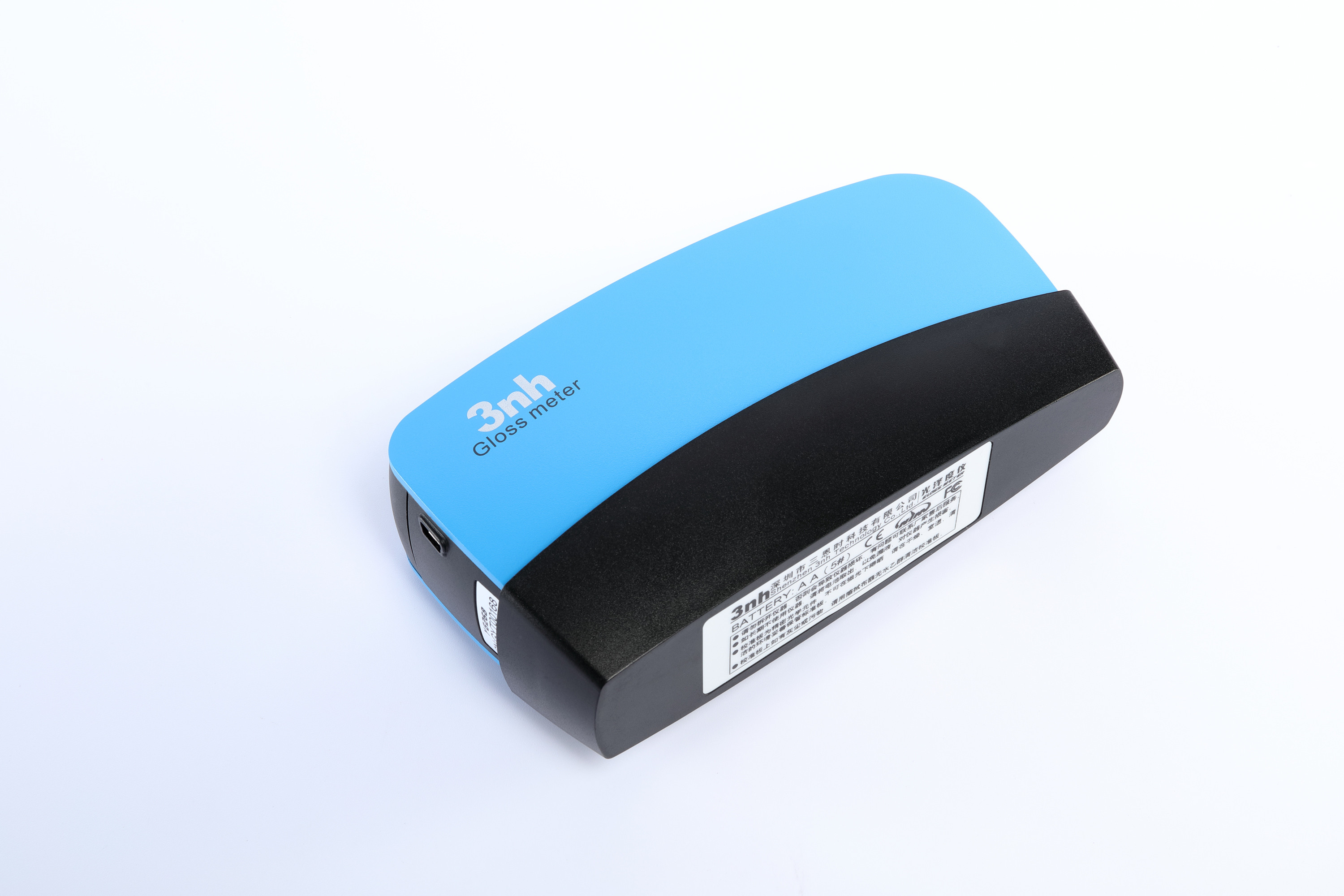

3nh Digital Gloss Meter For Paint 1000gu AA Battery Power Supply YG60
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Angle | 60° | Measuring Area(mm) | 60°:9x15mm |
|---|---|---|---|
| Measuring Range(GU) | 1000 Gu | Division Value | 0.1GU |
| Power Supply | AA Battery | Measuring Time | 0.1s |
| High Light | 0.1s Digital Gloss Meter,AA Battery Digital Gloss Meter,Digital 3nh Gloss Meter |
||
Product Description
1. Product Profile
YG60 gloss meter is a high-end precise single-angle smart gloss meter for surface glossiness measurement and management, which can be widely applied in all kinds of industries, such as plastics, metals, paint and coating, furniture, wood, ink, printing and packaging, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry.
In one word, YG60 single-angle gloss meter can be perfectly applied in any place that requires gloss measurement and control.
2. Detailed Technical Parameter / Specification Form
| Technical Parameter Items | YG60 Precise Single-angle Smart Gloss Meter |
| Product Category | Optical Electronic Gloss Measurement Instrument |
| Product Name | Gloss Meter, Glossmeter |
| Application | For the measurement of the surface glossiness of those products like plastics, metals, textiles, papers, wood, tiles, etc. |
| Optical Angles | One Angle: 60° |
| Measurement Area | 60°: 9×15mm |
| Measurement Range | 60°: 0~1000GU |
| Division Value | 0.1GU |
|
Measurement Range Repeatability |
0~100GU 100~1000GU ±0.2GU ±0.2% |
| Measurement Standard | Conform with JJG696 first class glossmeter working requirements |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Measuring Time | 0.1s |
| Display Screen | 2.3" Screen |
| Operation | by buttons |
| Measurement Modes | Four Measurement Modes: Basic Mode, Statistical Mode, Continuous Mode, Quality Mode. |
| Data Storage Capacity |
Basic Mode + Continuous Mode: 15000pcs. Statistical Mode: 10000pcs. Quality Mode: 10000pcs. |
| PC Software | GQC6 (for free) |
| Data Transferring Port | USB |
| Language Built-in | English, Chinese. |
| Power Supply |
1 pcs of NO. 5 dry Battery (more than 10000 times of measurements in 8 hours), Power Adapter |
| Working Environment | Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation) |
| Storage Environment | Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation) |

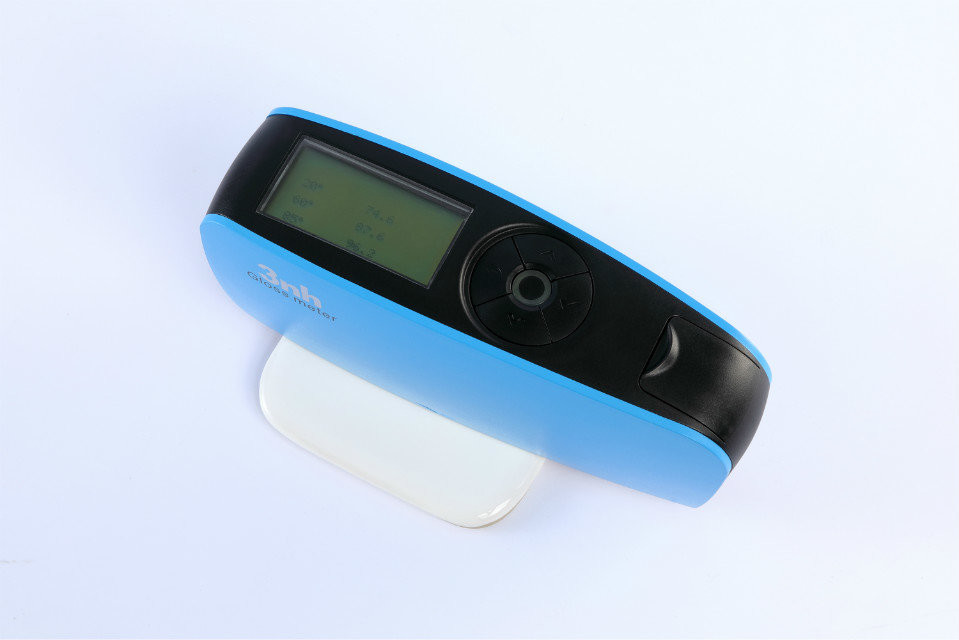

| Standard Accessories | Calibration Board, Power Adapter, USB Cable, PC Software GQC6, User Guide. |
| Optional Accessories | Mini Thermal Printer |
| Weight | 300g |
| Dimension | 160*52*84mm |
Detailed Introduction to Instrument
3.1. High configuration of hardware: 2.3 inches display.
3.2. Pressing key operation, makes your operation convenient.
3.3. Universal single angle gloss measurement: 60°.
3.4. Large measurement range from 0GU to 1000GU, can measure the glossiness of any targets from matt to very high gloss.
3.5. Four measurement modes: Basic Measurement Mode, Statistical Measurement Mode, Continuous Measurement Mode, Quality Measurement Mode. Perfectly suitable for different working situations.
3.6. Buttons operation, very easy to calibrate and do other system settings.
3.7. Configured with a PC terminal software GQC6, more extended powerful functions for color data management can definitely facilitate your gloss measurement work.
3.8. PC software GQC6
Frequently Asked Questions
1. Which models are the equivalent models to YG60 Gloss Meter?
Answer: Our YG60 gloss meter is equivalent to BYK4561 Gloss Meter.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
