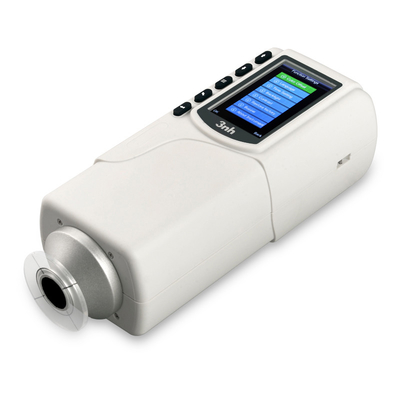

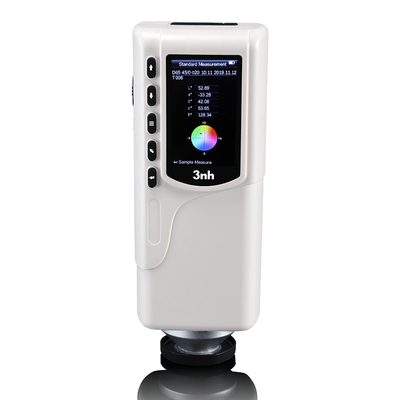

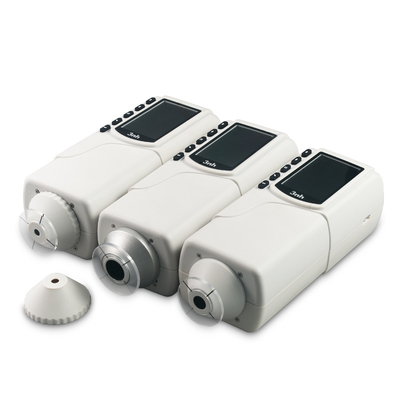

Large Aperture 45/0 Electronic Colour Measuring Instruments Professional 3nh Colorimeter

  • Large Aperture 45/0 Electronic Colour Measuring Instruments Professional 3nh Colorimeter
  • Large Aperture 45/0 Electronic Colour Measuring Instruments Professional 3nh Colorimeter
  • Large Aperture 45/0 Electronic Colour Measuring Instruments Professional 3nh Colorimeter
  • Large Aperture 45/0 Electronic Colour Measuring Instruments Professional 3nh Colorimeter
Place of Origin Guangdong China
Brand Name 3nh
Certification CE ROHS FCC ISO9001
Model Number NR20XE
Minimum Order Quantity 1pcs
Packaging Details instrument box size of packaging 435 x 205 x 345mm
Delivery Time 2-3 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Color Spectrophotometer,colorimeter Instrument Application Paint Used Spectrophotometer,Textile,spectrophotometer
Wavelength Range 400-700nm,360nm~780nm Observer 2°/10°
Sample Order Yes Delivery Day 1 Working Days After Payment
Power Electronic Wavelength Pitch 10nm
Illuminating/viewing Geometry 45°/0
High Light

10nm colour measuring instruments

,

CQCS3 Software colour measuring instruments

,

textile 3nh Colorimeter
Leave a Message
Product Description

Difference between NR20XE and Ordinary Portable Colorimeter

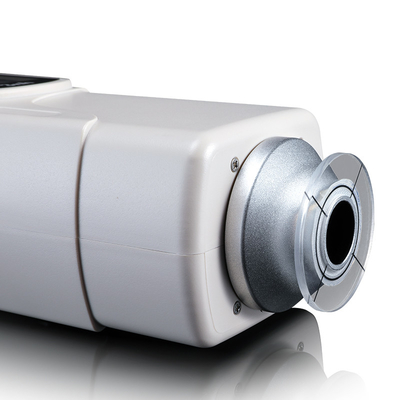

When testing products such as meat by ordinary colorimeter, the whole instrument body has to be placed in the object which not only stains the instrument, but also will let the liquid/water enter the instrument directly and bring cross contamination. However, NR20XE is a vertical structure. When measuring, it can make sure only the aperture touches the object which will not stain the instrument body.

Large Aperture 45/0 Electronic Colour Measuring Instruments Professional 3nh Colorimeter 0

QC Department

NR20XE can meet quality control requirements in plastic (PET,PE,PP,PTA,ABS,EVA particles and powder), color steel plate, coating, textile, fluorescent material, denim, medicine and food industries, etc. It can help to control product color difference, improve product competitiveness, reduce enterprises’ loss and control production cost.

Applications

Food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.
Large Aperture 45/0 Electronic Colour Measuring Instruments Professional 3nh Colorimeter 1

Technical Specifications

3nh
NR20XE Precision Colorimeter
Illuminating/Viewing Geometry
45°/0°
Measuring Aperture
Φ20mm
Special Function
Especially suitable for testing surface stripe and wet products
Locating
Illumination Locating/Cross Locating
Detector
Silicon photoelectric diode
Locating
Illuminating Locating/Cross Locating
Color Space
CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ
Color Difference Formula
△E*ab; △L*a*b*; △E*C*h*
Light Source
D65
Light Source Device
LED blue light excitation
Errors Between Each
Equipment
≤0.50ΔE*ab
Storage
100pcs standards 20000pcs samples
Repeatability
Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
Weight
500g
Dimension
205×67×80 mm
Power source
Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life
5 years, more than 1.6 million measurements
Charging Time
First charging time is 8 hours--100% electricity
PC Software
CQCS3 Software
Printer (optional)
Miniature thermal printer
