Professional Supplier YD5010 3nh Spectrophotometer Factory Color Spectrophotometer

  • Professional Supplier YD5010 3nh Spectrophotometer Factory Color Spectrophotometer
  • Professional Supplier YD5010 3nh Spectrophotometer Factory Color Spectrophotometer
  • Professional Supplier YD5010 3nh Spectrophotometer Factory Color Spectrophotometer
Place of Origin Guangdong China
Brand Name 3nh
Certification CE ROHS FCC ISO9001
Model Number YD5010 Plus
Minimum Order Quantity 1pcs
Packaging Details instrument box size of packaging 435 x 205 x 345mm
Delivery Time 2-3 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Color Spectrophotometer,colorimeter Instrument Application Paint Used Spectrophotometer,Textile,spectrophotometer
Wavelength Range 400-700nm,360nm~780nm Observer 2°/10°
Sample Order Yes Delivery Day 1 Working Days After Payment
Power Electronic Wavelength Pitch 10nm
Illuminating/viewing Geometry 45/0
High Light

Professional Supplier Color Spectrophotometer

,

3nh Spectrophotometer Factory

,

10nm Color Spectrophotometer
Leave a Message
Product Description

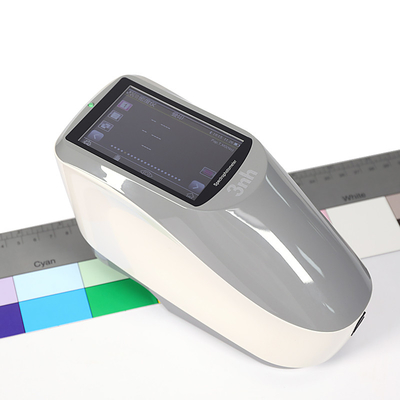

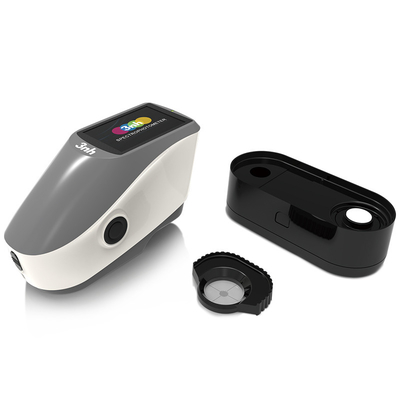

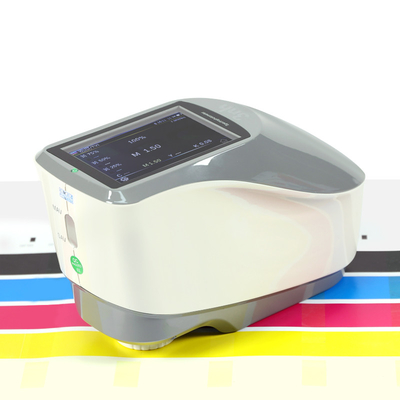

Spectrodensitometer YD5010 plus



3nh launched new model YD5010 Plus Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm,Φ4mm,Φ8mm.



Under the 45/0 geometric optical illumination and the testing conditions of M O, M 1,M 2 , M 3 stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.



Professional Supplier YD5010 3nh Spectrophotometer Factory Color Spectrophotometer 0

Product Features



1.Perfect combination of the beautiful appearance and the ergonomic structure design;

2.Combined LED light sources with long life and low power consumption, including UV light;

3.Optional apertures: Φ2/4/8mm, adapt to more samples;

4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

5.High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.；

6.Two standard observer angles: 2/10, multiple light source modes and color systems;

7.USB mode is widely useful;

8.Large-capacity storage space, over 10,000 test data;

9.Especially suitable for process control and quality control of printing plants;

10. PC software has powerful function expansion.

Professional Supplier YD5010 3nh Spectrophotometer Factory Color Spectrophotometer 1

Model YD5010 Plus
Measurement Geometry 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
Features Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light Source Combined LED Light, UV Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Measurement Conditions Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Density Standards ISO Status A, E, I, T
Density index Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level
Measurement aperture Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional
Color Spaces CIE LAB,XYZ,Yxy,LCh
Color Difference Formula ΔE*ab,ΔE*94,ΔE*00
Other Colorimetric Index /
Observer Angle 2°/10°
Illuminants A,C,D50,D55,D65,D75,F2,F7,F11,F12
Measurement Time About 1.5s
Repeatability Density: Within 0.01 D
  Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3
Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB,
Data memory 10000 pcs
Language
Simplified Chinese, English, Traditional Chinese
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation))
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate
Optional Accessory Micro Printer
Notes: The specifications are subject to change without notice.
